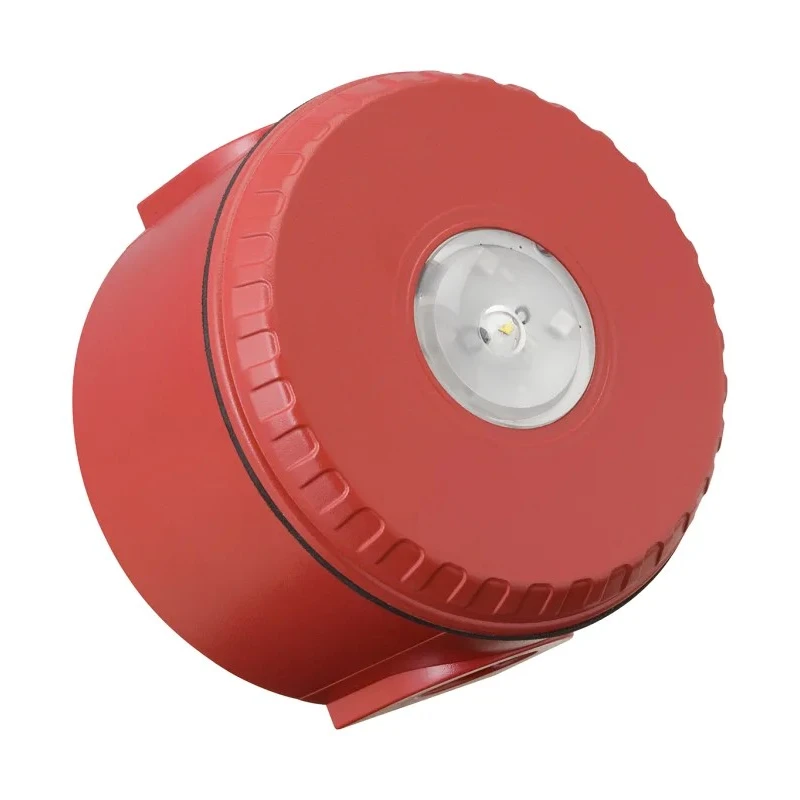

Eaton Solista LX Ceiling Series Red Beacon 60V DC Flashing LED Bulb IP65 IP33C 812023FULL-0260X
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Eaton |
| Height | 65mm |
| Model | 812023FULL-0260X |
| IP Rating | IP65, IP33C |
| Mount Type | Ceiling |
| Housing Material | ABS |
| Bulb Type | LED |
| Series | Solista LX Ceiling |
| Maximum Operating Temperature | 70°C |
| Current Type | DC |
| Current consumption | 25mA |
| Minimum Operating Temperature | -25°C |
| Base Diameter | 90mm |
| Lens Colour | Red |
| Standards/Approvals | EN 54-23 |
| Maximum Supply Voltage | 60V dc |
| Housing Colour | White |
| Light Effect | Flashing |
Key Features
- The beacon emits a flashing light effect enhanced by a unique lens design for cylindrical light distribution.
- It operates on ultra-low current consumption of 25mA for energy-efficient signaling.
- The unit has a base diameter of 90mm and a height of 65mm, making it compact and suitable for ceiling installations.
- Designed to function within a wide temperature range from -25°C to 70°C, suitable for various environments.
- The housing is made of durable ABS material with a white finish, ensuring longevity and aesthetic compatibility.
- The beacon complies with the EN 54-23 standard, ensuring appropriate illumination performance for safety applications.

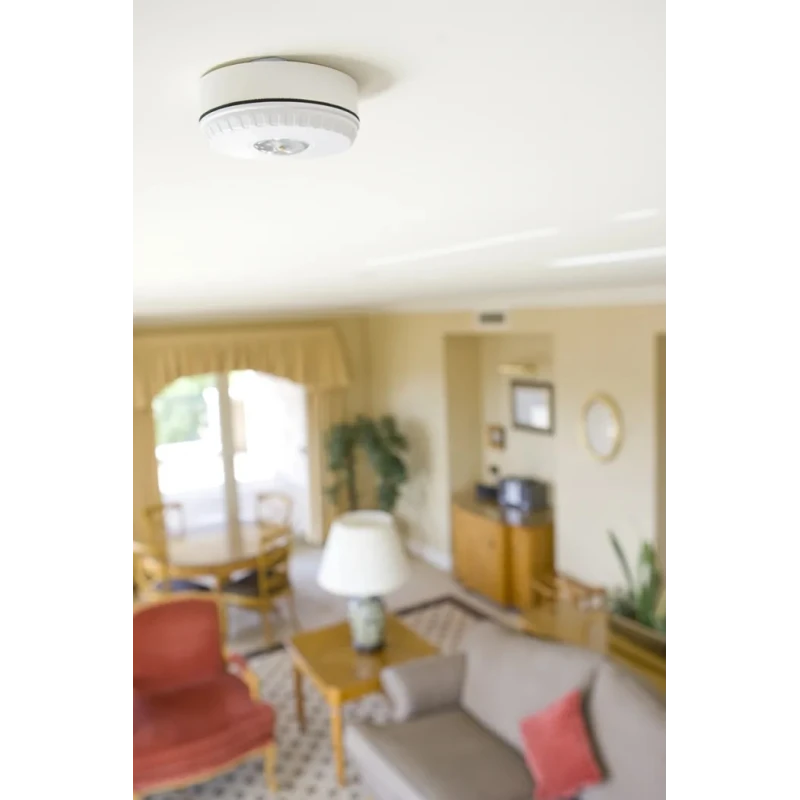

- The device is suitable for bedrooms, bathrooms, toilets, and can be integrated with fire alarm systems.
- It features switchable flash rate at 0.5Hz and provides up to 7.5m coverage for effective visibility.
Product Description
Eaton 812023FULL-0260X Solista LX Ceiling Series Red Beacon is a high-quality flashing beacon designed for ceiling mount installations, operating at 60V DC with a red LED bulb. It offers reliable signaling in industrial, commercial, and residential environments where safe and clear visual alerts are critical. With an IP65 and IP33C ingress protection rating, the beacon is robust against dust and water, suitable for indoor and protected outdoor areas.
The beacon's unique lens design distributes light cylindrically, increasing the visibility area up to 7.5 meters, making it ideal for alerting within bedrooms, bathrooms, toilets, and similar rooms. It has ultra-low current consumption of just 25mA, reducing energy costs and enabling longer operational life when powered from DC sources. The device supports a switchable flash rate of 0.5Hz, offering flexibility depending on application requirements.
Constructed with ABS housing material in white color, this beacon combines durability with an unobtrusive appearance. It meets EN 54-23 standard for illumination requirements, ensuring compliance for fire safety and alarm signaling systems. Operating temperature ranges from -25ºC to +70ºC, the unit is capable of reliable performance across diverse climatic conditions.

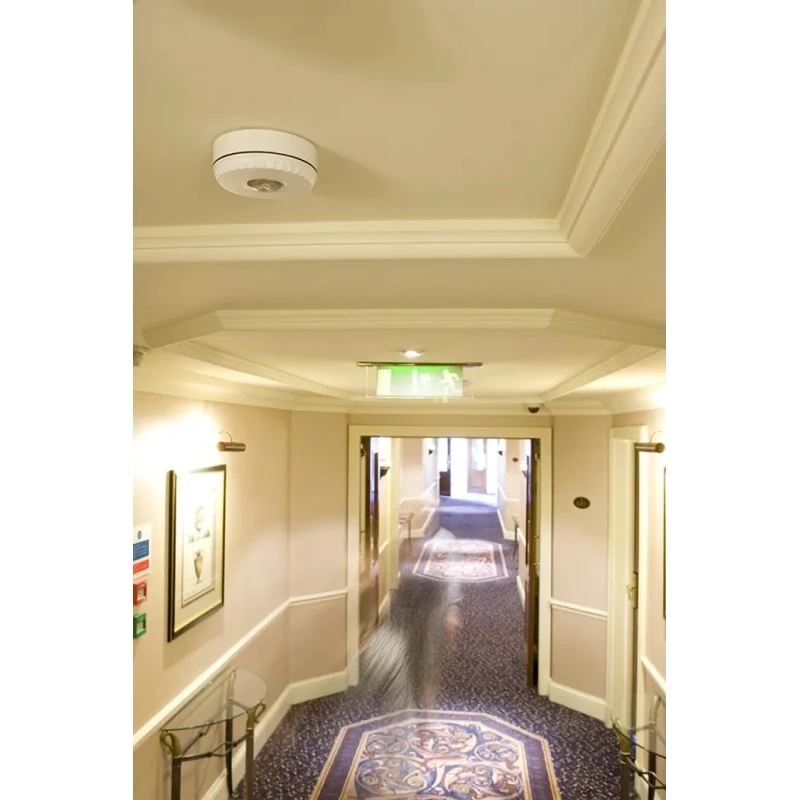

The product includes the lamp, reducing setup time and ensuring compatibility. Eaton, formerly known as Fulleon, is renowned for quality industrial signaling products, trusted globally in automation, manufacturing, and building safety applications. This beacon is specifically suited for apartments, offices, and industrial zones needing visual alerts integrated with fire alarms or other safety signaling systems.
The beacon emits a flashing red light for effective visual signaling. Low 25mA current consumption supports energy efficiency. Compact dimensions: 90mm base diameter, 65mm height optimize ceiling space usage. Durable ABS white housing for long-term, attractive installation.
Conforms to EN 54-23 standard for fire safety illumination. IP65 and IP33C rated for resistance against dust and water ingress. Operating temperature range from -25°C to 70°C for diverse environments. Switchable flash rate at 0.5Hz enhances visibility options.
Includes LED bulb for immediate use upon installation. Explore more high-quality signaling and automation products by Eaton available in the Electronics & Electricals category at EnvMart.
Explore more products in our Automation Signalling Beacon category.
