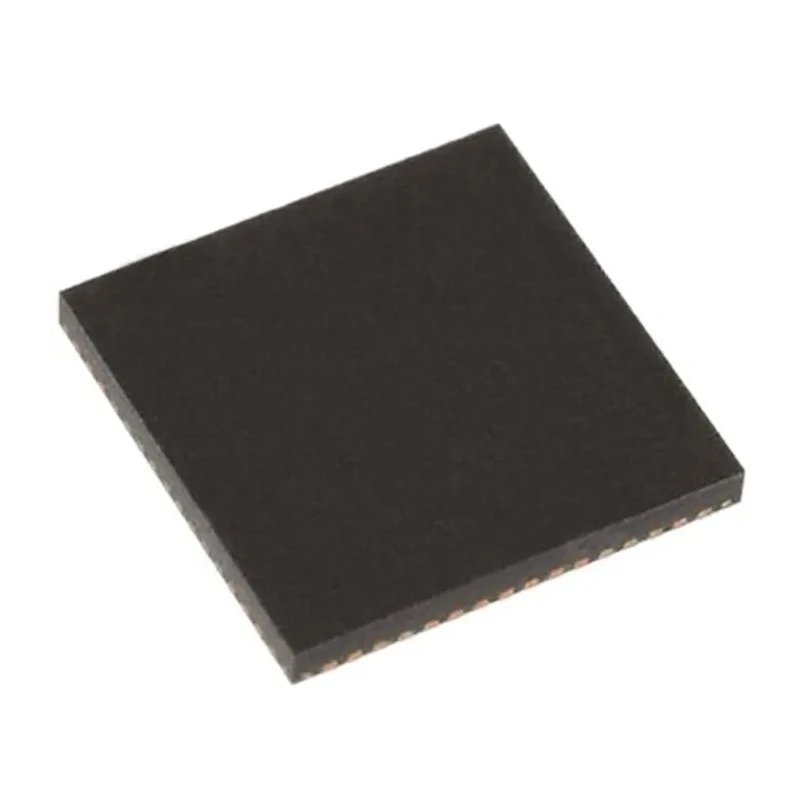

Microchip 64-Pin QFN Controller IC 1.8 V to 3.3 V 100 Mbps Full Duplex/Half Duplex LAN9512I-JZX

Free Delivery in India | Lowest Global Shipping Charges

Microchip 64-Pin QFN Controller IC 1.8 V to 3.3 V 100 Mbps Full Duplex/Half Duplex LAN9512I-JZX

Name: Microchip 64-Pin QFN Controller IC 1.8 V to 3.3 V 100 Mbps Full Duplex/Half Duplex LAN9512I-JZX
Brand: Microchip
SKU: 378168
Price: 11.64 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1mm
Length	9mm
Model	LAN9512I-JZX
Width	9mm
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Communication Mode	Full Duplex/Half Duplex
Pin Count	64
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.8V
Supply Current	74mA
Maximum Data Rate	100Mbps
Loopback Mode	Internal
Standard Supported	IEEE 802.3, IEEE 802.3u

Key Features

The controller supports IEEE 802.3 and IEEE 802.3u standards.
It features internal loopback mode for self-testing.
Surface mount type suitable for compact PCB designs.
Compact dimensions of 9 mm length, 9 mm width, and 1 mm height.
Operates reliably between -40°C to 85°C temperature range.
Supply current is rated at 74 mA ensuring efficient power usage.
Designed without automotive standard compliance.
Ideal for 10/100 Ethernet controller applications and USB 2.0 hub integration.

Product Description

Microchip LAN9512I-JZX is a 64-pin QFN controller IC designed for Ethernet interface applications supporting 1.8 V minimum and 3.3 V maximum supply voltages with a maximum data rate of 100 Mbps. It supports both full duplex and half duplex communication modes, making it versatile for various network environments.

This controller IC adheres to IEEE 802.3 and IEEE 802.3u standards, ensuring compatibility with current Ethernet protocols. It incorporates an internal loopback mode to facilitate system diagnostics and testing.

The QFN surface mount configuration aids in reducing the PCB space required, with compact dimensions of 9 mm by 9 mm and a height of only 1 mm. This package is designed to withstand operating temperatures ranging from -40°C to 85°C, suitable for industrial-grade applications.

With a supply current of 74 mA, this IC maintains efficient power consumption, enhancing overall system efficiency. It does not comply with automotive standards but is optimized for USB 2.0 hub and 10/100 Ethernet controller functionalities, providing reliable and efficient network control.

The LAN9512I-JZX is a key component in communication systems requiring robust and compact Ethernet controller ICs, ideal for use in industrial, commercial, and electronic device manufacturing applications requiring reliable network interfaces.

The controller supports IEEE 802.3 and IEEE 802.3u standards. It features internal loopback mode for self-testing. Surface mount type suitable for compact PCB designs. Compact dimensions of 9 mm length, 9 mm width, and 1 mm height.

Operates reliably between -40°C to 85°C temperature range. Supply current is rated at 74 mA ensuring efficient power usage. Designed without automotive standard compliance. Ideal for 10/100 Ethernet controller applications and USB 2.0 hub integration.

Explore our broad selection of semiconductor controllers and interface ICs at EnvMart to find the perfect fit for your electronic design projects.
