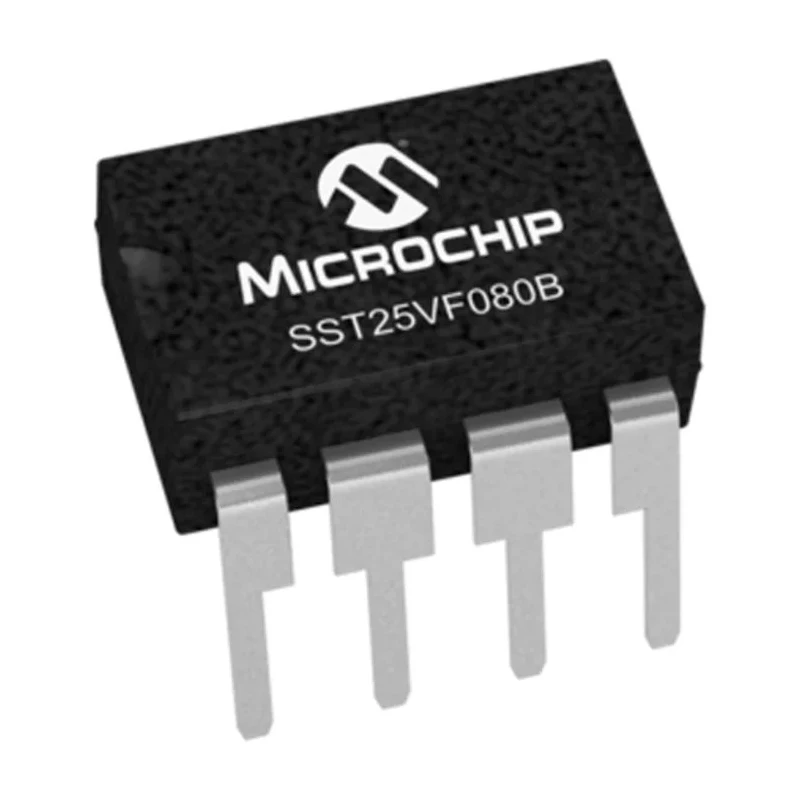

Microchip Split Gate 8 MB SPI Flash Memory 8-Pin PDIP SST25VF080B-50-4C-PAE

Microchip SST25VF080B-50-4C-PAE Split Gate 8 MB SPI Flash Memory in an 8-pin PDIP package provides robust non-volatile storage with reliable split gate cell architecture. It supports SPI interface communication ensuring fast data transfer speeds with a maximum clock frequency of 50 MHz. Designed for through-hole mounting, its compact size with dimensions approximately 10.16 mm in length, 4.95 mm in height, and 177.8 mm in width makes it suitable for varied PCB layouts.

This Flash Memory operates stably across a supply voltage range of 2.7 V to 3.6 V, making it compatible with various power sources while maintaining low supply current consumption of 15 mA. It supports synchronous timing with a maximum random access time of 5 ns, contributing to efficient read/write operations. The device functions reliably within industrial-grade operating temperatures from 0°C to 70°C.

The memory capacity is 8 MB, organized as 1M x 8 bits with 8 bits per word, which suits multiple embedded system applications requiring reliable code and data storage. Its split gate cell type enhances endurance and data retention characteristics, making it suitable for long-term applications. The product does not carry specific automotive standards but is well suited for industrial, consumer electronics, and embedded system applications.

Package type PDIP 8-pin allows for easy integration into through-hole PCB designs. The device is part of the SST25VF080B series, reflecting consistent performance within this family. This Flash Memory chip is ideal for applications in electronics manufacturing, prototyping, testing, and embedded designs.

Offers 8 MB memory capacity for embedded systems. Supports SPI interface with a maximum clock frequency of 50 MHz. Utilizes an 8-pin PDIP package suitable for through-hole mounting. Operates with supply voltages between 2.7 V and 3.6 V.

Ensures synchronous timing with a maximum random access time of 5 ns. Functions reliably within 0°C to 70°C operating temperature range. Featuring split gate cell technology for improved endurance and retention. Has a supply current of 15 mA ensuring low power consumption.

Memory organization of 1M x 8 bit and 8 bits per word structure. Dimensions of approximately 10.16 mm length and 4.95 mm height. Explore additional Microchip Flash Memory and semiconductor solutions through EnvMart's industrial catalog for electronics development and manufacturing needs.
