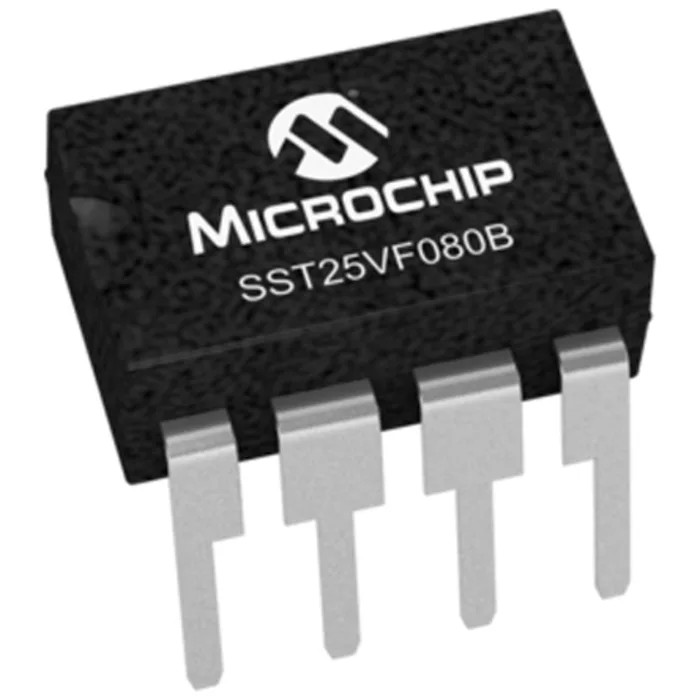

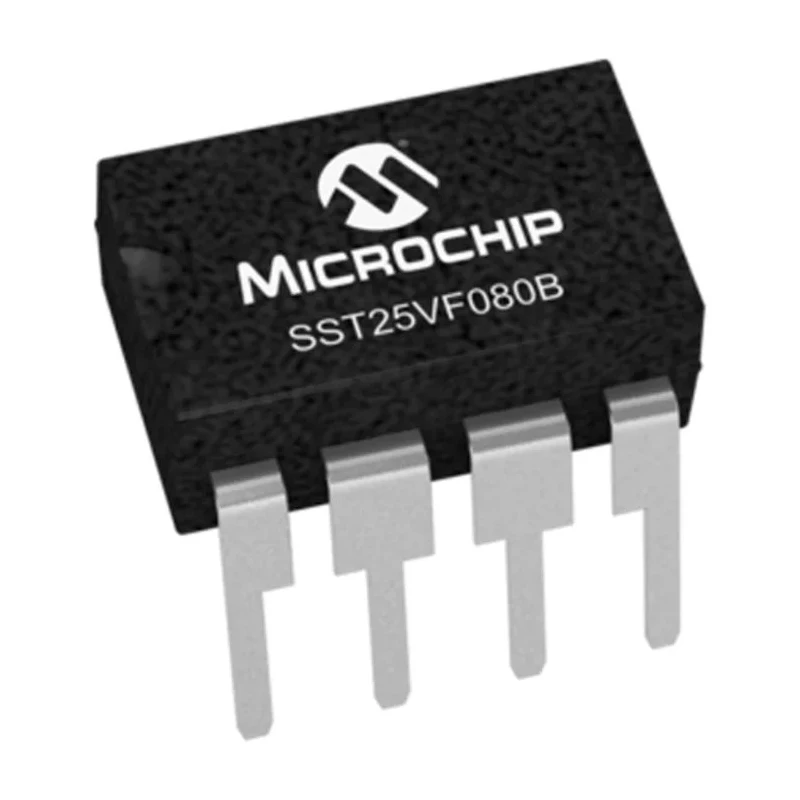

Microchip Split Gate 8 MB SPI Flash Memory 8-Pin PDIP SST25VF080B-50-4C-PAE

Microchip SST25VF080B-50-4C-PAE is an 8 MB Split Gate SPI Flash Memory device housed in an 8-pin PDIP package, designed for through-hole mounting applications. Operating with a maximum clock frequency of 50 MHz, the device provides efficient and synchronous SPI communication ideal for microcontroller interfacing and embedded system storage needs.

This Flash memory module operates between supply voltages of 2.7 V and 3.6 V, suitable for modern low-power digital designs. Its operating temperature range from 0°C up to 70°C makes it appropriate for standard industrial ambient conditions without compromising performance.

The technology uses a split gate cell architecture which enhances data retention capabilities and write endurance. The chip supports 1M x 8 bit organization with 8 bits per word, supporting a maximum random access time of 5 nanoseconds to facilitate fast data retrieval.

The compact PDIP package measures 10.16 mm in length, 4.95 mm in height, and 177.8 mm in width, offering ease of integration into existing PCB layouts via through-hole soldering. The supply current at 15 mA ensures relatively low power consumption, making it suitable for power-sensitive applications in sectors such as industrial control, communications, instrumentation, and embedded computing.

Common industrial uses include data logging, firmware storage, and system boot code retention, benefiting applications in manufacturing equipment, automotive electronics, HVAC systems, and laboratory instrumentation.

Memory capacity of 8 megabytes suitable for embedded systems. SPI interface for synchronous high-speed data communication up to 50 MHz. PDIP package with 8 pins designed for easy through-hole installation. Operating voltage range from 2.7 V to 3.6 V ensuring compatibility with low power systems.

Operating temperature range from 0°C to 70°C allowing use in standard industrial environments. Split gate cell technology optimizing memory retention and endurance. Low supply current consumption at 15 mA for power-sensitive applications.

Maximum random access time of 5 ns for quick read performance. Compact dimensions for straightforward PCB incorporation. Explore more Microchip Flash Memory products and related semiconductor components at EnvMart for your industrial and electronic design needs.
