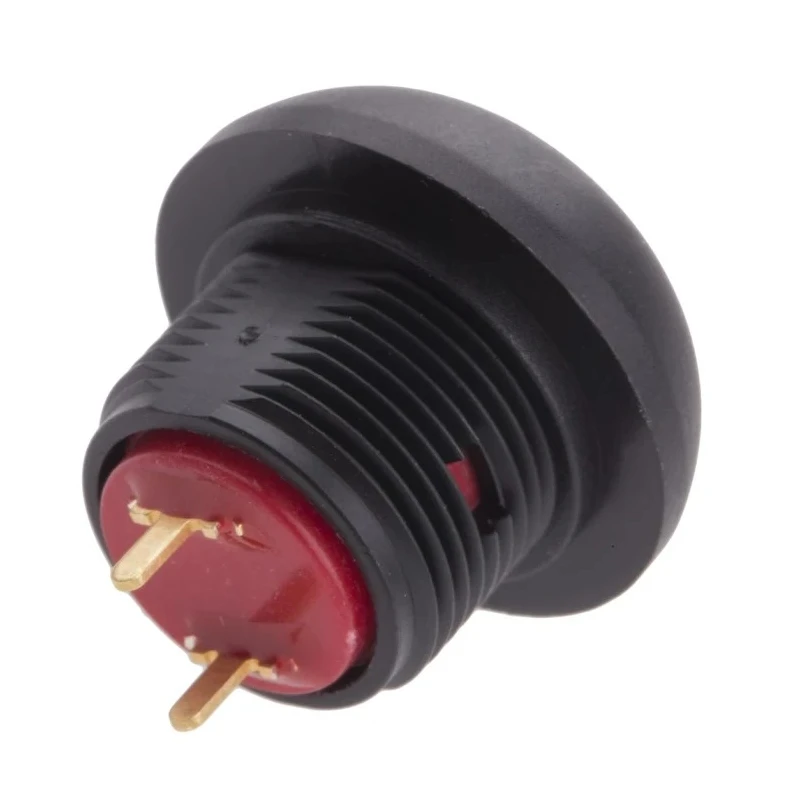

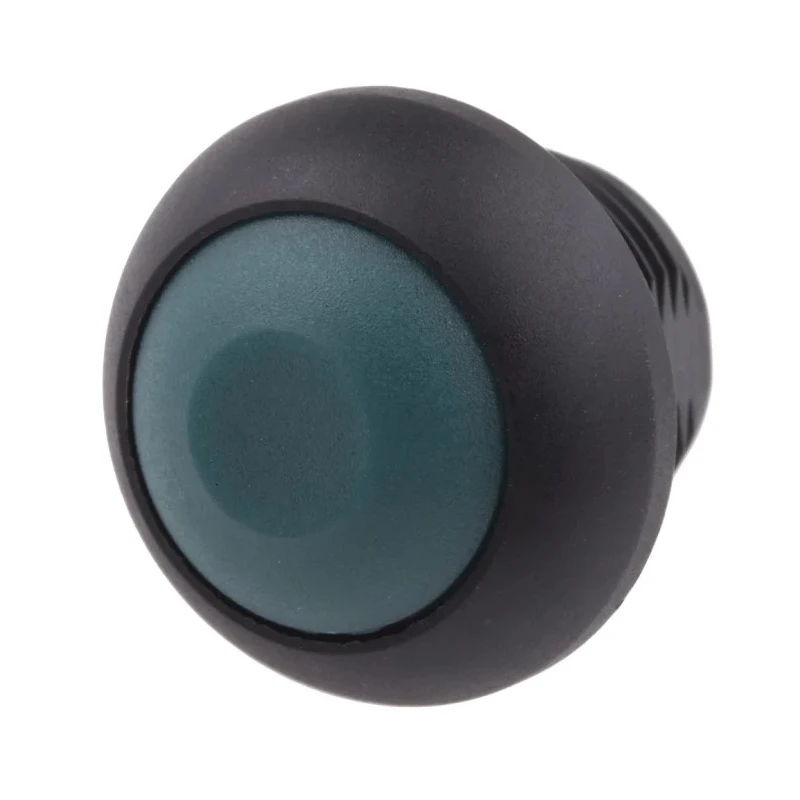

RS PRO Miniature Push Button Switch Momentary PCB 13.6 mm Cutout SPST Green LED IP67 50 V dc 32 V ac 820-7593
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 820-7593 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | PCB Pin |
| Standards/Approvals | Lead-Free, RoHS |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 50V dc |
| Actuator Style | Cap |
| Switch Contact Current | 400mA |
| Operating Force | 2N-5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 32V ac |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- High-quality polyamide 6/6 actuator with green LED illumination provides durability and clear indication.
- Rated for contact voltages of 50 V dc and 32 V ac, suitable for various electrical applications.
- IP67 rated enclosure ensures superior dust and water resistance for harsh environments.
- Mechanical life of up to 1,000,000 cycles guarantees long-term reliability.
- Compact size suited for test equipment, telecommunications, networking, and handheld appliance controls.
- Operating force between 2N and 5N offers responsive tactile feedback.
- Gold over silver plated contacts minimize contact resistance and improve switching performance.
- Compliant with lead-free and RoHS standards for safer environmental use.
Product Description
RS PRO 820-7593 Miniature Push Button Switch is a compact, momentary switch designed for PCB mounting with a precise 13.6 mm panel cutout and SPST contact configuration. This green LED illuminated switch features a durable polyamide 6/6 cap and is rated IP67, providing excellent protection against dust and water ingress, making it ideal for rugged industrial environments.
The switch supports contact voltages of 50 V dc and 32 V ac and can handle a maximum current of 400mA. Its mechanical life extends to 1,000,000 cycles, assuring reliable long-term operation under demanding conditions. The operating force ranges between 2N and 5N, offering tactile feedback to the user. Contacts are gold over silver plated, ensuring minimal contact resistance and reliable electrical performance.
This miniature push button switch finds typical applications in test equipment, telecommunications, networking devices, and handheld appliances. It is a high-quality product from the RS PRO range, known globally for rigorous quality control and dependable industrial components.
High-quality polyamide 6/6 cap with green LED illumination. Momentary operation with a single-pole single-throw (SPST) configuration. IP67 rated for protection against dust and water. Contact voltages: 50 V dc, 32 V ac; Contact current: 400mA.
Mechanical life: 1,000,000 cycles and operating force: 2N-5N. Gold over silver plated contacts for enhanced conductivity. Lead-Free and RoHS compliant for environmentally safe use. Explore RS PRO products at EnvMart for more quality electronic components and Push Button Switches designed to meet various industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an IP67 rating, providing excellent protection against dust and water ingress, making it suitable for harsh environments.
It has a mechanical life of up to 1,000,000 cycles, ensuring reliable long-term operation under demanding conditions.
The switch supports contact voltages of 50 V dc and 32 V ac, making it versatile for various electrical applications.
The operating force for this model ranges between 2N and 5N, providing responsive tactile feedback during operation.
It features a single-pole single-throw (SPST) configuration, suitable for momentary operation.
The switch can handle a maximum current of 400mA, ensuring it can manage typical loads in various applications.
This unit requires a panel cutout size of 13.6 mm for proper installation on a PCB.
The actuator is made of high-quality polyamide 6/6, which provides durability and a clear indication with its green LED illumination.
The soldering temperature should not exceed 350°C for a maximum duration of 5 seconds to avoid damage.
Yes, it is compliant with lead-free and RoHS standards, ensuring safer environmental use.
The maximum operating temperature for this model is 85°C, making it suitable for a range of applications.
It uses PCB pin terminals, which are designed for easy mounting on printed circuit boards.
