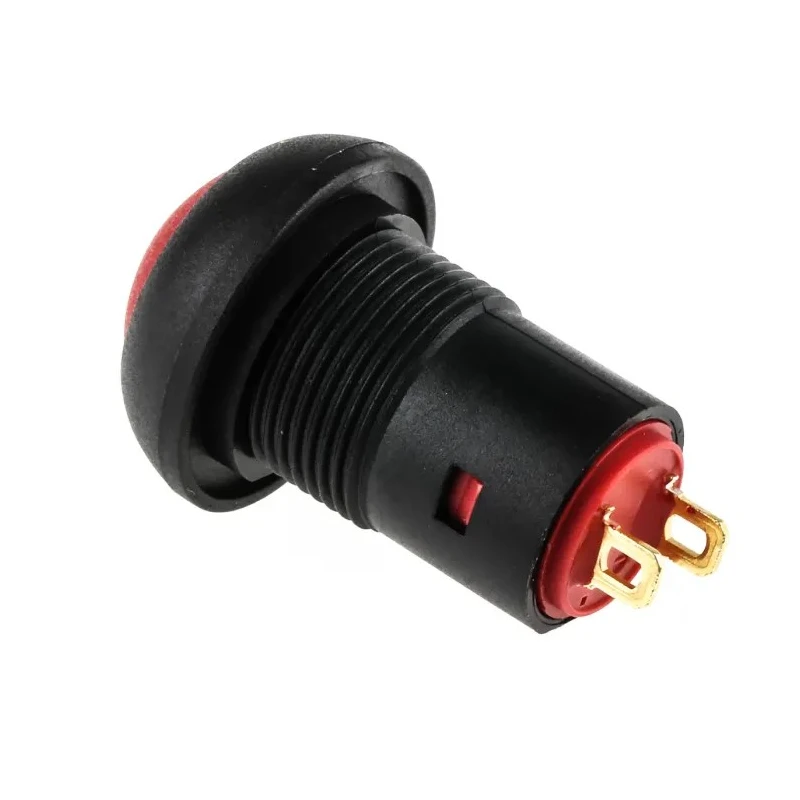

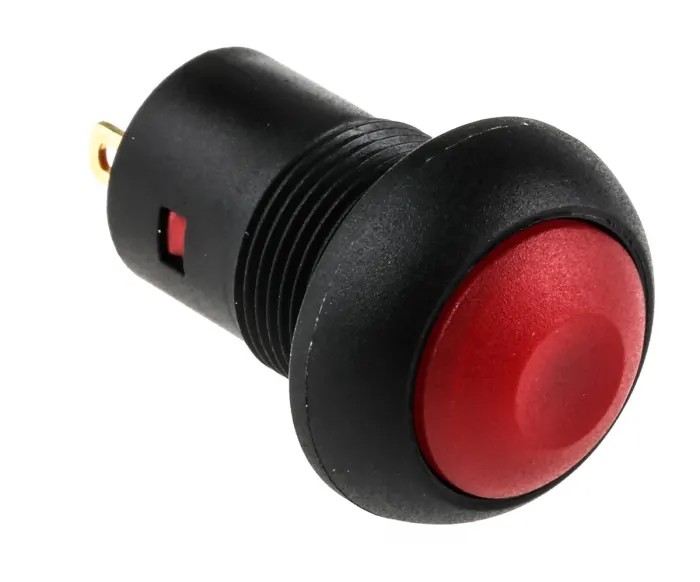

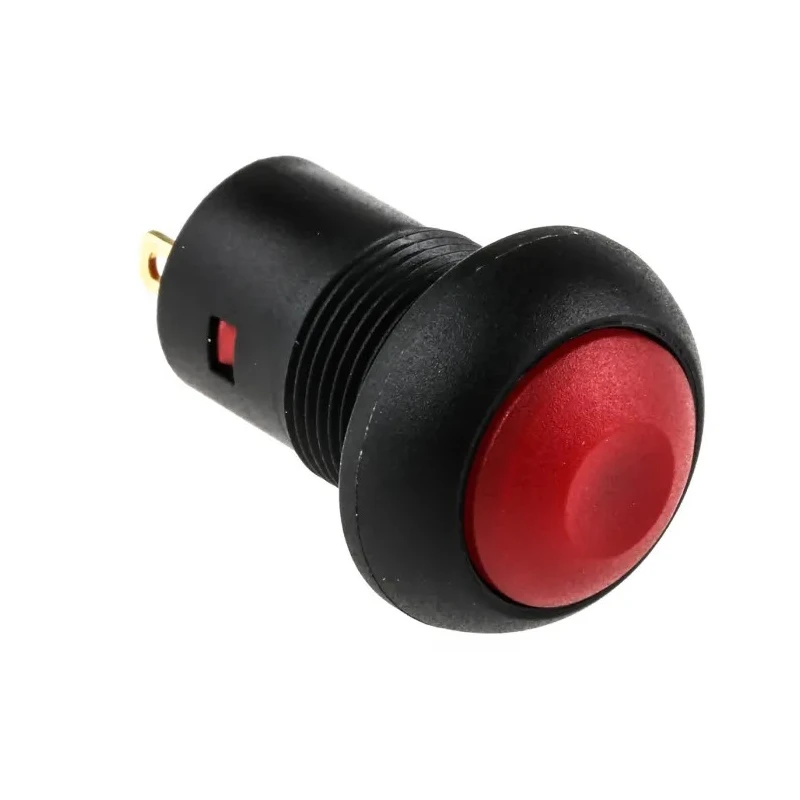

RS PRO Miniature Push Button Switch, Latching, PCB Mount, 13.6 mm Cutout, SPST, Red LED, IP67, 24 V dc 820-7543
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 820-7543 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| LED Colour | Red |
| Switch Operation | Latching |
| Actuator Colour | Red |
| Contact DC Voltage | 24V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Operating Force | 2N-5N |
| Mechanical Life | 1000000 cycles |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- The switch features a red LED indicator and cap actuator style.
- It offers an IP67 protection rating for dust and water resistance.
- Operates at 24 V dc with a contact current rating of 100 mA.
- Mechanical life is rated at 1,000,000 cycles ensuring durability.
- Maximum operating temperature is 85°C, suitable for various industrial environments.
- Contact plating uses gold over silver for reliable connections.
- Operating force ranges between 2N to 5N for ease of actuation.
- Solder terminals use solder lug type rated for soldering up to 350°C for 5 seconds.
Product Description
RS PRO 820-7543 miniature Push Button Switch is a high-quality, latching SPST switch designed for PCB mounting with a 13.6 mm panel cutout. This switch is equipped with a red LED indicator and a cap-style actuator made of durable polyamide 6/6 material. The gold over silver plated contacts ensure reliable electrical performance under demanding conditions.
Featuring an IP67 ingress protection rating, this switch is resistant to dust and water, making it ideal for use in harsh industrial environments, automation systems, telecommunications, test equipment, and handheld appliances.
With a contact DC voltage rating of 24 V and a contact current of 100 mA, it supports low voltage control applications. The operating force ranges from 2N to 5N, offering a comfortable and reliable user experience. Mechanical life is rated at 1,000,000 cycles, ensuring long-lasting performance and reliability.
Other important features include a maximum operating temperature of 85°C and solder lug terminal type that supports soldering at up to 350°C for 5 seconds, meeting industry-standard assembly requirements.
This switch is made in China and is part of the RS PRO range known for rigorous quality testing and engineering standards. It suits industrial, manufacturing, automation, and electronics applications demanding precise and robust push button solutions.
The switch operation is latching, suitable for control and signalling. Durable construction with polyamide actuator and gold-silver contacts. Ingress rated IP67 for protection against dust and liquids. High mechanical endurance of 1,000,000 cycles for extended use.
Red LED illuminator for visual on/off status indication. Designed for easy PCB mounting with a 13.6 mm cutout size. Reliable solder lug terminals for secure electrical connection. Typical applications include test equipment, networking, and handheld devices.
Explore the RS PRO range on EnvMart for more professional electrical switch components and solutions tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C, making it suitable for various industrial environments.
It has a contact current rating of 100 mA, which supports low voltage control applications.
This switch features a Single Pole Single Throw (SPST) configuration, allowing for basic on/off control.
The switch has an IP67 rating, providing protection against dust and water ingress.
It is rated for a mechanical life of 1,000,000 cycles, ensuring long-lasting performance.
The required panel cutout size for this model is 13.6 mm, designed for easy PCB mounting.
This switch uses solder lug terminals, which are rated for soldering at temperatures up to 350°C for 5 seconds.
The operating force for this model ranges from 2N to 5N, providing a comfortable actuation experience.
The LED indicator on this switch is red, providing visual feedback for on/off status.
The actuator is made of durable polyamide 6/6 material, while the contacts are plated with gold over silver for reliable connections.
This model is suitable for applications in automation systems, telecommunications, test equipment, and handheld appliances.
The contact voltage rating for this push button switch is 24 V dc, suitable for low voltage applications.
