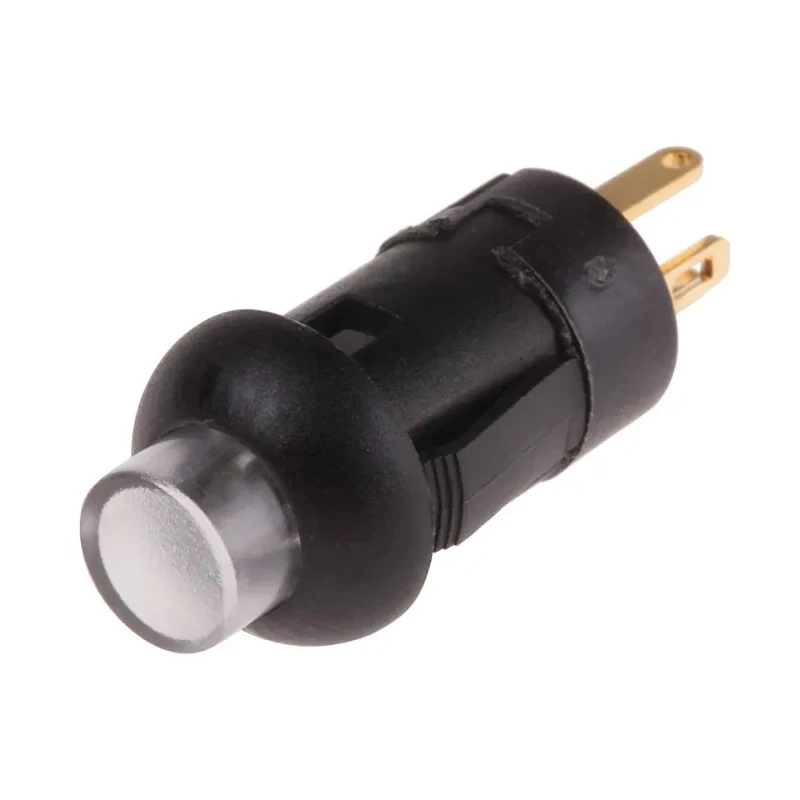

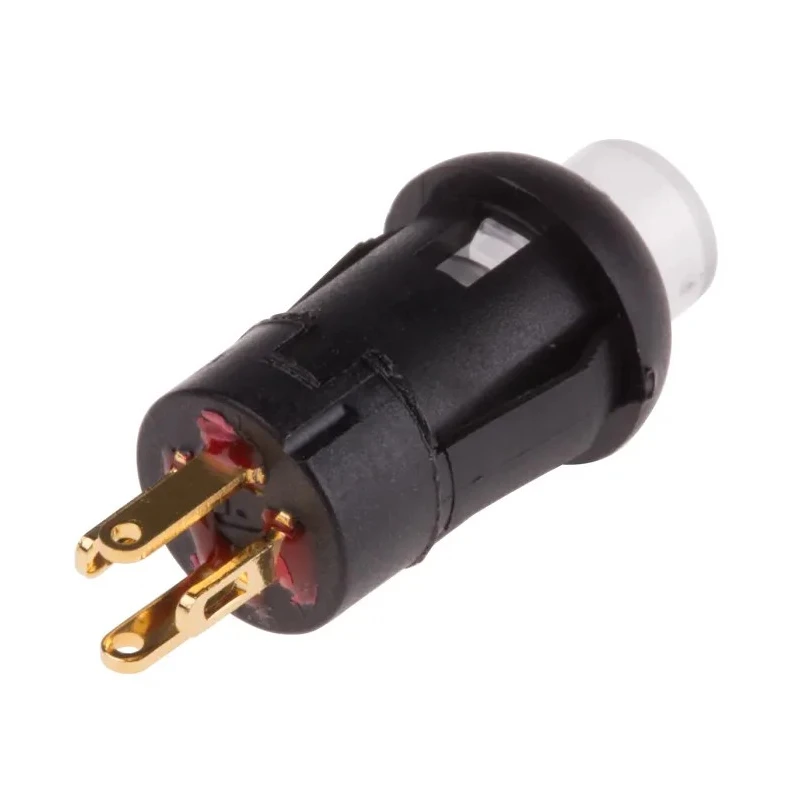

RS PRO Illuminated Miniature Push Button Switch Momentary PCB Mount SPST Blue LED 8 mm Cutout 30V dc/ac 8207537P
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 8207537P |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 8 mm |
| Terminal type | PCB Pin |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Contact DC Voltage | 30V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Operating Force | 250±100gf (gram-force) |
| Contact AC Voltage | 30V ac |
| Total travel | 1.2±0.3mm |
Key Features
- Momentary switch operation ensures quick, temporary contact activation.
- Compact 8 mm panel cutout size suits small panel installations.
- Illuminated actuator with blue LED enhances visibility in low light.
- SPST contact configuration provides simple on-off switching.
- Durable Nylon 6/6 housing with gold-plated copper alloy terminals.
- Maximum operating temperature up to 85°C for reliability in harsh conditions.
- Operating force of 250±100 gf ensures tactile feedback.
- Rated for 100 mA switching current at 30 V ac/dc.
Product Description
RS PRO 8207537P Illuminated Miniature Push Button Switch is a momentary PCB mount switch designed for applications needing compact control solutions with visual feedback. Featuring a blue LED indicator and a cap-style clear actuator, this switch interfaces seamlessly with 8 mm panel cutouts.
The switch is constructed with a high-quality Nylon 6/6 body for enhanced durability and copper alloy terminals with gold plating to ensure reliable electrical conduction. The SPST single-pole single-throw configuration offers simple on/off control rated for 30 V dc and 30 V ac voltages and a switch current rating of 100 mA. Designed to operate effectively within temperatures up to 85°C, this switch delivers dependable performance in industrial, laboratory, telecommunications, and handheld appliance environments.
Key functional parameters include a total travel distance of 1.2±0.3 mm and an operating force of 250±100 gram-force, providing excellent tactile feedback and control precision. The device supports an operating lifespan of 50,000 cycles, ensuring long-term reliability in frequent use scenarios.
This miniature push button switch is suitable for integration into test equipment, network devices, and other electronic instrumentation. The integrated illuminated actuator improves visibility for operators working in low-light or complex control panels.
Momentary switch operation with SPST configuration for simple control. Compact 8 mm panel cutout fits small form-factor designs. Blue LED illuminated cap actuator for enhanced indication. Durable Nylon 6/6 housing with gold-plated copper alloy terminals.
Rated for 30 V dc and 30 V ac operation with 100 mA current rating. Maximum operating temperature of 85°C for tough environmental conditions. Operating force and travel tailored for responsive tactile feedback. 50,000 operating cycles to support long product life.
Applications include industrial automation, telecommunications, networking, and handheld devices. Explore a wide selection of reliable Push Button Switches and components suitable for your precision control needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this switch is 85°C, allowing it to function effectively in harsh conditions.
This model features an SPST (Single Pole Single Throw) contact configuration, providing simple on/off switching functionality.
The switch is rated for a switching current of 100 mA at both 30 V dc and 30 V ac.
The required panel cutout size for installation is 8 mm, suitable for compact panel designs.
The illuminated actuator features a blue LED, which enhances visibility in low-light conditions, making it easier for operators to identify the switch's status.
The total travel distance of this switch is 1.2±0.3 mm, providing tactile feedback during operation.
This switch supports PCB (Printed Circuit Board) mounting, making it suitable for various electronic applications.
The operating force required for this switch is 250±100 gram-force, ensuring responsive tactile feedback during use.
The expected operating lifespan of this switch is 50,000 cycles, supporting long-term reliability in frequent use scenarios.
The housing is made from durable Nylon 6/6, and the terminals are constructed from gold-plated copper alloy to ensure reliable electrical conduction.
This illuminated push button switch is suitable for applications in industrial automation, telecommunications, networking, and handheld devices.
The actuator style of this push button switch is cap-style, designed for easy operation and integration into control panels.
