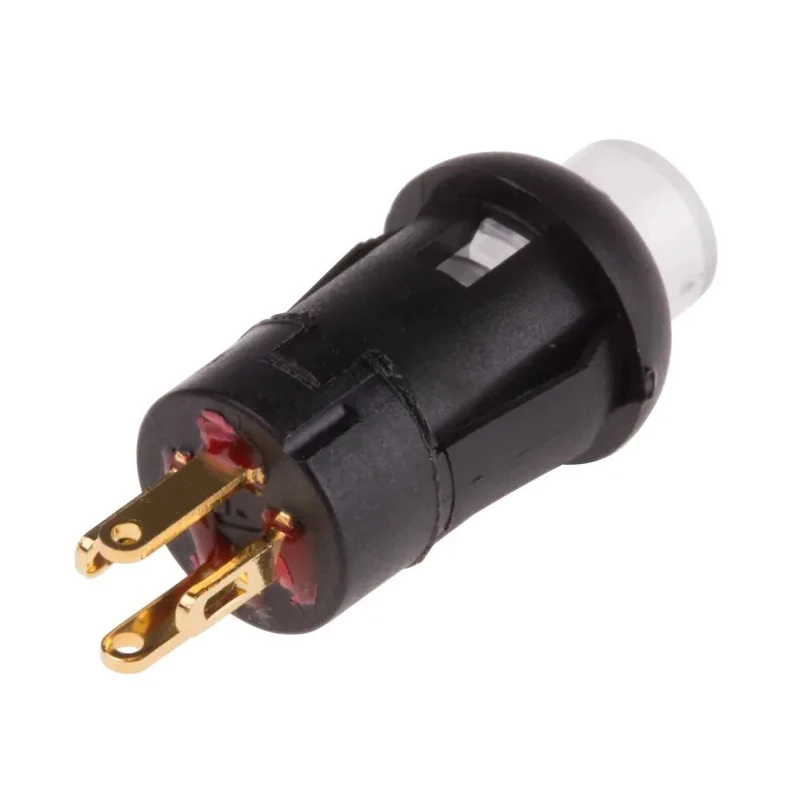

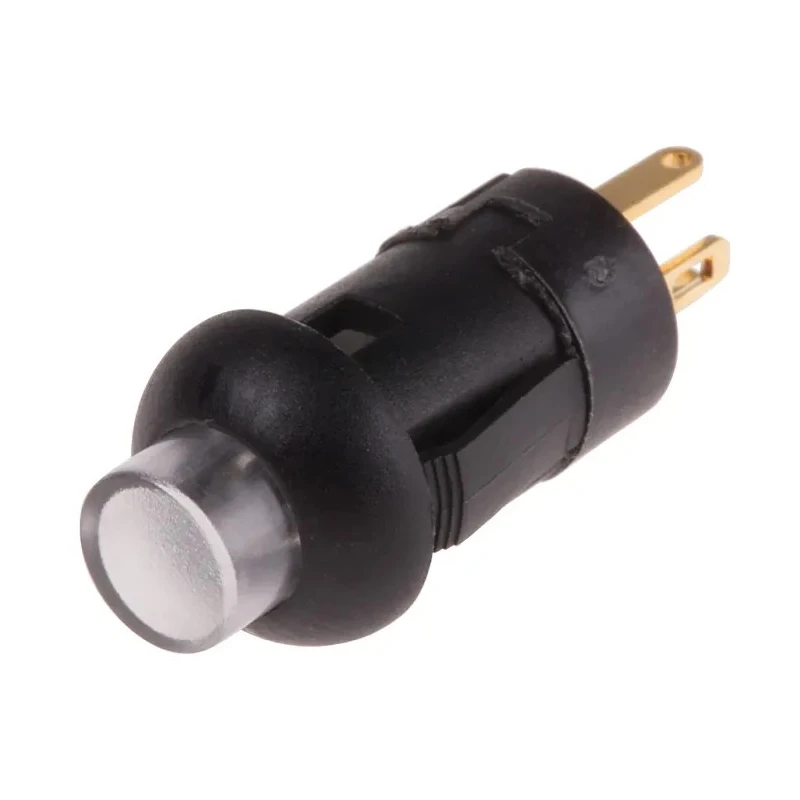

RS PRO Illuminated Miniature Push Button Switch Momentary PCB 8 mm Cutout SPST Blue LED 30 V AC/DC 820-7537
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 820-7537 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 8 mm |
| Terminal type | PCB Pin |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Contact DC Voltage | 30V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Operating Force | 250±100gf (gram-force) |
| Contact AC Voltage | 30V ac |
| Total travel | 1.2±0.3mm |
Key Features
- This switch features a clear cap actuator with a blue LED illumination.
- Designed with SPST contact configuration and momentary switch operation.
- Suitable for panel cutouts of 8 mm size and direct PCB mounting.
- Supports contact voltages of 30 V AC and 30 V DC with a maximum current of 100mA.
- Constructed with a nylon 6/6 case and gold-plated copper alloy terminals for durability.
- Has a total travel distance of 1.2±0.3 mm and operating force of 250±100 gf.
- Operating temperature rating up to 85°C ensures reliable use across environments.
Product Description
The RS PRO 820-7537 illuminated miniature push button switch is designed for momentary operation offering reliable on-off control with a single pole single throw (SPST) configuration. This switch is ideal for applications requiring an illuminated actuator with a clear cap and blue LED, which enhances visibility in various operational environments.
Manufactured with a durable nylon 6/6 case and gold-plated copper alloy terminals, this Push Button Switch ensures longevity and dependable performance. Its PCB mount and 8 mm panel cutout size support easy integration into circuit boards and panels.
Rated for 30 V AC and DC contact voltage, with a 100mA contact current, it is suitable for telecommunications, test equipment, networking, and handheld appliances. The switch features a total travel distance of 1.2±0.3 mm and requires an operating force of 250±100 gf, providing a tactile response.
With a maximum operating temperature of 85°C, it is designed to maintain functional stability under various thermal conditions. The momentary operation mode makes it ideal for controlling machines or processes where brief contact closure is required.
This product is part of the RS PRO range known for quality, rigorous testing, and reliability, trusted by engineers worldwide for industrial and commercial applications. This switch features a clear cap actuator with a blue LED illumination.
Designed with SPST contact configuration and momentary switch operation. Suitable for panel cutouts of 8 mm size and direct PCB mounting. Supports contact voltages of 30 V AC and 30 V DC with a maximum current of 100mA. Constructed with a nylon 6/6 case and gold-plated copper alloy terminals for durability.
Has a total travel distance of 1.2±0.3 mm and operating force of 250±100 gf. Operating temperature rating up to 85°C ensures reliable use across environments. Explore the RS PRO category to find more high-quality switches and electrical components for your professional projects and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This switch features a single pole single throw (SPST) contact configuration, allowing for reliable on-off control in various applications.
It supports contact voltages of 30 V AC and 30 V DC, making it suitable for a range of electrical applications.
The maximum contact current for this switch is 100 mA, which is important for ensuring compatibility with connected devices.
The total travel distance of the actuator is 1.2 ± 0.3 mm, providing a tactile feedback during operation.
It requires an operating force of 250 ± 100 gf (gram-force) for actuation, which influences the ease of use.
This model requires an 8 mm panel cutout size, facilitating its integration into various panels and enclosures.
It is constructed with a nylon 6/6 case and features gold-plated copper alloy terminals, enhancing its durability and performance.
The maximum operating temperature is rated at 85°C, ensuring reliable performance across a range of thermal conditions.
This switch is designed for PCB mounting, allowing for easy integration into circuit boards.
It features a blue LED illumination, which enhances visibility in various operational environments.
This switch is suitable for telecommunications, test equipment, networking, and handheld appliances, among other applications.
It has a cap actuator style, which is designed for momentary operation, providing a clear and tactile response when pressed.
