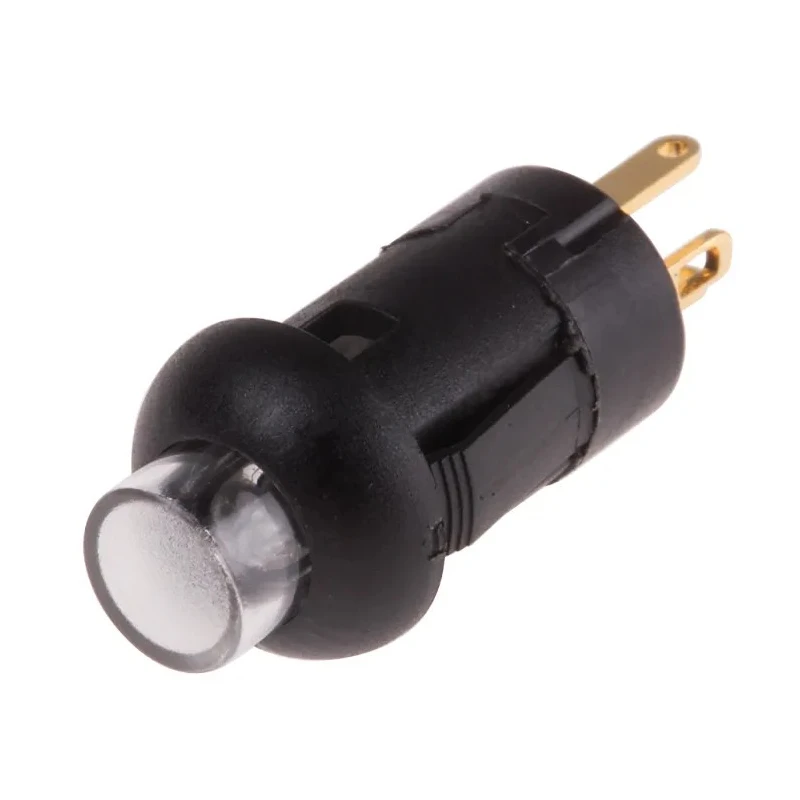

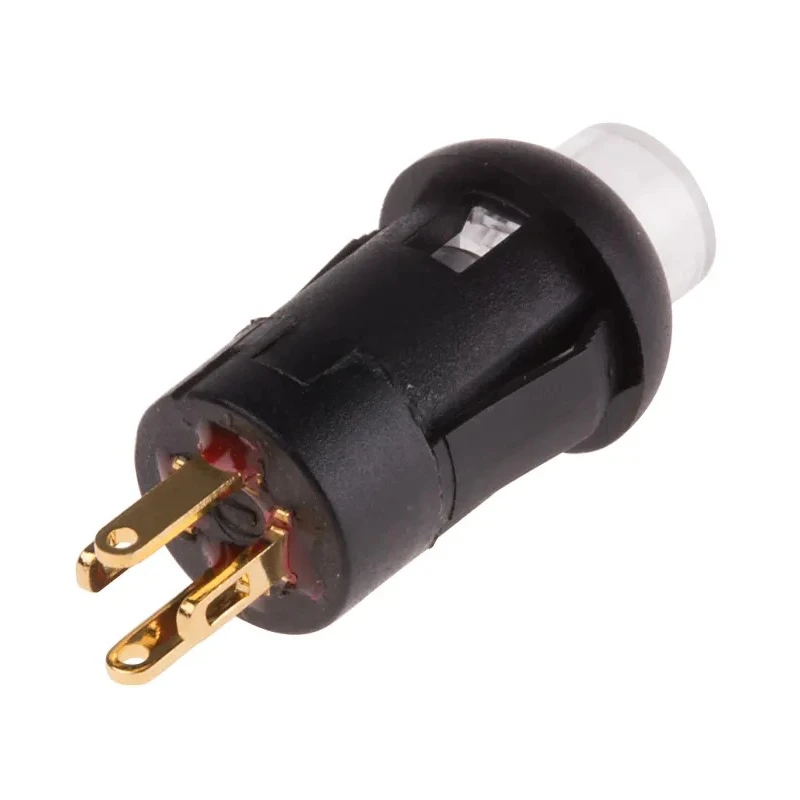

RS PRO Illuminated Miniature Push Button Switch, Momentary, PCB Mount, 8 mm Cutout, SPST, Green LED, 30 V dc/ac 820-7533
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 820-7533 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 8 mm |
| Terminal type | PCB Pin |
| LED Colour | Green |
| Switch Operation | Momentary |
| Contact DC Voltage | 30V dc |
| Actuator Style | Cap |
| Switch Contact Current | 100mA |
| Operating Force | 250±100gf (gram-force) |
| Contact AC Voltage | 30V ac |
| Total travel | 1.2±0.3mm |
Key Features
- The switch features an 8 mm panel cutout size for compact installations.
- Designed for a contact voltage of 30 V dc and 30 V ac with maximum contact current of 100mA.
- The actuator is a cap style with clear illumination and green LED color for visual feedback.
- Constructed with high-quality Nylon 6/6 housing and gold-plated copper alloy terminals for durability.
- Provides a total travel distance of 1.2±0.3 mm and an operating force of 250±100 gf.
- Rated for a maximum operating temperature of 85°C.
- Typical applications include test equipment, telecommunications, networking, and handheld appliances.
Product Description
RS PRO 820-7533 Illuminated Miniature Push Button Switch is a momentary PCB-mounted switch designed for precise control in industrial and electronic applications. It features a compact 8 mm panel cutout and offers a single-pole single-throw (SPST) contact configuration with a green LED for illumination.
The switch housing is made from durable Nylon 6/6 material, while the terminals are crafted from copper alloy with gold plating to ensure reliable electrical connectivity and corrosion resistance. It delivers a contact voltage rating of 30 V dc or 30 V ac with a switch contact current of 100 mA, suitable for low power circuits.
With a total travel of 1.2±0.3 mm and an operating force requirement of 250±100 gram-force, the switch provides tactile feedback and reliability over an operating life of approximately 50,000 cycles. Its maximum operating temperature is 85°C, making it suitable for various environments.
The illuminated cap actuator offers visual indication with a green LED color, enhancing usability and status monitoring in applications such as test equipment, telecommunications, networking, and handheld devices.
The switch ensures momentary actuation for controlled operations with a reliable SPST contact configuration. Its compact size and PCB mounting suitability offer easy integration into electronic assemblies and control panels.
The high-quality materials and construction support long-term durability and consistent performance. Green illumination helps operators quickly identify operational status and improve safety. The product is ideal for industrial, laboratory, telecommunications, and manufacturing environments requiring precise push button control.
RS PRO is recognized for delivering rigorously tested electronic components that meet stringent industry requirements, providing dependable performance to engineers globally. This miniature Push Button Switch exemplifies quality and practicality in a compact form factor.
Explore the comprehensive range of RS PRO electronic components and switches in the Electronics & Electricals category on EnvMart for reliable solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole single-throw (SPST) contact configuration, allowing for simple on/off control.
The maximum operating temperature for this switch is 85°C, making it suitable for various environments.
This switch requires an 8 mm panel cutout size for compact installations.
The total travel distance of the actuator is 1.2±0.3 mm, providing tactile feedback during operation.
The maximum contact current for this switch is 100 mA, suitable for low power circuits.
It features a green LED for illumination, providing visual feedback for operational status.
The housing is made from Nylon 6/6, and the terminals are crafted from a gold-plated copper alloy for reliable connectivity.
The operating force required is 250±100 gram-force, ensuring a reliable actuation feel.
Yes, this model is designed for PCB mounting, making it easy to integrate into electronic assemblies.
Typical applications include test equipment, telecommunications, networking, and handheld appliances.
This switch operates in a momentary mode, meaning it only engages while being pressed.
The contact voltage rating is 30 V dc and 30 V ac, making it versatile for different circuit types.
