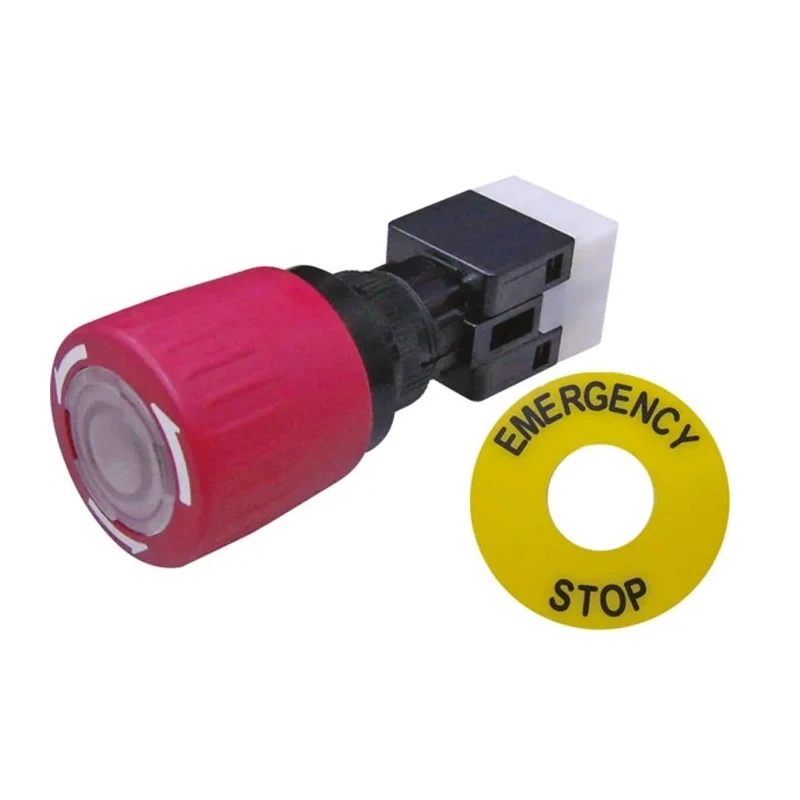

RS PRO Illuminated Emergency Stop Push Button, Panel Mount, DPDT, IP65, 5A 250V ac, 16mm Cutout 820-0466

RS PRO 820-0466 Illuminated Emergency Stop Push Button is a high-quality panel mounted safety switch designed for industrial, electrical, automation, and manufacturing environments. It features a robust DPDT contact configuration with an IP65 rated waterproof panel seal, ensuring reliability in wet and harsh conditions. The switch is designed to fit an industry standard 16mm diameter panel cutout with panel thickness between 0.5 to 5mm.

This emergency stop push button is illuminated, with a 24mm diameter red actuator head that protrudes 18mm from the panel, providing clear indication of status. The switch mechanism includes a removable 1NO/1NC + 1NO/1NC contact block with universal 2.8x0.5mm solder terminals which allows for either direct soldering or quick plug-in connectors.

Designed for safety, the E-stop switch requires a firm 2kgf actuation force to operate, preventing inadvertent activation that could disrupt machine operations or pose hazard. It utilizes silver contacts rated at 5A and 250V ac, ensuring dependable electrical performance. Mechanical durability is rated for at least 100,000 operations with an electrical lifetime of 50,000 operations, suitable for demanding industrial workflows.

Additional features include insulation resistance above 50MΩ and a wide operating temperature range from -25 to +55°C, making it versatile for diverse industrial climates. Each switch is supplied with a 40mm diameter legend plate for clear labeling compliance. This component contributes significantly to industrial safety, compliant with RoHS standards, and originates from Taiwan, Province of China.

The switch supports easy installation with panel thickness compatibility from 0.5 to 5mm. It is part of the ADA16E series which includes other modular push button switches and indicators, enabling flexible control panel design.

The high-quality RS PRO brand assures rigorous testing and industry compliance for professional applications.

Ideal for use in industrial automation, manufacturing lines, electrical distribution, HVAC control, and general machinery emergency safety stop functions. Ensure your control panels meet safety regulations with this dependable emergency stop push button from RS PRO.
