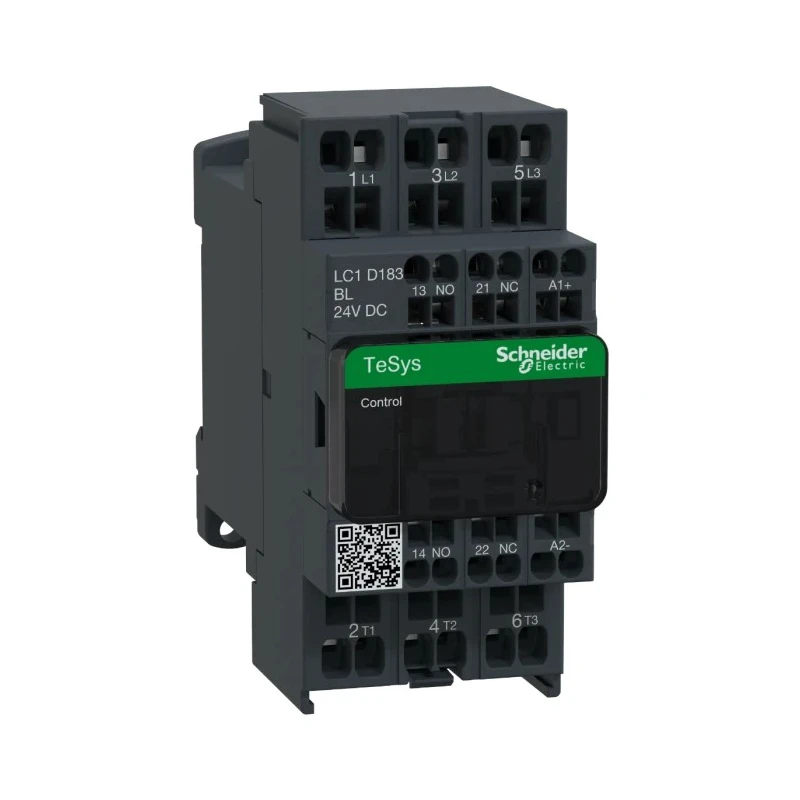

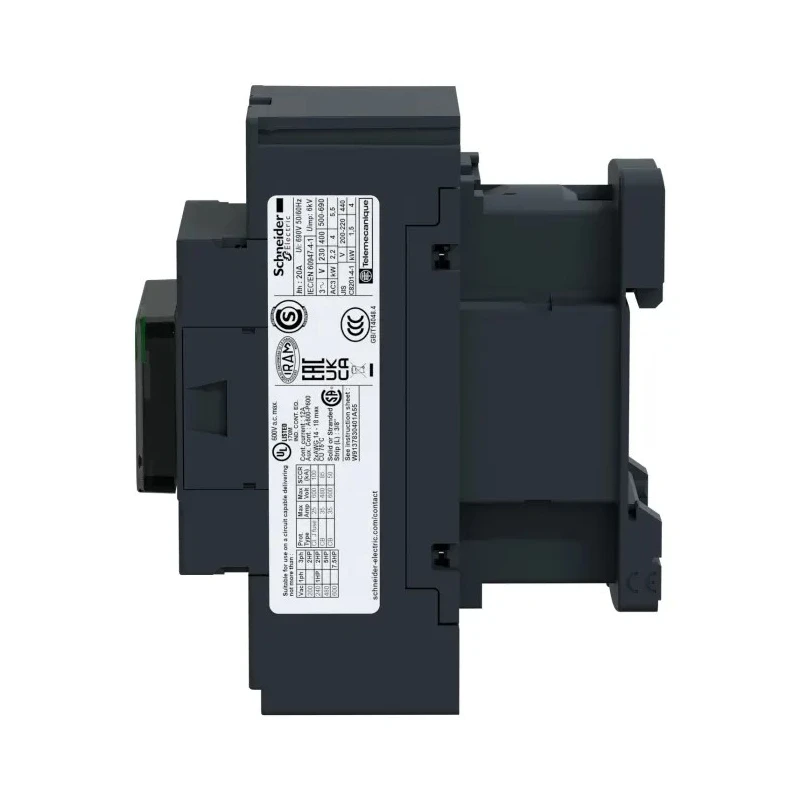

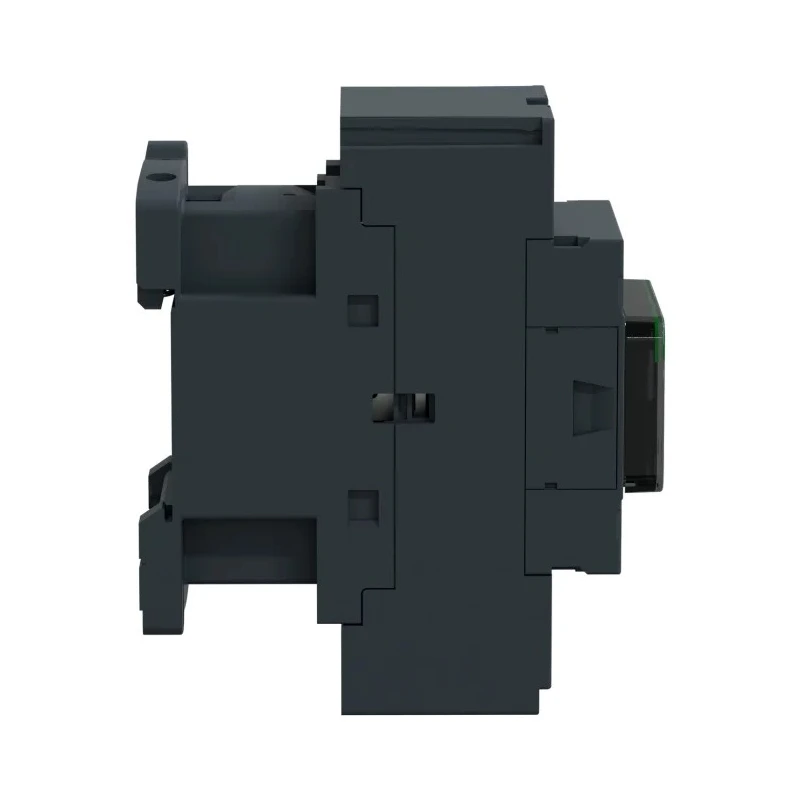

Schneider Electric LC1D Contactor 24V DC Coil 3-Pole 18A 7.5kW 3 NO 600V AC LC1D183BL

Schneider Electric LC1D183BL is a high-performance 3-pole contactor with a 24V DC coil specifically engineered for motor control and resistive load switching in industrial automation and control panels. This compact device offers a power handling capacity of 7.5 kW and an operational current of 18A, making it suitable for robust industrial environments.

The contactor operates on a 24V DC coil featuring low inrush and hold power consumption, enhancing system energy efficiency. It is equipped with three normally open (NO) main contacts and two auxiliary contacts configured as 1 NO and 1 normally closed (NC) to facilitate control circuit feedback and signalling functions essential for automation.

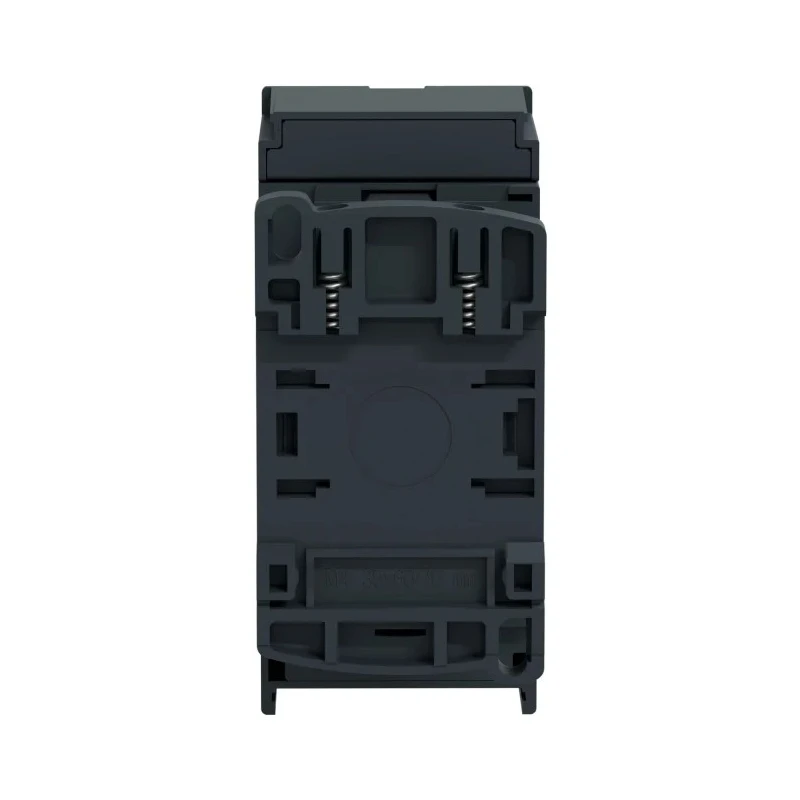

Mounting flexibility is provided through both rail and plate options, supported by spring terminals that significantly speed installation and ensure reliable wiring connections. With mechanical durability rated at 30 million cycles and electrical durability at 1.65 million cycles under 18A AC-3 duty, this contactor guarantees long-lasting performance.

The compact dimensions (99mm width, 93mm depth, 45mm length) suit DIN rail control systems and retrofit applications. It operates effectively over a wide ambient temperature range from -40°C to 70°C, with an insulation rating of 600V AC for safe use in high voltage electrical systems.

Compliance with international standards including IEC, EAC, CSA, CCC, UL, and RoHS underscores its quality and environmental responsibility. The product is designed for disassembly, aligning with sustainability initiatives.

The device supports a contact current of 18A suitable for industrial applications. Includes 1 normally open and 1 normally closed auxiliary contacts for control feedback. Compact dimensions with width 99mm, depth 93mm, length 45mm for rail or plate mounting.

Operational temperature ranges from -40°C to 70°C supporting harsh environments. Designed with spring terminals for secure and fast wiring installation. Electrical insulation rated up to 600V AC for high voltage compatibility.

Mechanical endurance of 30 million cycles and electrical endurance up to 1.65 million cycles. Complies with IEC, EAC, CSA, CCC, UL, and RoHS standards for safety and performance.

This Schneider Electric LC1D183BL contactor is ideal for industrial motor starters, resistive heaters, and control systems requiring reliable switching and signalling capabilities. Its robust construction and extensive certification make it suitable for various industrial, manufacturing, HVAC, and automation usages.
