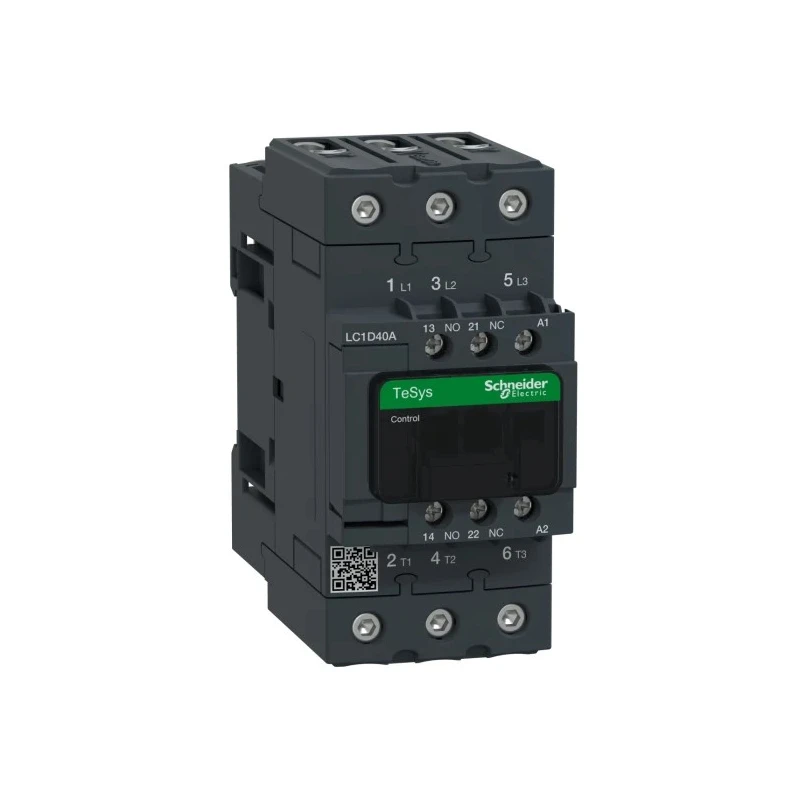

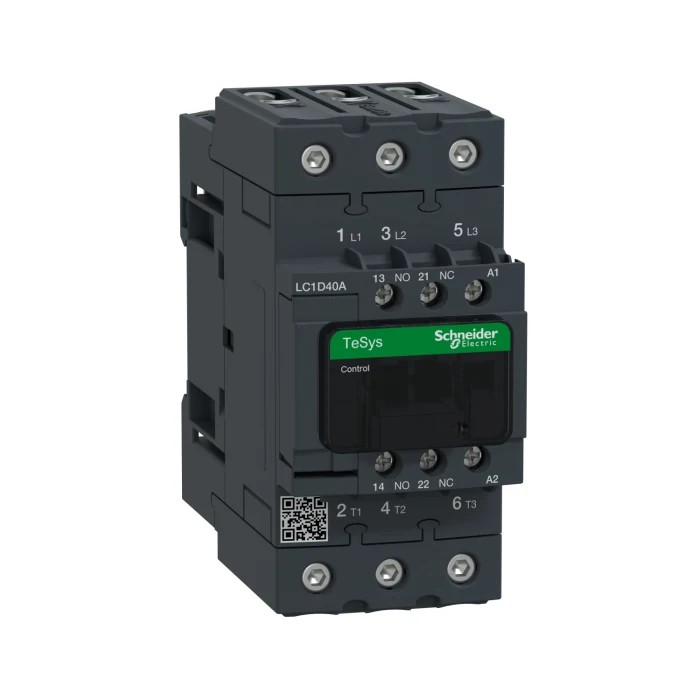

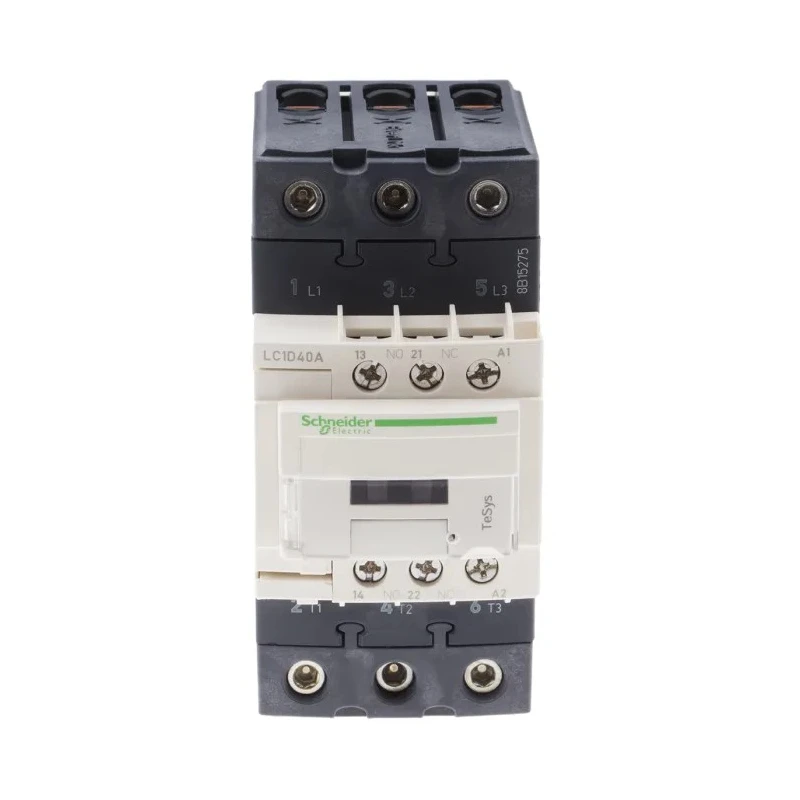

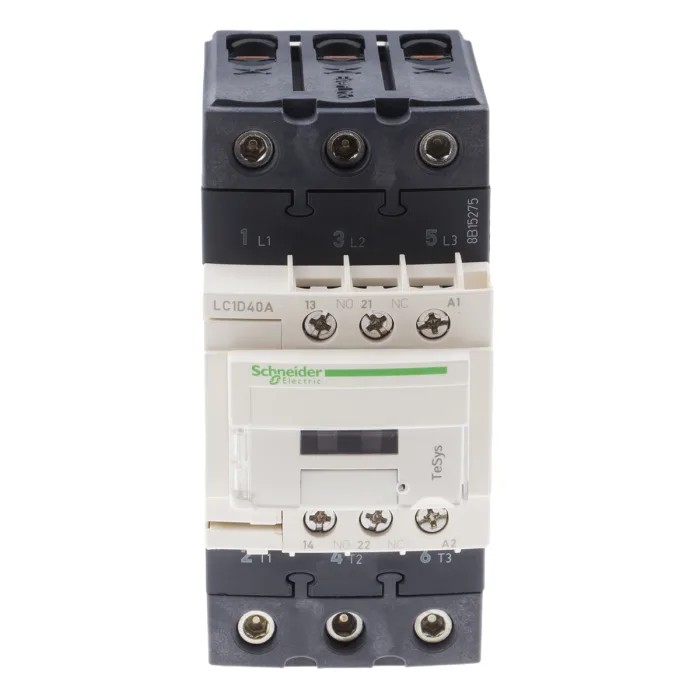

Schneider Electric LC1D Contactor 3-Pole 40A 30kW Motor Control with 220V AC Coil LC1D40AM7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 122mm |
| Model | LC1D40AM7 |
| Depth | 120mm |
| Width | 55mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 220V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 NO main contacts for reliable switching.
- Mounts easily on DIN rail saving installation time.
- Compact size with dimensions 122mm x 55mm x 120mm.
- Operates efficiently with low heat dissipation of 5W.
- Includes protective cover for electrical safety.
- Designed to withstand impulse voltages up to 6kV.
- Supports auxiliary contact configuration of 1 NO/1 NC for extended control.
- Suitable for harsh environments with operating temperature range of -40°C to 60°C.
Product Description
Schneider Electric LC1D40AM7 is a high-performance 3-Pole contactor designed for robust motor control and resistive load switching. Featuring a 220V AC coil and supporting a contact current of 40A with a power rating of 30kW, this contactor suits demanding industrial environments. Its compact dimensions of 122mm length, 55mm width, and 120mm depth enable space-efficient installation on DIN rails.
The contactor achieves energy-efficient operation with only 5W heat dissipation and includes a protective cover to prevent accidental contact with live parts, enhancing operator safety. It provides fast switching with a coil energized magnetic field, making it ideal for applications requiring reliable motor switching such as CNC machines, industrial conveyors, lifts, and escalators.
This model withstands surge impulse voltages up to 6kV, providing resilience against power spikes in industrial settings. The auxiliary contacts configured as 1 NO and 1 NC add switching capability for extended control. Operating temperatures from -40°C to 60°C allow usage in a wide range of environmental conditions.
Constructed with IP20 finger-safe screw terminals marked for both North American and International standards, the unit is compliant with UL and CSA certifications, ensuring high reliability and safety. The LC1D series from Schneider Electric integrates easily into control systems and is designed for simple, efficient motor starter setups.
Equipped with three main NO contacts for power switching. Makes installation simple via DIN rail mounting. Designed for motor control and resistive load applications. Low heat dissipation of 5 watts for energy efficient use.
Includes an impulse voltage resistance of up to 6kV. Auxiliary contact setup with 1 NO and 1 NC contacts. Wide operating temperature range from -40°C to 60°C. Protected screw connections with IP20 finger-safe terminals. Certified to UL and CSA standards.
Schneider Electric LC1D40AM7 contactors are suited for various industrial sectors including manufacturing, automation, HVAC, and material handling. Upgrade your motor control systems with a reliable and efficient solution engineered to meet industrial standards.
Browse the Automation & Control Gear category on EnvMart for more Schneider Electric Contactors and related control components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D40AM7 contactor has a power rating of 30kW.
This model supports a maximum contact current of 40A.
The coil voltage for this contactor is 220V AC.
The dimensions of this contactor are 122mm in length, 55mm in width, and 120mm in depth.
It mounts easily on DIN rails, which facilitates quick installation.
The operating temperature range for this model is from -40°C to 60°C.
This contactor is equipped with three normally open (NO) main contacts.
It supports an auxiliary contact configuration of 1 normally open (NO) and 1 normally closed (NC) contact.
This model is designed to withstand impulse voltages up to 6kV and has IP20 finger-safe terminals.
It is compliant with UL and CSA standards, ensuring reliability and safety.
This contactor is suitable for motor control and resistive load applications, including use in CNC machines, industrial conveyors, lifts, and escalators.
It features screw connections that are IP20 finger-safe, marked for both North American and International standards.
