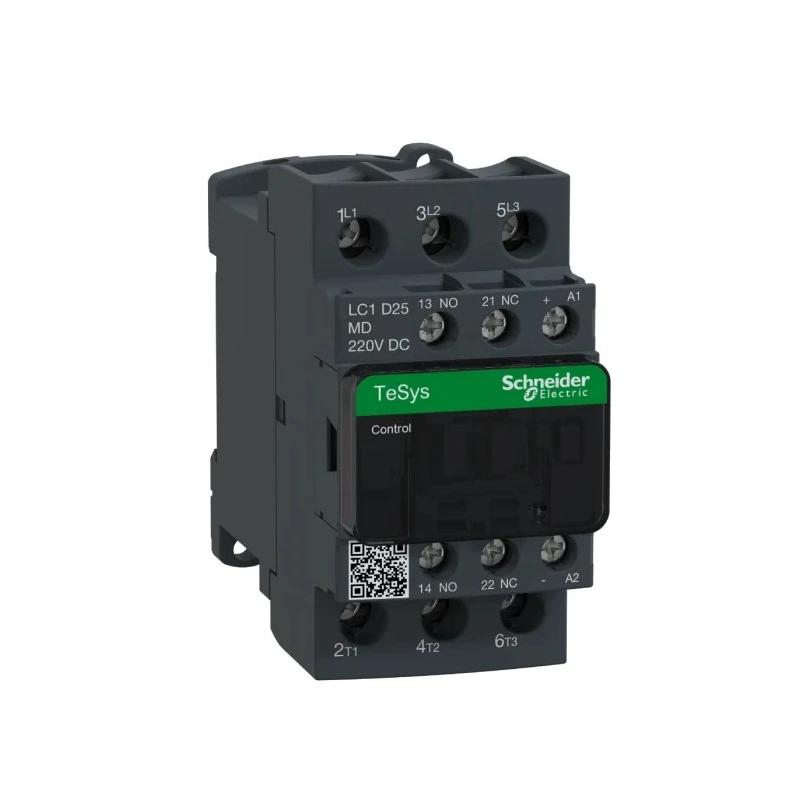

Schneider Electric LC1D Contactor 3-Pole 25 A 3 HP 220V Motor Control DIN Rail Mount LC1D25MD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D25MD |
| Depth | 101mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 3HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 220V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Features a 3-pole configuration suitable for various motor control and resistive load applications.
- Rated for 25A contact current with support for 3 HP power rating at 220V.
- Operates with a coil voltage of 230V DC ensuring reliable switching functions.
- Mounts easily on DIN rail facilitating installation in industrial electrical panels.
- Equipped with 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO and 1 NC).
- Designed with screw terminals for secure and safe electrical connections.
- Durable construction with operational temperature range from -5°C to 60°C.
- Complies with CSA and UL standards ensuring global safety certifications.
Product Description
Schneider Electric presents the LC1D25MD contactor, a robust 3-pole contactor engineered for motor control and resistive load applications. Rated at 25 Amperes and suitable for up to 3 HP 220V motors, this device excels in switching tasks requiring reliable electrical performance.
The contactor features a coil voltage of 230V DC, delivering consistent actuation under demanding operational conditions. Its design incorporates DIN rail mounting for straightforward panel installation, optimizing space and maintenance convenience.
Equipped with three normally open (NO) power poles and two auxiliary contacts (one normally open, one normally closed), the LC1D25MD ensures versatile control capabilities within industrial automation systems. The screw-type terminals enhance secure connections, essential for long-term durability and safety.
Operating effectively within a temperature range of -5°C to 60°C, this contactor suits diverse environments. It conforms to strict industry standards including CSA and UL approvals, underscoring its quality and safety credentials.
The compact footprint - measuring 85mm in length, 45mm in width, and 101mm in depth - allows seamless integration into electrical control panels without sacrificing space. Manufactured in France, the product reflects Schneider Electric's commitment to quality and durability.
Typical applications include motor control setups, resistive load switching, and automation systems across industrial manufacturing, HVAC, water treatment, and other sectors requiring dependable electrical switching equipment.
Features a 3-pole configuration suitable for various motor control and resistive load applications. Rated for 25A contact current with support for 3 HP power rating at 220V. Operates with a coil voltage of 230V DC ensuring reliable switching functions.
Mounts easily on DIN rail facilitating installation in industrial electrical panels. Equipped with 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO and 1 NC). Designed with screw terminals for secure and safe electrical connections.
Durable construction with operational temperature range from -5°C to 60°C. Complies with CSA and UL standards ensuring global safety certifications. Dimensions: 85mm length, 45mm width, and 101mm depth for compact panel integration.
Manufactured in France adhering to high-quality standards. Discover a wide range of Schneider Electric Contactors and automation gear at EnvMart to optimize your industrial control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D25MD contactor has a power rating of 3 HP at 220V.
This model is rated for a maximum contact current of 25A.
It supports DIN rail mounting, making installation in electrical panels straightforward.
The coil voltage for this contactor is 230V DC.
The contactor features a 3-pole configuration.
It is equipped with 2 auxiliary contacts, consisting of 1 normally open (NO) and 1 normally closed (NC).
The operational temperature range for the LC1D25MD is from -5°C to 60°C.
The dimensions are 85mm in length, 45mm in width, and 101mm in depth.
This contactor complies with CSA and UL standards, ensuring safety certifications.
It is suitable for motor control and resistive load applications.
The contactor is designed with screw terminals for secure electrical connections.
It is manufactured in France, reflecting high-quality standards.
