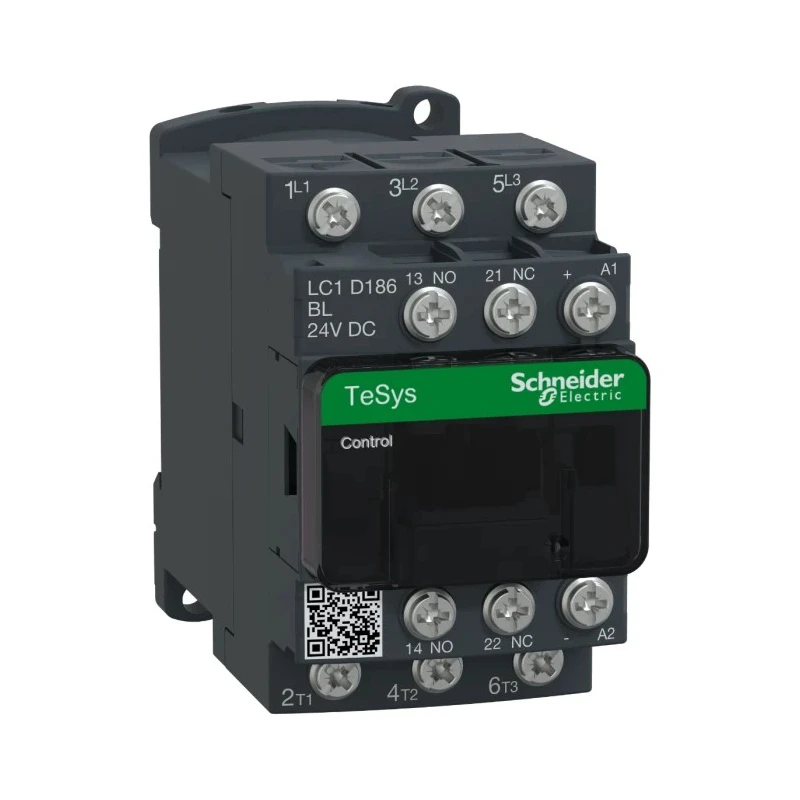

Schneider Electric 3-Pole Contactor, 24V DC Coil, 18 A, 15 kW, 3 NO, 690V AC LC1D186BL
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Length | 45mm |
| Model | LC1D186BL |
| Depth | 77mm |
| Width | 95mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Pole and Throw Configuration | 3P |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- This contactor has a coil voltage of 24V DC suitable for control circuits.
- Features three poles with a normal state configuration of 3 NO contacts.
- Equipped with two auxiliary contacts, configured as 1 NO and 1 NC.
- Designed for use with contact voltage up to 690V AC.
- Mounts easily on DIN rail for flexible installation.
- Constructed with lug ring terminal type for secure wiring connections.
- Operates reliably between -5°C and 60°C operating temperatures.
- High quality and compliance with multiple international standards including IEC and UL.
Product Description
Schneider Electric LC1D186BL is a 3-pole contactor engineered for reliable and efficient control of resistive loads and motor applications. It incorporates a 24V DC coil, enabling robust coil operation within industrial automation and control systems.
This contactor features an 18 A contact current rating and a power capacity of 15 kW at 690V AC, making it suitable for a wide range of industrial motors, pumps, and heating applications. The device integrates three normally open (NO) contacts and two auxiliary contacts set as 1 NO and 1 normally closed (NC), which facilitate advanced switching and control signaling functions.
Mounting is facilitated by a DIN rail system, simplifying installation and maintenance within electrical panels. The lug ring terminals ensure secure and reliable electrical connections. Its operational temperature range from -5°C to 60°C allows functioning in diverse industrial environments.
This model complies with international standards such as IEC 60947, UL508, CSA, and multiple others, guaranteeing safety and performance. The compact form factor - 95 mm wide, 77 mm deep, and 45 mm long - promotes space efficiency in panel layouts.
The LC1D186BL contactor is designed with sustainability in mind, featuring a designed-for-disassembly concept that supports environmentally responsible practices. It is built to withstand rigorous industrial use across sectors like manufacturing, HVAC, water treatment, and automation systems.
This contactor applies primarily to resistive load control and motor starting with utilization categories AC-1 and AC-3. Ideal for applications including pumps, compressors, mixers, conveyors, lifts, escalators, and air conditioning units.
Accessories available include auxiliary contact blocks, timing modules, voltage suppressors, and more to extend functionality.
This product is new, manufactured in Indonesia by Schneider Electric. It offers an excellent solution for industrial and commercial electrical control needs. Explore more Schneider Electric products and solutions in the Automation & Control Gear category at EnvMart.
