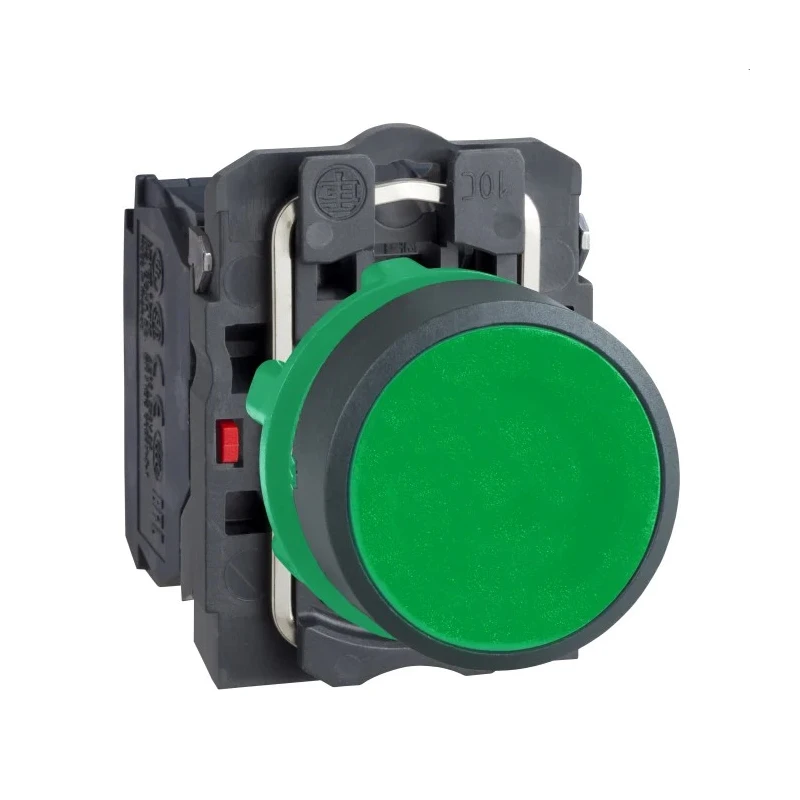

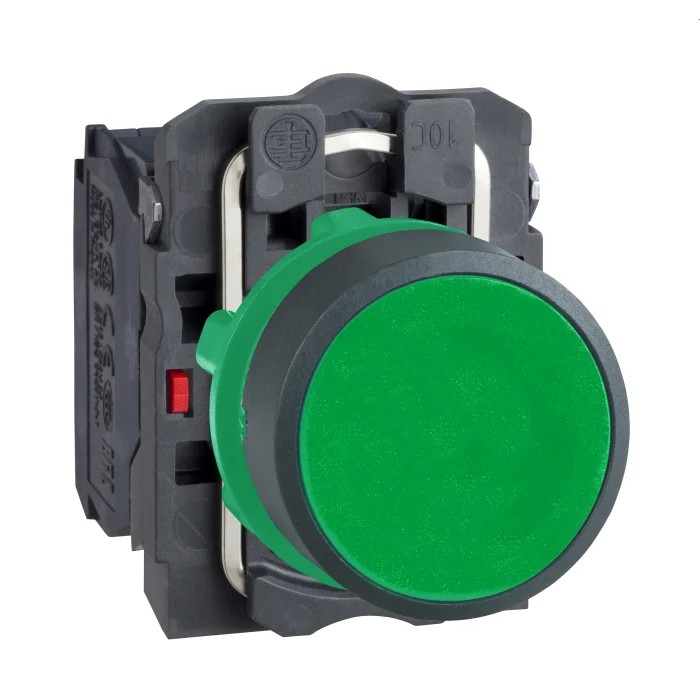

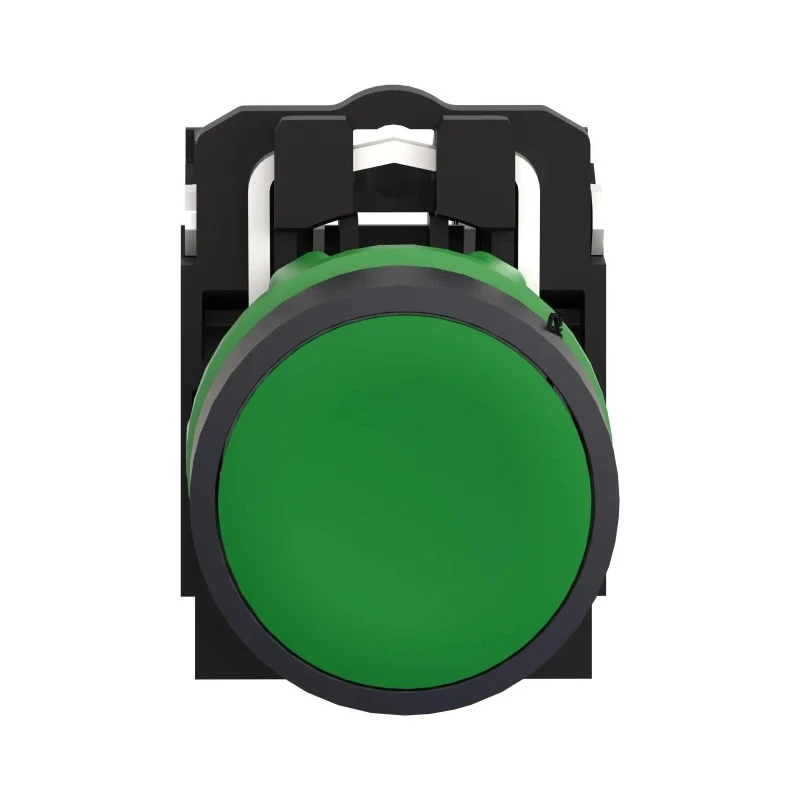

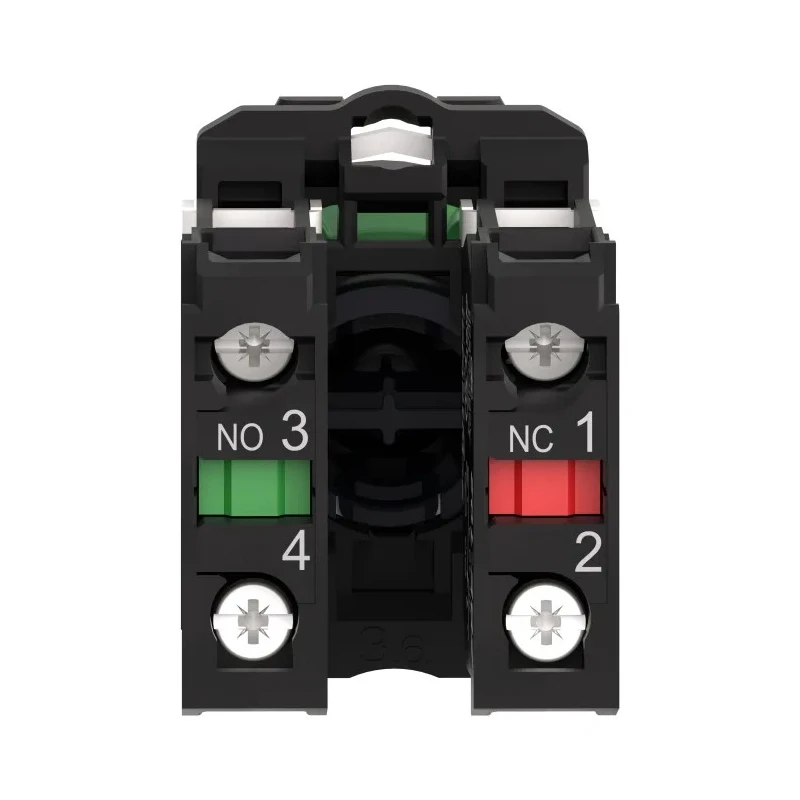

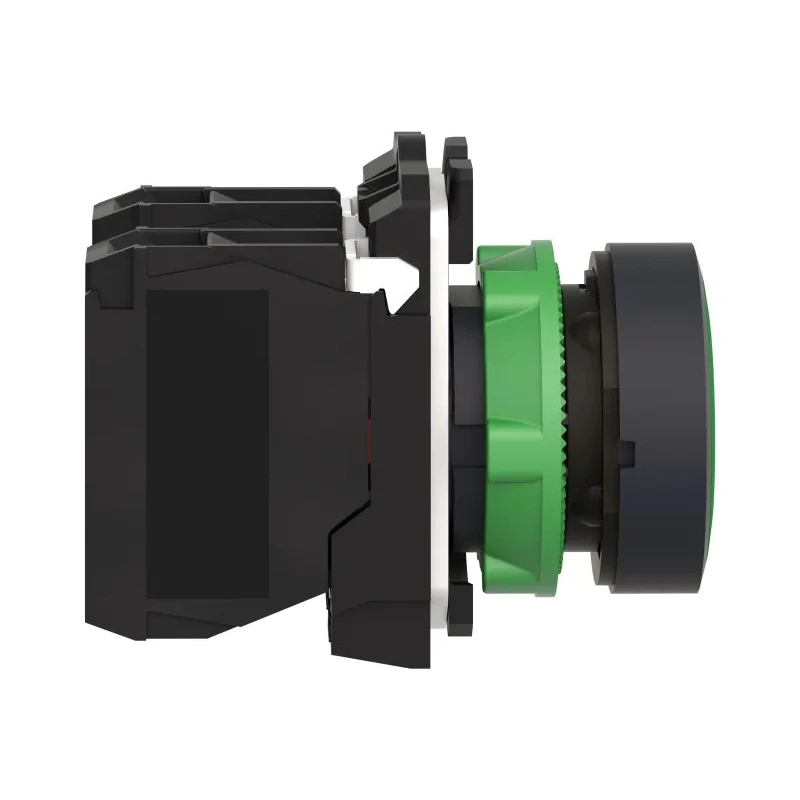

Schneider Electric Harmony XB5 Series Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout, SPDT, Green LED XB5AA35
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Height | 42mm |
| Length | 52mm |
| Model | XB5AA35 |
| Width | 30mm |
| Mount Type | Panel |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Screw |
| LED Colour | Green |
| Switch Operation | Spring Return |
| Actuator Colour | Green |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 10A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
Key Features
- The actuator color is green with a round style design.
- It features a green LED indicator but is not illuminated by default.
- The switch contact current rating is 10A for both AC and DC at 600 V.
- Operating temperature ranges from -25°C to 70°C, ensuring durability in diverse environments.
- Mounting is via panel with screw-type terminals for reliable connections.
- Compact dimensions of 42 mm height, 52 mm length, and 30 mm width suit various control panels.
- Product meets international standards including IEC, UL, CSA, JIS, and NEMA approvals.
- Designed to be repairable by the end user, supporting sustainability initiatives.
Product Description
Schneider Electric XB5AA35 Harmony XB5 Series push button switch is a high-quality electrical control device featuring spring return mechanism and SPDT (Single Pole Double Throw) contact configuration. This panel-mounted switch requires a 22 mm cutout and offers robust performance at contact voltages of 600 V DC and AC with a switch contact current of 10A. It is fitted with a green actuator and green LED, enhancing visual status indication in electrical control panels.
The switch is designed for industrial and commercial automation applications where reliable operator interface devices are critical. It supports an operating temperature range from -25°C to 70°C, making it suitable for use in harsh environments and complies with global certifications such as EN/IEC 60947, UL 508, CSA C22.2, and Japanese JIS standards, ensuring safety and compatibility.
Its compact form factor with dimensions of 42 mm height, 52 mm length, and 30 mm width allows integration into various panel setups while maintaining easy accessibility. The screw terminal type ensures secure and straightforward installation. As a Better World product, this switch is repairable by end users, promoting sustainable product life cycles.
This push button switch is ideal for control panel builders, industrial automation systems, machinery control stations, and HVAC applications. The high voltage and current ratings allow it to switch a range of electrical loads safely, supporting versatility in design.
The actuator color is green with a round design for ergonomic operation. Spring return action enables reliable momentary switching. Green LED provides clear status feedback. Meets multiple international safety and performance standards.
Compact panel mounting with 22 mm cutout size. Screw terminals offer robust electrical connections. Operating temperature range from -25°C to 70°C ensures wide environmental compatibility. Repairable by end user to reduce waste and improve sustainability.
Schneider Electric product range on EnvMart offers trusted solutions for electrical and automation applications. Explore more Harmony XB5 series Push Button Switches for enhanced operational control and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch contact current rating is 10A for both AC and DC at 600 V.
This model has dimensions of 42 mm in height, 52 mm in length, and 30 mm in width.
The required panel cutout size for this switch is 22 mm.
It operates within a temperature range of -25°C to 70°C.
It uses screw-type terminals for reliable connections.
The contact configuration is SPDT (Single Pole Double Throw).
The green LED indicator is not illuminated by default.
The actuator color is green with a round style design.
It meets international standards including IEC, UL, CSA, JIS, and NEMA approvals.
This switch is suitable for industrial and commercial automation applications, control panel builders, and HVAC applications.
Yes, it is designed to be repairable by the end user, supporting sustainability initiatives.
The switch features a spring return operation mechanism.
