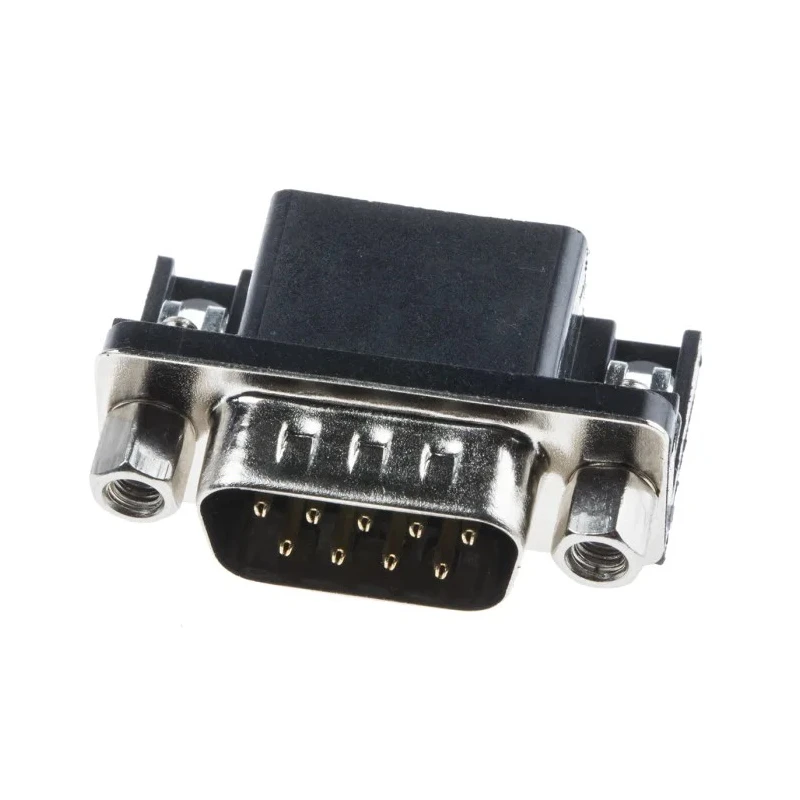

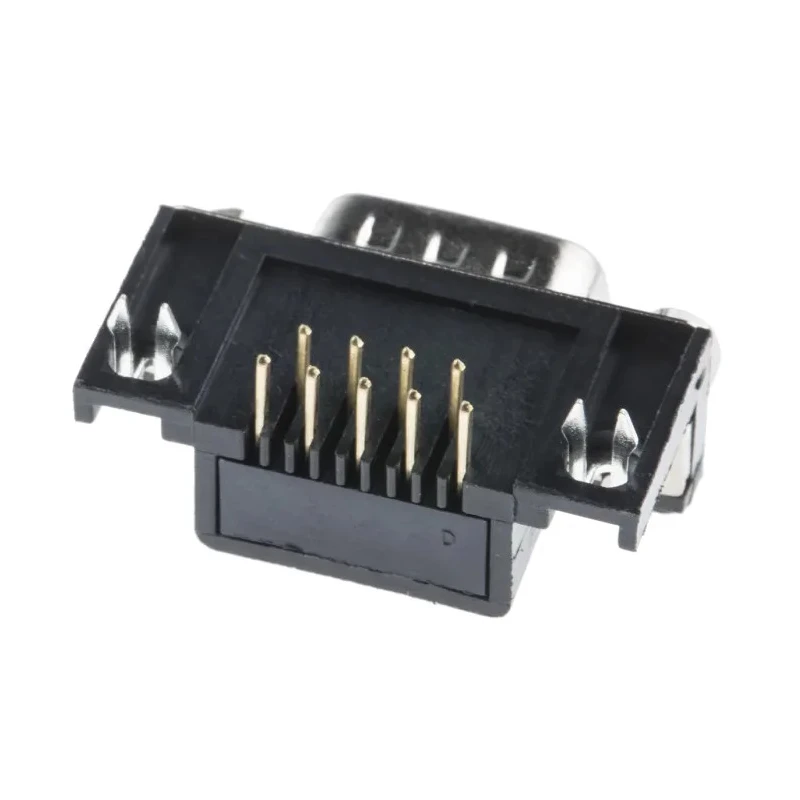

RS PRO 107 9 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock Male 811-7115

RS PRO 811-7115 is a 9 Way Right Angle Through Hole D-Sub Connector, featuring a 2.77 mm pitch and designed to provide dependable electrical connections on printed circuit boards. This male connector is specifically engineered with a right angle orientation for space-saving PCB layouts and solid mechanical support.

The housing is constructed from fibreglass reinforced polybutylene terephthalate (PBT), rated UL 94V-0 for flame resistance, ensuring durability and safety under demanding conditions. Contacts are brass with a gold plating that enhances electrical conductivity and protects against corrosion, while the connector shell is made of nickel plated steel for robust shielding.

This connector supports a current rating of 3A and a voltage rating of 250V, suitable for a wide range of electronic and industrial applications. Operating temperature ranges from −55°C up to 105°C, making it suitable for environments with significant temperature variations.

The connector uses solder termination type contacts, facilitating secure and stable soldered connections on printed circuit boards. Its mounting hardware includes 4 to 40 UNC screw locks to firmly secure the connection and prevent accidental disconnections in vibration-prone environments.

The 9.4 mm footprint and 2.77 mm pitch conform to D-Sub industry standards, allowing compatibility with a variety of mating connectors and applications. Provides reliable 9 contact electrical connections at 3A current capacity.

Right angle orientation with 2.77 mm pitch designed for PCB mounting. Durable fibreglass reinforced polybutylene terephthalate housing. Brass contacts plated with gold for corrosion resistance and electrical conductivity.

Supports operating voltage up to 250V with solder termination type. Temperature range from −55°C to 105°C for robust industrial performance. Includes 4 to 40 UNC screw lock hardware for secure connectors. Connector gender is male with nickel plated steel shell for mechanical protection.

Ideal for electronic, industrial, and power connector applications.

This RS PRO D-Sub Connector is well suited for applications in electronics manufacturing, power supply connections, industrial control systems, and equipment requiring secure and robust electrical interfacing. It is a dependable component for ensuring signal integrity and durability in high-reliability contexts.
