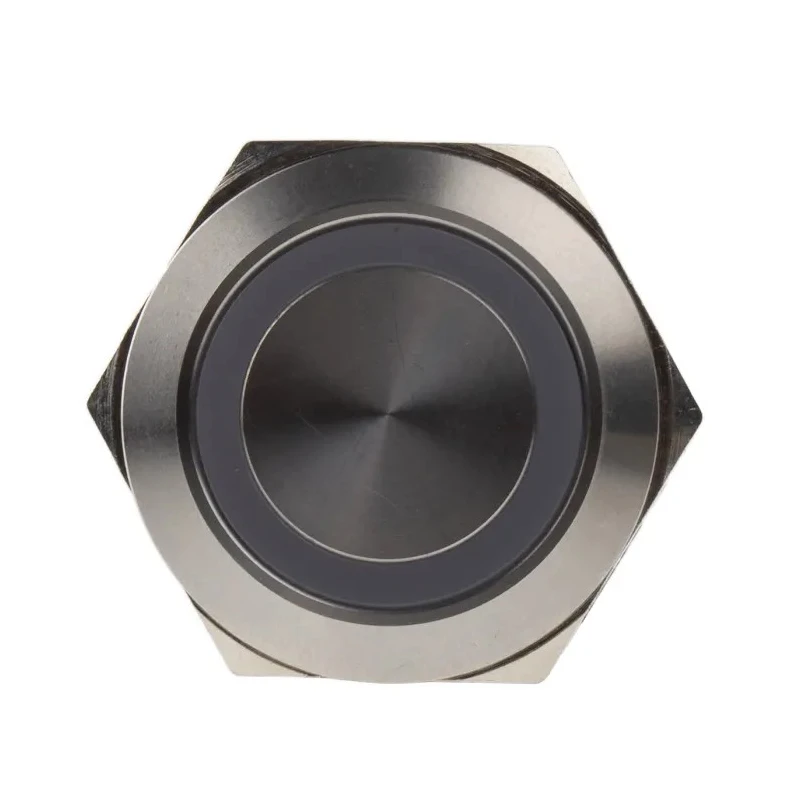

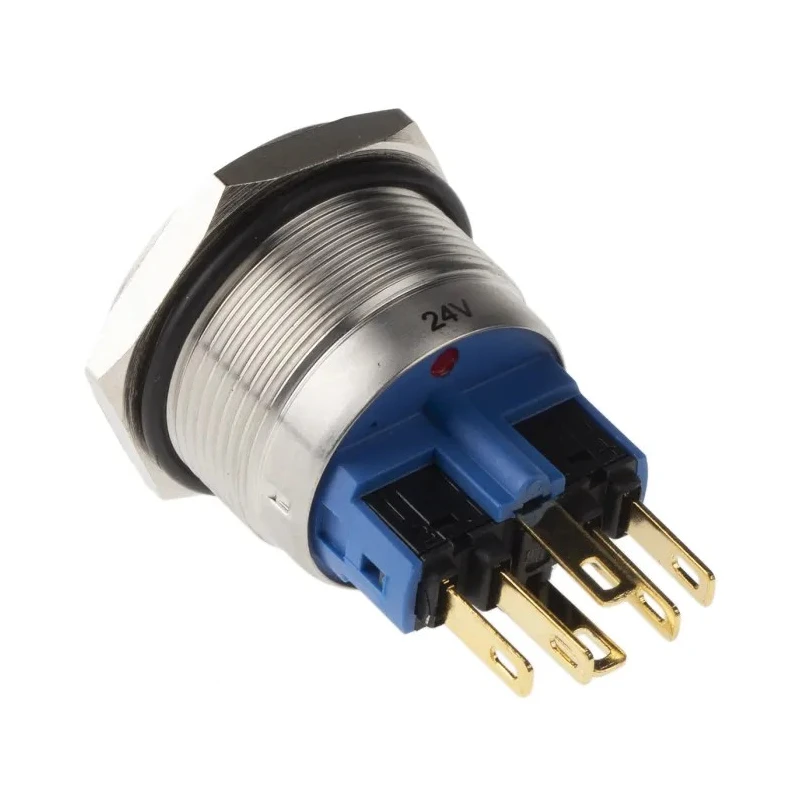

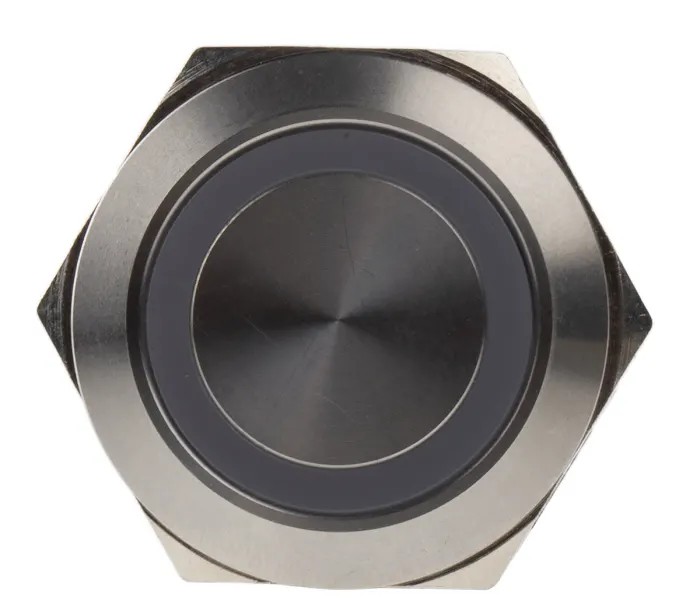

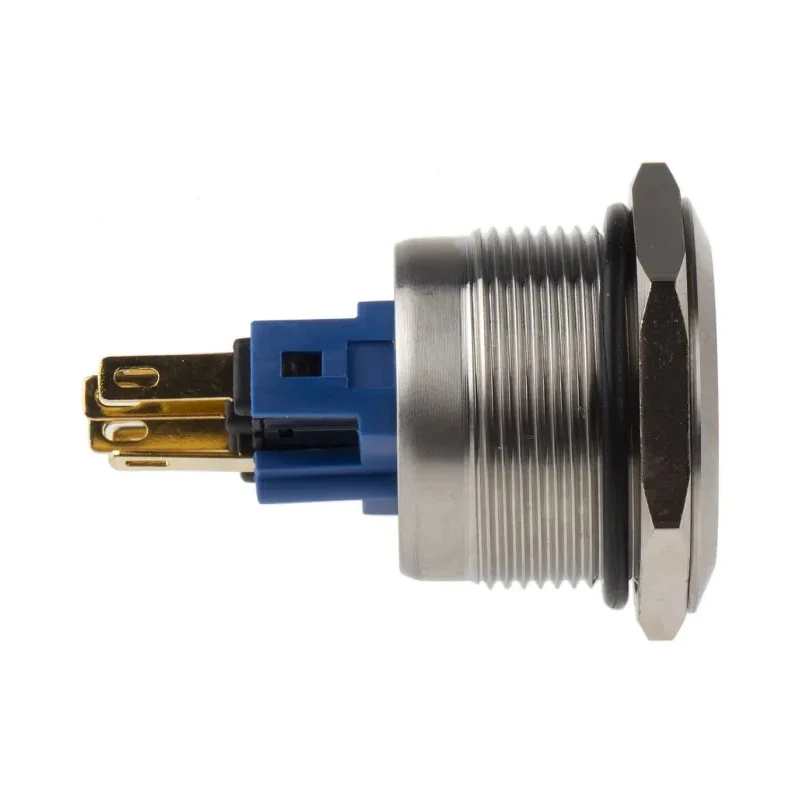

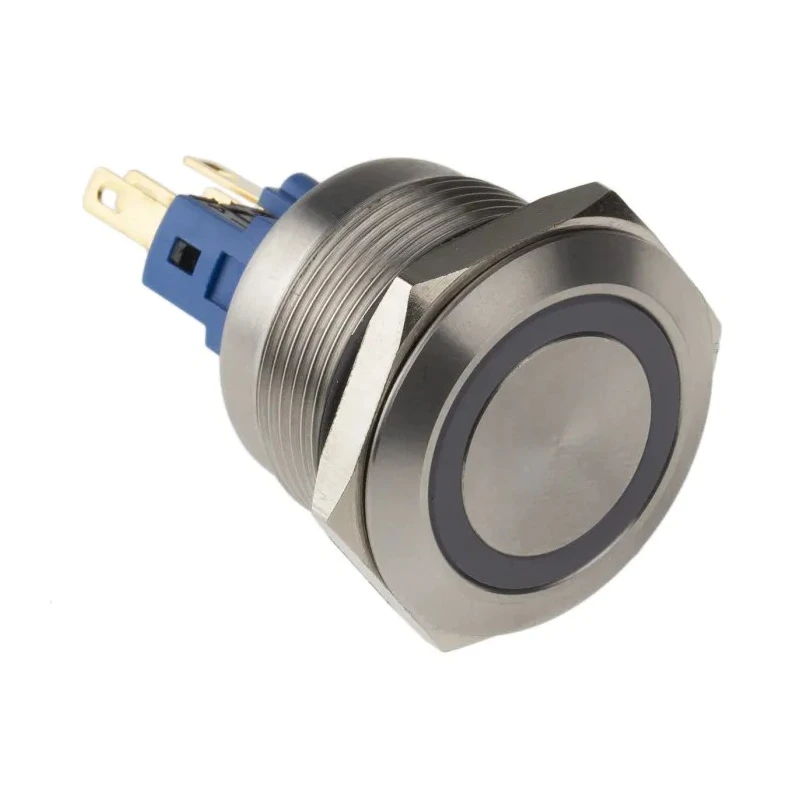

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 22 mm Cutout, SPDT, Red LED, IP65/IP67, 250 V AC, 5A 811-8553

RS PRO 811-8553 is a high-quality illuminated momentary push button switch designed for panel mounting with a 22 mm cutout. This switch features a single pole double throw (SPDT) contact configuration and a red LED for clear indication. It operates reliably at 250 V AC with a contact current rating of 5A.

The switch actuator is flat and silver-colored, providing a sleek and ergonomic interface. Its quick connect terminals allow for easy and secure installation. The device is anti-vandal rated, making it suitable for environments exposed to physical impacts and vandalism, such as public kiosks or outdoor control panels.

With ingress protections rated at IP65 and IP67, the switch offers excellent resistance against dust and water, suitable for outdoor and harsh industrial conditions. Stainless steel construction combined with copper alloy silver plated contacts and brass terminals ensures durable performance and longevity. Compliance with RoHS standards attests to its environmental safety.

Designed for industrial, commercial, HVAC, and automation applications, this push button switch can withstand operating temperatures as low as -20°C. It guarantees a long life expectancy with 50,000 operational cycles and requires a maximum operating force of 4 Newtons. This product is made in Taiwan, Province Of China.

The switch supports a contact current rating of 5A and operates at 250 V AC voltage. It features a flat silver actuator and quick connect terminal for reliable operation. Designed for robust applications with IP65 and IP67 ingress protection ratings.

Suitable for anti-vandal applications requiring resistance to water and dust ingress. Constructed with stainless steel, copper alloy, and silver plated contacts for durability. Meets RoHS standards ensuring environmental compliance.

Offers an operating temperature range down to -20°C for versatile environmental use. Backed by a long operating life of 50,000 cycles with a max operating force of 4N. Originates from Taiwan, Province Of China.

For engineers and technicians requiring reliable, durable illuminated push button switches for electrical control and automation, RS PRO 811-8553 offers an excellent combination of performance, protection, and build quality. Explore more products in the Push Button Switches & Components category for comprehensive electrical solutions.
