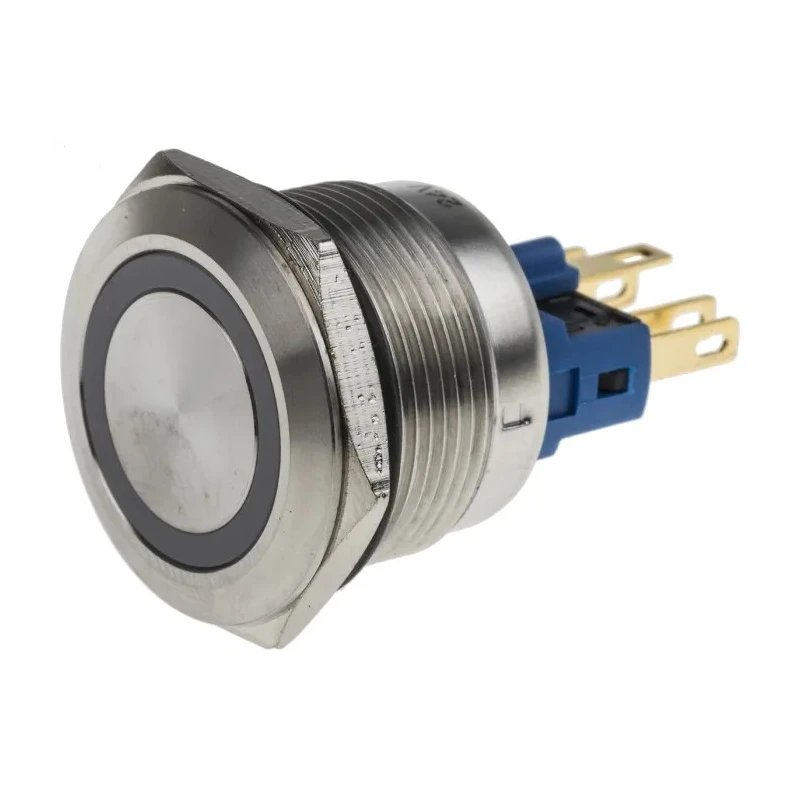

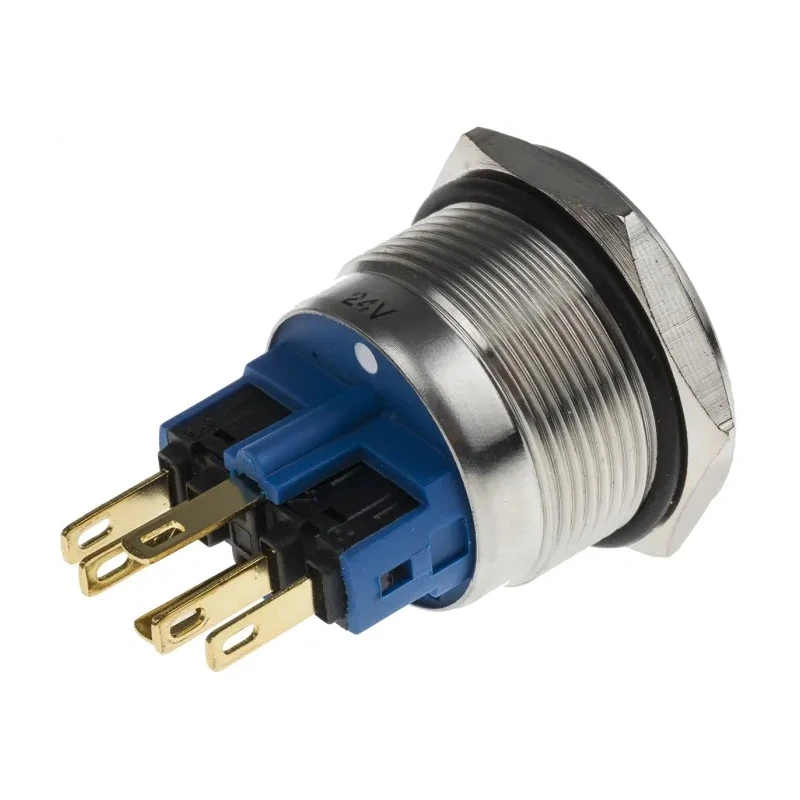

RS PRO Illuminated Momentary Push Button Switch, Panel Mount, 22 mm Cutout, SPDT, White LED, IP65 IP67, 250 V AC 811-8550
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 811-8550 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Designed for panel mounting with quick connect terminals for easy installation.
- Features a flat silver actuator with white LED illumination for clear indication.
- Rated for 250 V AC and 250 V DC operation with a 5A contact current.
- Environmental protection rated to IP65 and IP67 for water and dust resistance.
- Constructed with stainless steel and silver plated copper alloy contacts for durability.
- Operational temperature range down to -20°C allowing use in various environments.
- Anti-vandal design suited for public kiosks, outdoor panels, and harsh conditions.
- Operating life of 50,000 cycles with a maximum operating force of 4 Newtons.
Product Description
RS PRO 811-8550 is a high-quality illuminated momentary push button switch designed for robust industrial and commercial applications. Featuring a 22 mm panel cutout, this SPDT switch is ideal for panel mounting and includes quick connect terminals to facilitate straightforward wiring.
The actuator is silver-colored with a flat style, illuminated by a white LED to provide clear user feedback. This switch operates reliably at both 250 V AC and 250 V DC voltages with a 5A contact current rating, suitable for a wide range of electrical control circuits.
Built to withstand tough environments, the switch has an IP65 and IP67 rating offering excellent protection against dust and water ingress. Its stainless steel body, combined with silver plated copper alloy contacts and brass terminals, ensures long-lasting durability and resistance to vandalism.
With an operating life of 50,000 cycles and a maximum operating force of 4 Newtons, it guarantees consistent performance over prolonged use. The device functions reliably in temperature conditions as low as -20°C, making it suitable for varied industrial, laboratory, construction, HVAC, manufacturing, and commercial applications.
This RS PRO Push Button Switch is RoHS compliant, aligning with environmental and safety regulations. Its rugged anti-vandal design makes it suitable for public kiosks, outdoor panels, or other installations where resistance to physical tampering is essential.
Designed for panel mount applications with 22 mm cutout size. Momentary switch operation offering SPDT contact configuration. White LED illumination for visual status feedback. Quick connect terminal type allowing fast and easy wiring.
High ingress protection rated IP65 and IP67 for dust and water resistance. Durable stainless steel body and silver plated contacts for longevity. Operating temperature range from -20°C ensuring wide environmental use. Robust design suitable for industrial, construction, and commercial use cases.
RoHS compliance ensuring adherence to environmental standards. Explore more components and solutions in the Electronics & Electricals category at EnvMart for comprehensive industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating current for this model is 5A.
It operates reliably at both 250 V AC and 250 V DC.
This switch has an IP65 and IP67 rating, providing excellent protection against dust and water ingress.
The required panel cutout size for installation is 22 mm.
The operational temperature range extends down to -20°C, allowing for use in various environments.
It features quick connect terminals for easy installation and wiring.
The actuator is flat in style and silver in color.
This switch has an operating life of 50,000 cycles.
Yes, it is RoHS compliant, aligning with environmental and safety regulations.
It features a Single Pole Double Throw (SPDT) contact configuration.
It is suitable for industrial, laboratory, construction, HVAC, manufacturing, and commercial applications.
The switch is constructed with a stainless steel body and silver plated copper alloy contacts for durability.
