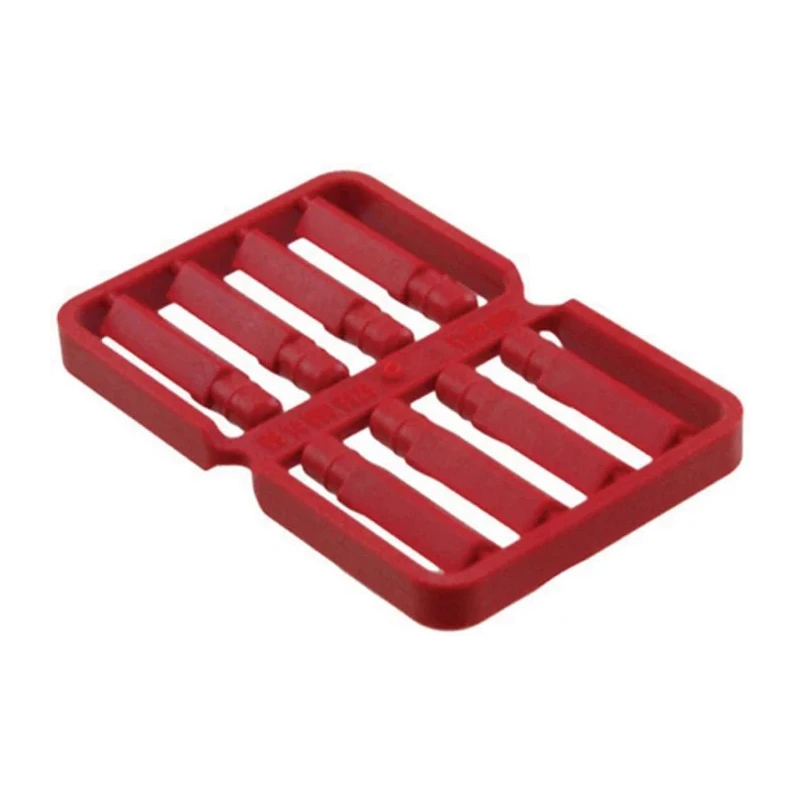

HARTING Coding Pin Han-Modular Series 1 Way Red Polycarbonate 10B 09140009929
Specifications
| Country of Origin | Germany |
|---|---|
| Size | 10B |
| Brand | HARTING |
| Material | Polycarbonate |
| Colour | Red |
| Gender | Male |
| Series | Han-Modular |
| Number of Rows | 1 |
| Accessory Type | Coding Pin |
| For Use With | Hood/Housing |
| Number of Contacts | 1 |
| Minimum Wire Size mm² | 4mm² |
| Maximum Wire Size mm² | 10mm² |
| Cable Entry Angle | Top |
Key Features
- Designed for Han-Modular series with one contact in a single row configuration.
- Top cable entry angle for convenient wiring access.
- Constructed from robust polycarbonate ensuring durability and reliability.
- Compatible with modular ECO hoods and housings with IP20 or IP65 rating.
- Operating temperature range -40 to +85°C suitable for industrial environments.
- Allows over 500 mating cycles ensuring longevity in use.
- Complies with DIN EN 60 664-1 and DIN EN 61 984 approvals.
- Manufactured in Germany, ensuring high production quality standards.
Product Description
HARTING 09140009929 Coding Pin Han-Modular Series 1 Way is a high-quality male accessory part designed for use with Hood and Housing assemblies in power connector systems. The coding pin is constructed from red polycarbonate, providing both strength and durability in demanding electrical and industrial applications.
This coding pin belongs to the Han-Modular series, a flexible connector system that allows inclusion of various insert modules and frames, making it suitable for customized solutions for signal, power, and pneumatic lines within a single connector assembly.
The component supports wire sizes from 4mm² to 10mm² with a single contact arranged in one row, featuring a top cable entry angle to facilitate easy installation. It is compatible with Han-Modular ECO hoods that offer IP20 or IP65 ingress protection ratings and include features such as PE marking and NBR seals for reliable environmental resistance.
Operating temperature ranges from -40°C up to +85°C, making it suitable for industrial, manufacturing, and electrical installation environments where temperature stability is required. The coding pin supports over 500 mating cycles, ensuring a reliable connection over extended usage periods.
Manufactured in Germany, this product meets DIN EN 60 664-1 and DIN EN 61 984 standards to guarantee safety and quality compliance. Durable red polycarbonate material construction. Compatible with Han-Modular series insert modules and housings.
Supports wire sizes from 4mm² to 10mm² in a single contact row. Top cable entry angle for simplified wiring installations. Operating temperature -40°C to +85°C for varied industrial applications. Over 500 mating cycles for long-term reliability.
Meets relevant DIN EN safety and quality standards. Ideal for power connector assemblies in industrial and electrical environments.
This coding pin is an essential component for configuring Han-Modular connectors to ensure correct pin coding and is suitable for use in electronic components, power, and connector assemblies. It fits seamlessly with HARTING hood and housing series, offering flexible and secure connection options.
