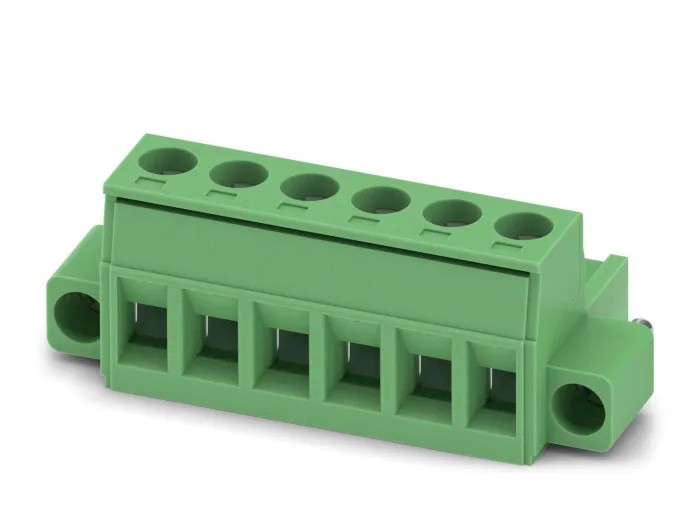

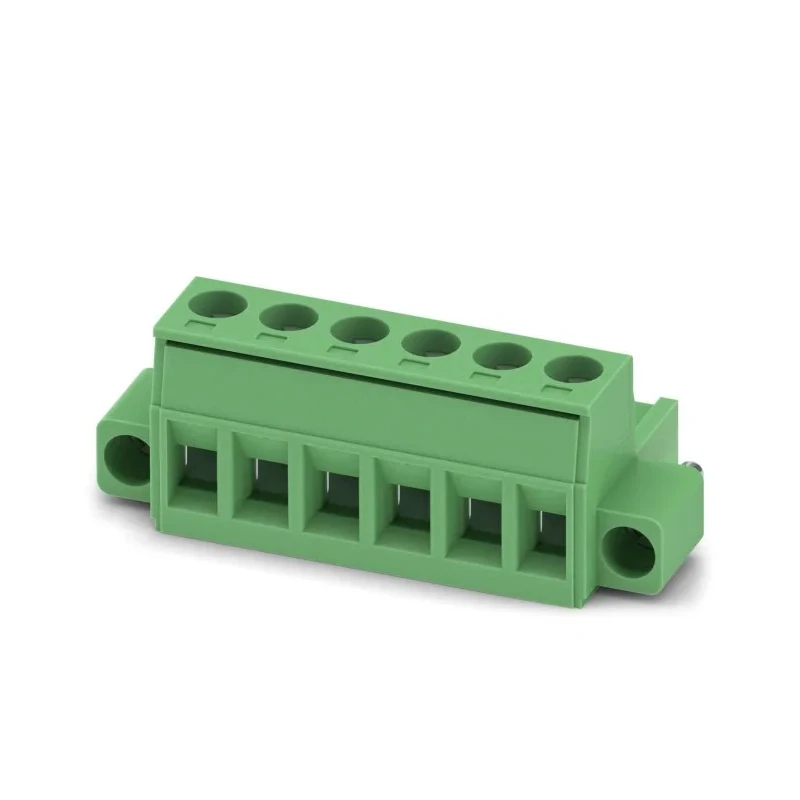

Phoenix Contact MSTB 2.5/6-STF-5.08 Series Pluggable Terminal Block, 6-Contact, 5.08 mm Pitch, 320 V, Current 12 A 1778027

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MSTB 2.5/6-STF-5.08 Series Pluggable Terminal Block, 6-Contact, 5.08 mm Pitch, 320 V, Current 12 A 1778027

Name: Phoenix Contact MSTB 2.5/6-STF-5.08 Series Pluggable Terminal Block, 6-Contact, 5.08 mm Pitch, 320 V, Current 12 A 1778027
Brand: PHOENIX CONTACT
SKU: 373715
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	18.3mm
Model	1778027
Depth	15mm
Width	40.49mm
Housing Material	Polyamide
Series	MSTB 2.5/6-STF-5.08
Number of Rows	1
Pitch	5.08mm
Number of Contacts	6
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw Connection with Tension Sleeve

Key Features

The housing is made of durable polyamide providing high insulation.
Supports wire sizes ranging from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).
Single-row design with straight orientation offers easy PCB mounting.
Screw connection with tension sleeve ensures secure and reliable wiring.
Compact dimensions with length 18.3 mm, width 40.49 mm, and depth 15 mm.
Connector gender is female, compliant with MSTB 2.5/6-STF-5.08 series standards.
Suitable for electronic, industrial automation, and control applications.

Product Description

Phoenix Contact 1778027 MSTB 2.5/6-STF-5.08 Series Pluggable Terminal Block is a high-quality connector designed for reliable electrical connections in industrial and electronic applications. It features 6 contact points arranged in a single row and uses a 5.08 mm pitch for optimal spacing on printed circuit boards.

This terminal block supports a voltage rating of 320 V and a current rating of 12 A, ensuring robust performance under demanding usage. The housing material is polyamide, chosen for its excellent insulating properties and durability.

The connector utilizes a screw connection with a tension sleeve, allowing wires ranging from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG) to be securely clamped, providing strong contact and minimizing temperature rise during operation. Its female connector gender and straight orientation facilitate straightforward and reliable PCB assembly.

With compact dimensions measuring 18.3 mm in length, 40.49 mm in width, and 15 mm in depth, this terminal block is specifically designed for space-saving applications in industrial automation systems, control gear, and electronic assemblies.

The MSTB 2.5/6-STF-5.08 series is well-regarded for its secure screw connection, well-known worldwide connection principles, and long service life. These features promote low maintenance requirements and dependable electrical performance.

The housing is made of durable polyamide providing high insulation. Supports wire sizes ranging from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG). Single-row design with straight orientation offers easy PCB mounting. Screw connection with tension sleeve ensures secure and reliable wiring.

Compact dimensions with length 18.3 mm, width 40.49 mm, and depth 15 mm. Connector gender is female, compliant with MSTB 2.5/6-STF-5.08 series standards. Suitable for electronic, industrial automation, and control applications.

Ideal for use in manufacturing, industrial control systems, electronic prototypes, and water treatment systems requiring compact and reliable terminal connections. Phoenix Contact products are recognized globally for quality and technical innovation.
