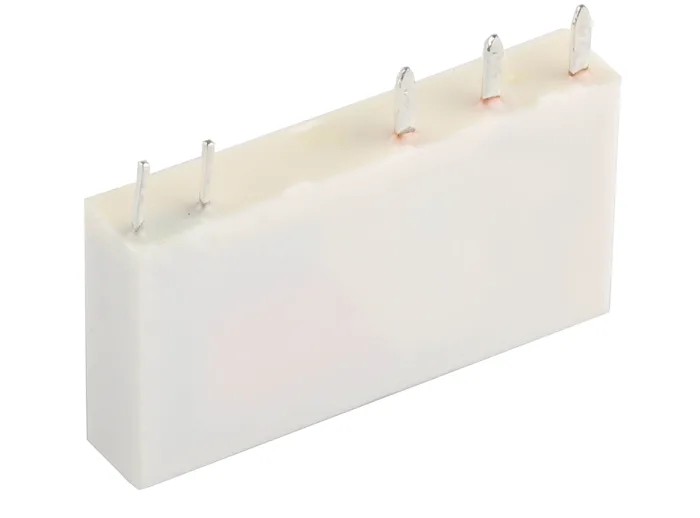

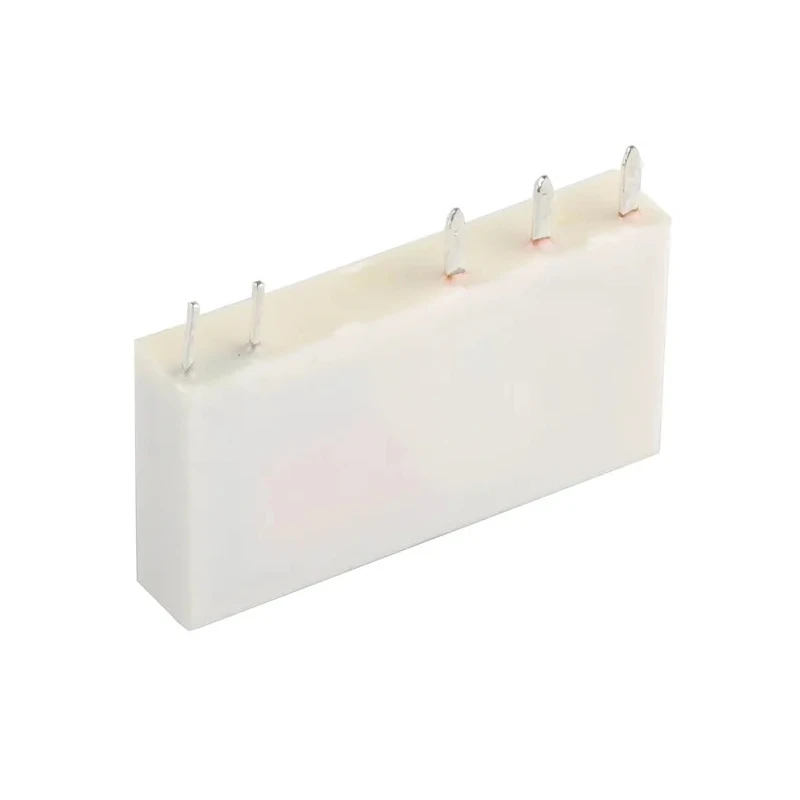

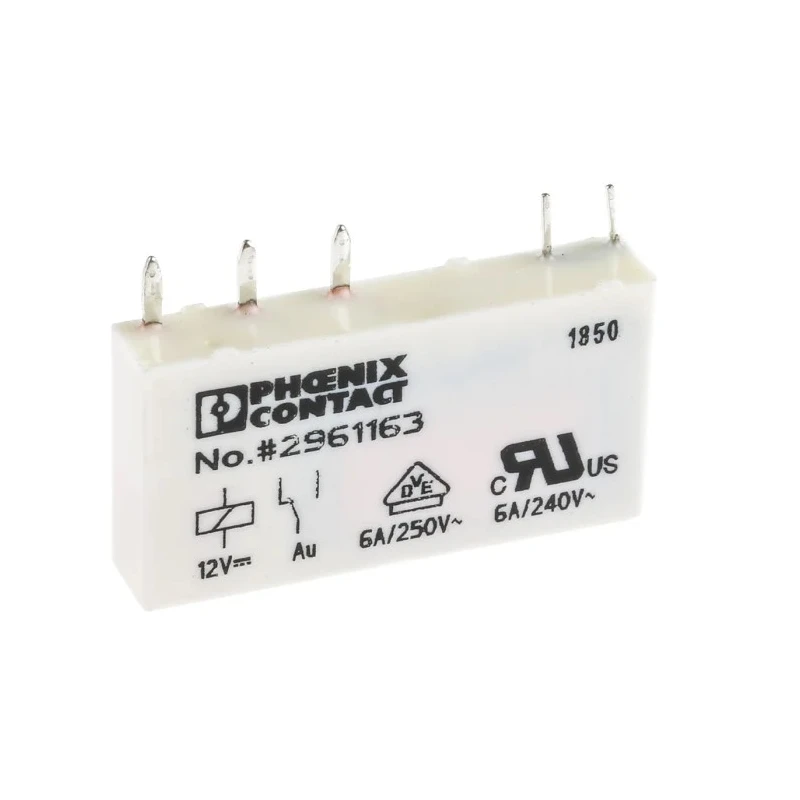

Phoenix Contact PCB Power Relay, 12V DC Coil, 10mA Switching Current, SPDT Contact Configuration 2961163
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Phoenix Contact |
| Height | 28mm |
| Length | 5mm |
| Model | 2961163 |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | REL-MR- 12DC/21AU |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10mA |
| Terminal type | PCB Pin |
| Standards/Approvals | VDE-PZI, GL, GOST, UL, CSA, cUL |
| Coil Resistance | 848Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 36V dc |
| Switching AC Voltage | 36V ac |
Key Features
- The SPDT contact configuration allows versatile switching options in electronic circuits.
- The relay operates efficiently at a coil voltage of 12V DC with low coil resistance of 848Ω.
- It supports switching voltages up to 36V AC and 36V DC, suitable for low-power applications.
- Durable silver alloy contact material ensures longevity and reliable electrical performance.
- Designed to function reliably between -40°C and +85°C for various industrial environments.
- This relay features a compact form factor measuring 5mm length, 15mm width, and 28mm height.
- Terminal type is suitable for PCB pin mounting for easy integration into circuit boards.
- Designed for up to 2 million operational cycles, ensuring long-term durability.
Product Description
Phoenix Contact 2961163 PCB Power Relay is a precision-engineered signal relay designed to meet a wide range of industrial and electronic applications. Featuring a 12V DC coil voltage and a switching current of 10mA, this SPDT relay offers reliable switching capabilities in a compact PCB mountable design.
The relay's coil resistance of 848Ω ensures low current draw, reducing heat generation and enhancing efficiency. Its robust silver alloy contacts allow dependable switching of voltages up to 36V AC and 36V DC. Sized at 5mm length, 15mm width, and 28mm height, this power relay is ideal for space-constrained electronic designs.
Capable of operating within a wide temperature range of -40°C to +85°C, this unit withstands harsh industrial environments while maintaining performance. The PCB pin terminal type facilitates straightforward mounting on printed circuit boards.
Rated for up to 2 million switching cycles, the Phoenix Contact 2961163 relay guarantees durability and long service life. It is widely used in automation systems, industrial machinery requiring reliable control, instrumentation, test equipment, and compact electronics such as electric vehicle circuitry.
The SPDT contact configuration allows flexible control in circuit switching. Compact dimensions support integration into densely packed PCB layouts. Low coil resistance ensures energy-efficient operation. Robust contact material provides corrosion resistance and longevity.
Suitable for operation in extreme temperature conditions. High reliability backed by endurance testing to 2 million cycles. Ideal for electronic control and signal switching applications. This relay is manufactured in the Czech Republic adhering to industry standards including VDE-PZI, GL, GOST, UL, CSA, and cUL, ensuring safety and performance compliance.
Explore more industrial-grade Signal Relays and electrical components through EnvMart's comprehensive catalog to enhance your electronic design and control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It has a switching current of 10mA.
The relay measures 5mm in length, 15mm in width, and 28mm in height.
This model features a Single Pole Double Throw (SPDT) contact configuration.
It supports switching voltages up to 36V AC and 36V DC.
It is designed for PCB pin mounting, allowing for easy integration into circuit boards.
The coil resistance is 848Ω, which ensures low current draw.
It can operate reliably between -40°C and +85°C.
The contacts are made of durable silver alloy, which enhances longevity and performance.
It is rated for up to 2 million operational cycles, ensuring long-term durability.
It adheres to several industry standards including VDE-PZI, GL, GOST, UL, CSA, and cUL.
The relay is manufactured in the Czech Republic.
