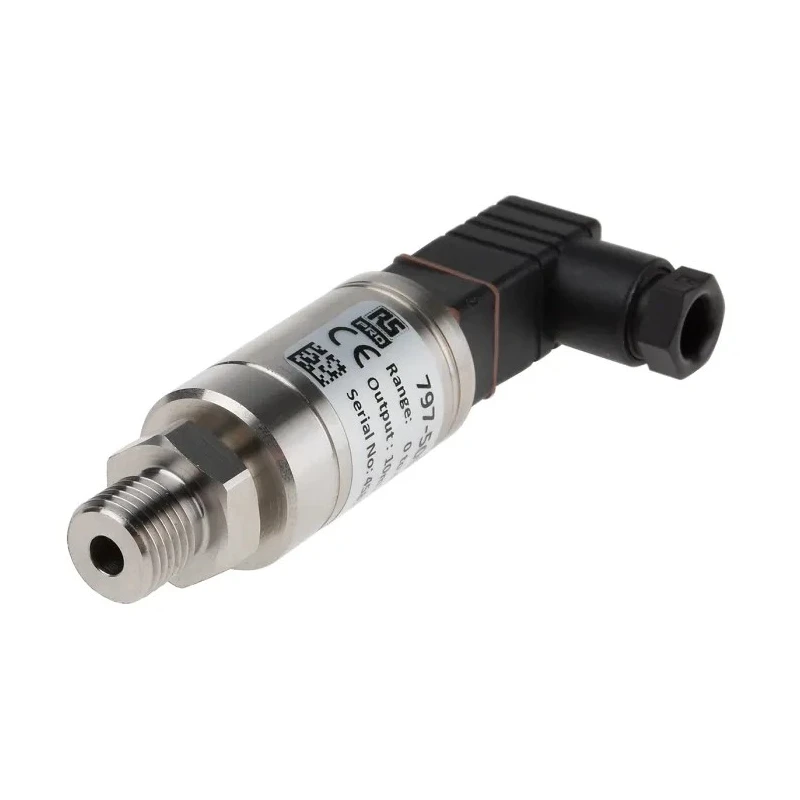

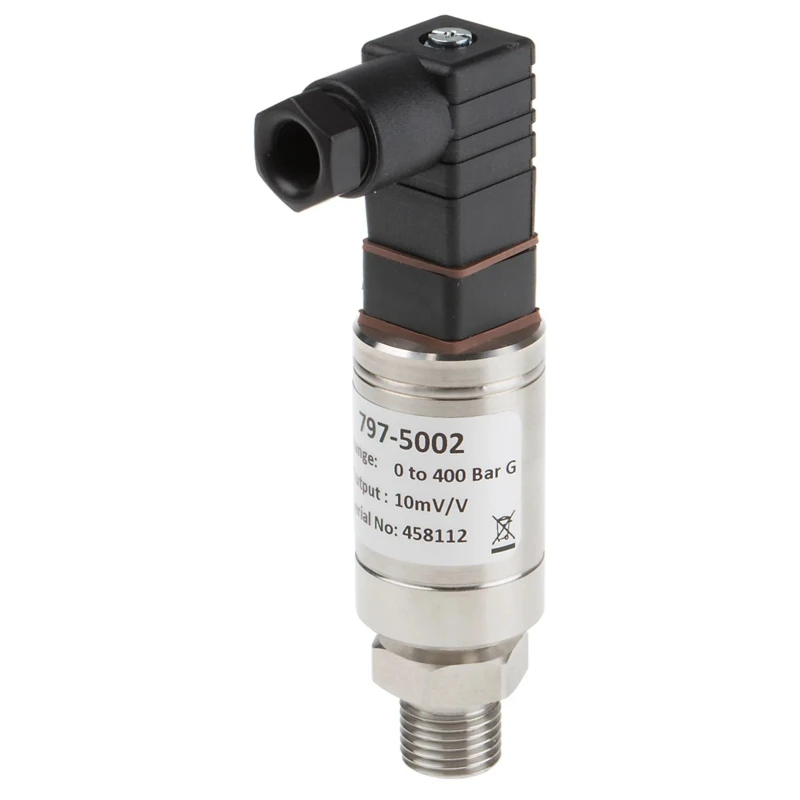

RS PRO Industrial Pressure Sensor with Voltage Output 0 bar to 400 bar, Gauge Reading, Stainless Steel Housing 797-5002

RS PRO 797-5002 is a high-performance industrial pressure sensor with voltage output, measuring pressure ranges from 0 to 400 bar using gauge reading technology. This sensor is engineered for demanding automation, process control, and industrial measurement tasks, featuring a piezo-resistive ceramic sensor within a stainless steel 316L housing providing exceptional media compatibility and durability.

The sensor supports multiple media types including air, gas, hydraulic fluids, liquids, and water, making it versatile for HVAC, manufacturing, water treatment, and laboratory environments. It offers precise pressure measurement with ±0.25% accuracy and operates reliably under supply voltages from 9V to 32V.

Designed for rugged industrial applications, it includes a DIN terminal with a 4-pin M12 connector and BSP 1/4 threaded mounting for secure installation. Its operational temperature range of -20°C to 135°C and IP65 ingress protection rating ensure reliable performance even under harsh conditions.

The compact and lightweight form factor (approx. 100 g) allows flexible positioning and long service life, exceeding 100 million cycles with high insulation resistance of over 50M Ohms at 50 Vdc. This product complies with CE EMC directive EN 61326-1:2013, assuring quality and safety standards.

Features a piezo-resistive thick film ceramic sensor for precise pressure detection. Constructed with stainless steel 316L housing for robust corrosion resistance. Operates with supply voltage from 9V to 32V with DIN terminal connection.

Designed to measure air, gas, hydraulic fluid, liquid, and water media effectively. Offers high accuracy of ±0.25% and an IP65 rating for protection against dust and water. Supports threaded BSP 1/4 mounting with flexible installation positions.

Wide operating temperature range from -20°C to 135°C for diverse environments. CE compliant with EMC directive EN 61326-1:2013 for safety and quality assurance. Lightweight design at 100 g suitable for integration in automated measurement systems.

Reliable operational life exceeding 100 million cycles with excellent insulation resistance.

This RS PRO Pressure Sensor 797-5002 is essential for industrial process control, automation, HVAC system monitoring, and laboratory instrumentation. Its stainless steel construction and advanced ceramic sensor technology ensure durability and consistent performance in demanding conditions.
