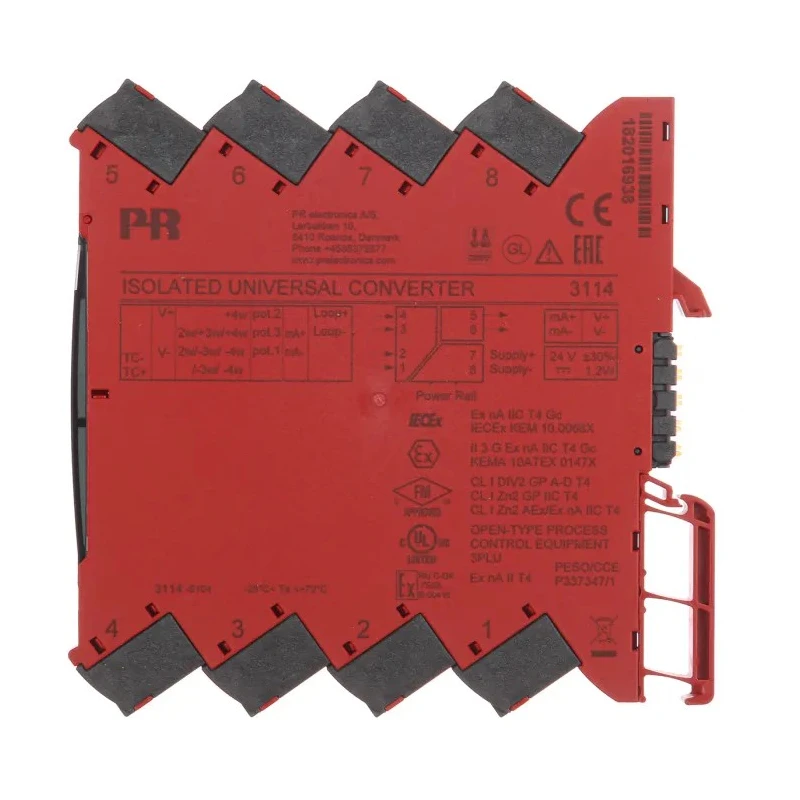

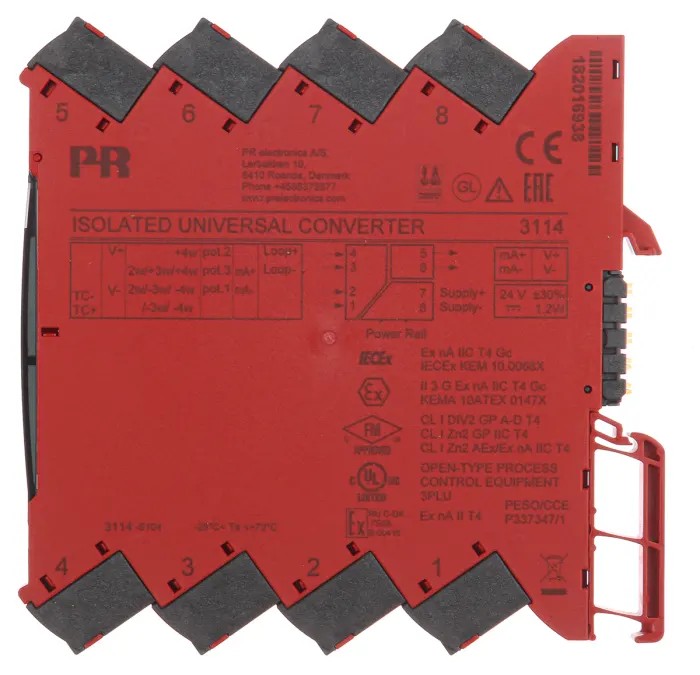

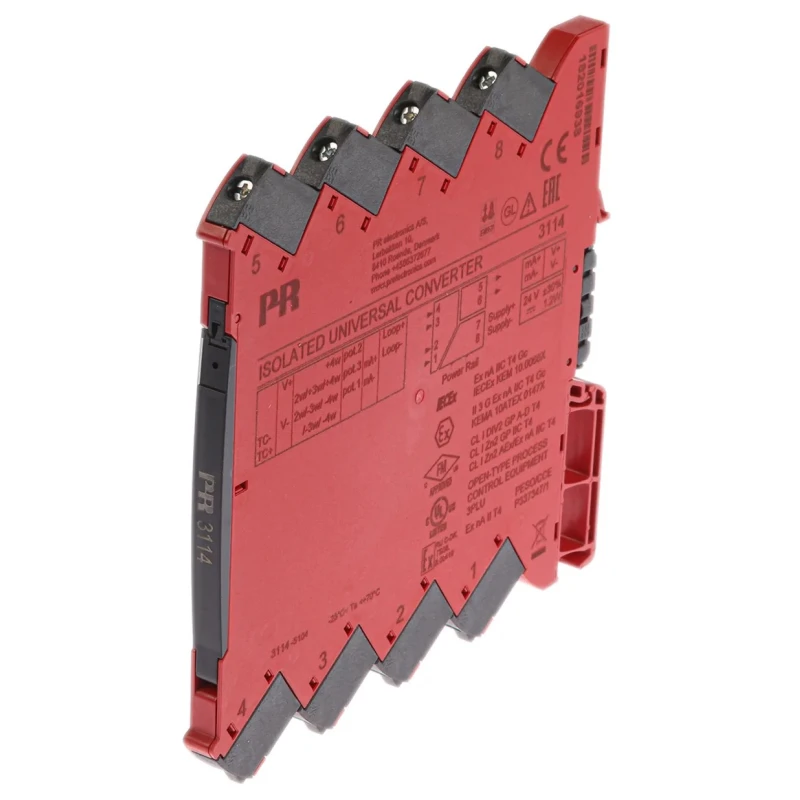

PR Electronics 3100 Series Isolated Universal Converter Universal Input Current/Voltage Output 16.8V dc 31.2 V dc 3114

PR Electronics 3114 Isolated Universal Converter from the 3100 Series is a high-accuracy, multifunctional signal conditioner for converting linear resistance variations into standard analogue current or voltage outputs. It supports universal input signal types and provides versatile output signals including 0 to 10 V dc and 0 to 20 mA current, with supply voltages of 16.8 V dc and 31.2 V dc.

This compact 6 mm wide device is engineered for industrial, automation, and laboratory applications requiring fast and accurate monitoring of critical analog signals such as those from solenoids, butterfly valves, or linear potentiometer movements. Its robust design ensures performance stability over a broad temperature range from -25 °C to +70 °C, suitable for both indoor and outdoor environments subject to wide temperature fluctuations.

The device features galvanic isolation rated at 2.5 kV ac to prevent ground loops and enhance noise immunity, ensuring precise signal transmission to PLCs or DCS systems. It is certified to comply with ATEX, UL 61010-1, EMC, RoHS, and multiple international standards, making it suitable for hazardous area installations and globally recognized industrial settings.

Installation is straightforward with DIN rail mounting and screw terminal connections. The built-in DIP-switch programming allows range adjustments without the need for recalibration, facilitating easy field configuration. A front panel LED indicates operational status and alerts for setup or hardware errors.

Typical applications include signal conditioning in electrical control panels, industrial process instrumentation, and automation systems with critical signal monitoring needs. The PR 3114 converter’s precision, reliability, and certifications make it a preferred solution in demanding industrial and laboratory environments.

High basic accuracy of 0.05% ensures reliable measurement quality. DIP-switch programming for flexible I/O range changes without recalibration. Compliance with hazardous area standards like ATEX supports safe operation in explosive atmospheres.

Robust screw terminal connections enhance installation stability. LED device status indicator improves diagnostics and maintenance. Explore more industrial signal conditioning and isolation converters in the Electronics & Electricals category at EnvMart for your automation and control system requirements.
