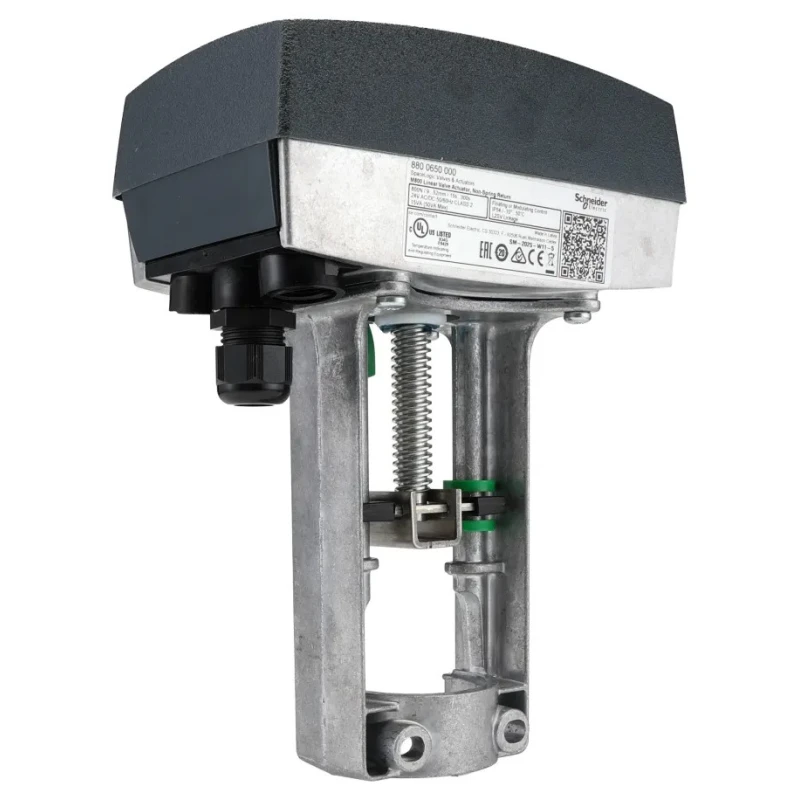

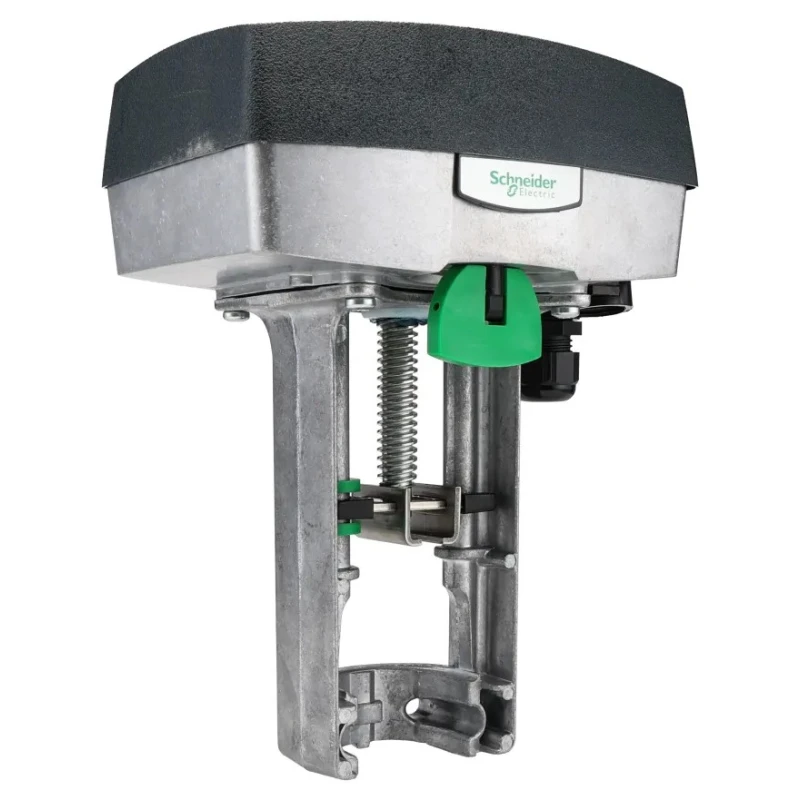

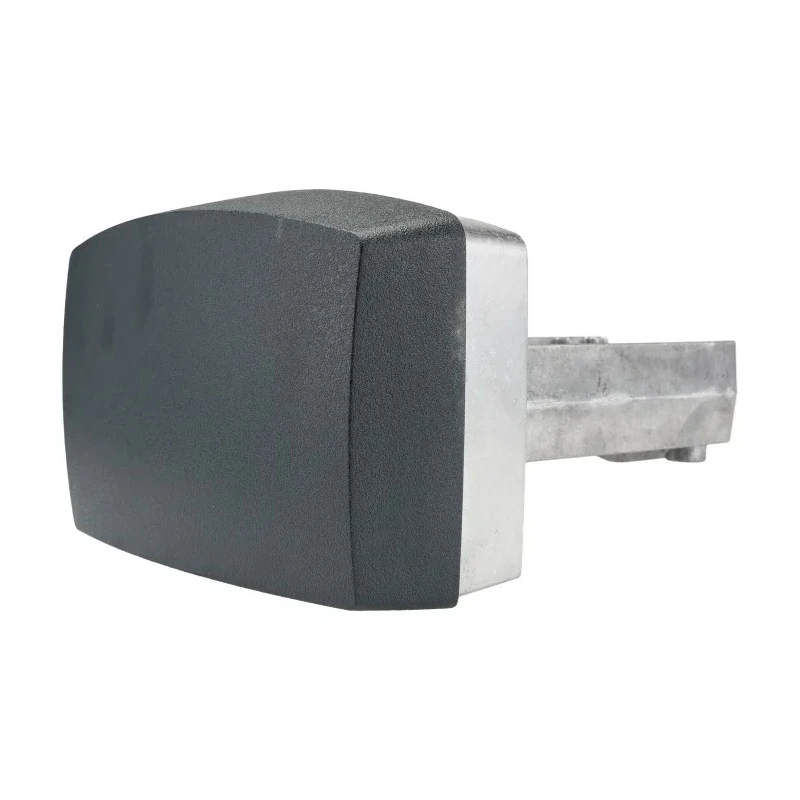

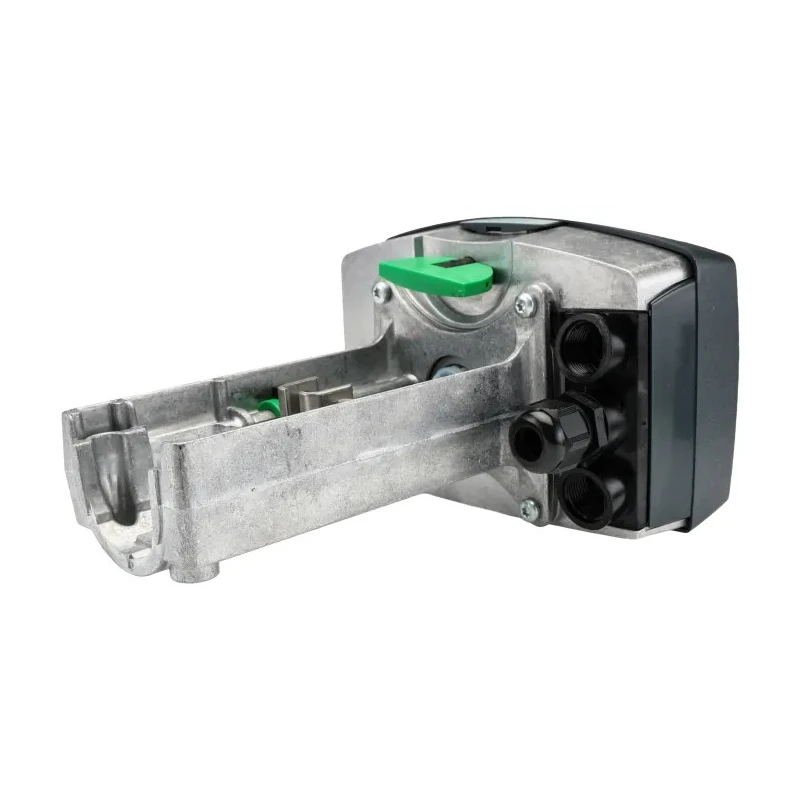

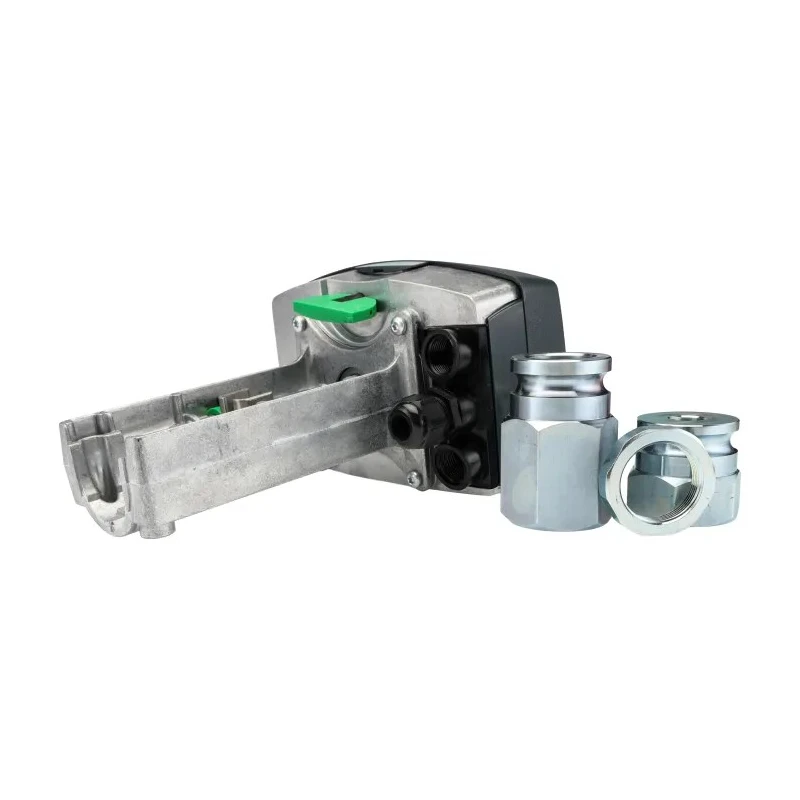

Schneider Electric Electro Mechanical 3 Port Valve Actuator Shaft 24V AC Supply Voltage 8800650000

Schneider Electric 8800650000 Electro Mechanical 3 Port Valve Actuator with Shaft function and 24V AC supply voltage is a reliable solution for controlling two-way and three-way plug valves in HVAC and industrial automation systems. This electric actuator delivers precise control and optimal performance by automatically adjusting the stroke based on valve configuration.

Its maximum opening and closing times are 30 and 35 seconds respectively, operating with a power rating of 15VA at 24V AC. The actuator type is electro mechanical, designed for shaft operation and compliant with IEC and EN standards (IEC-68-2-3, EN 50082-1:1992, IEC-68-2-6, EN 50081-1:1992, IEC-68-2-2, IEC-68-2-1), ensuring robust and standardized performance.

The actuator supports modulating control signals for effective valve positioning and is easily mountable on TAC control valves without additional kit requirements. It is engineered to function under ambient temperatures from -10°C to 50°C and relative humidity levels up to 90%, suitable for diverse indoor industrial environments.

Additional features include a manual operation handle allowing manual override during power outages and a 16V DC output to maintain compatibility with older TAC controllers. This product is designed for sustainability with a Better World claim of being designed for disassembly.

Supports three ports for valve configurations. Automatic stroke adjustment ensures precision. Compatible with modulating control signals. Easy mounting on TAC valves without extra kits. Reliable operation between -10°C and 50°C ambient temperatures.

Manual override handle for power failure situations. Operates up to 90% relative humidity. Standards compliant for industrial reliability. Provides 16V DC output compatibility for legacy controllers.

Ideal for integration in HVAC systems, heating, air handling, and industrial control applications requiring robust valve actuation. Explore more in the Valve Actuators category on EnvMart for related solutions.
