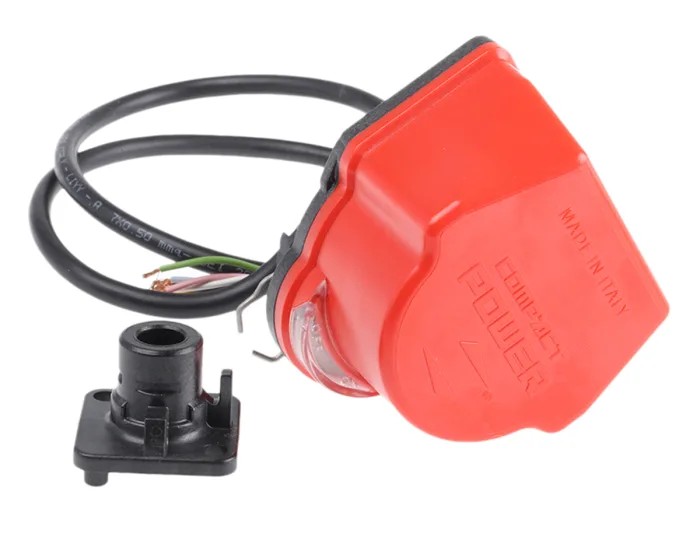

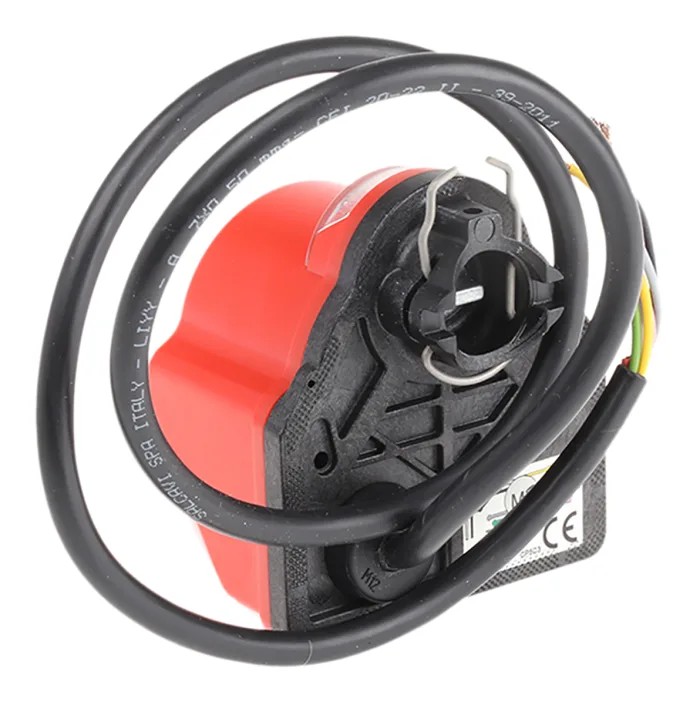

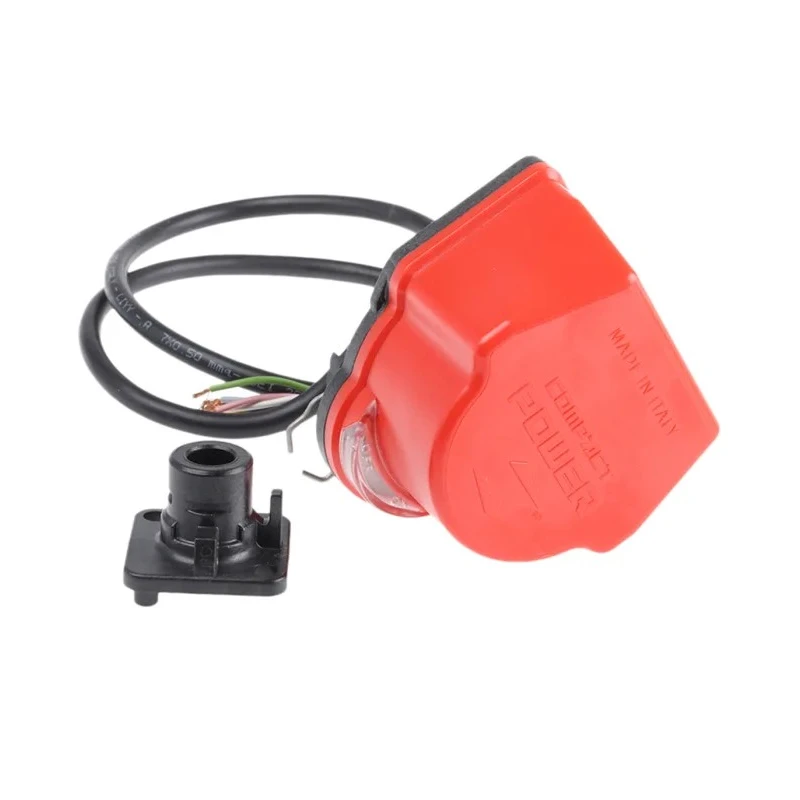

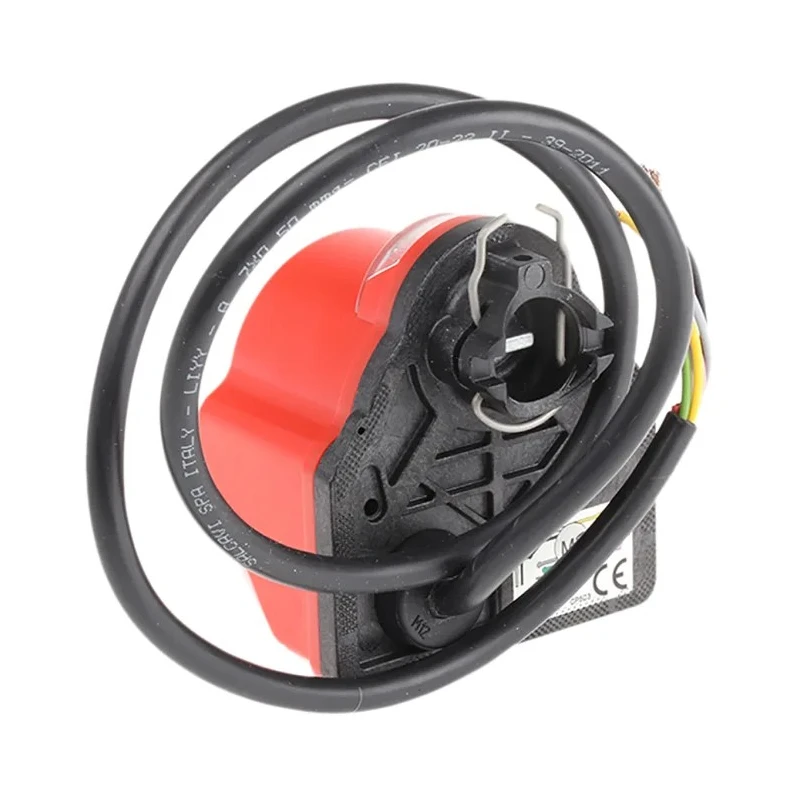

RS PRO 1 Port Valve Actuator 24V Supply Voltage Motor Power 10W Torque 5 Nm Model 812-5217

RS PRO 812-5217 1 Port Valve Actuator is a high-quality electric actuator designed for quarter turn valves up to 1.25 inch size, providing precise and reliable valve control for industrial and fluid power applications. Operating at a supply voltage of 24V, this actuator consumes 10W motor power and delivers a torque output of up to 5 Nm (44 in-lb), making it suitable for a wide range of valve automation needs.

The actuator features a maximum opening time of 25 seconds and a maximum closing time of 20 seconds, supporting efficient valve actuation. Its compact packaging allows installation in restricted spaces, while the corrosion-resistant plastic housing ensures long-lasting performance in diverse environments.

Rated with IP65 protection class, comparable to NEMA 4X, it offers robustness against dust and water ingress. A visual position indicator facilitates easy monitoring of valve status. The device includes micro-switches capable of passing up to 1A for open-close signal feedback, enhancing operational control.

Designed to withstand temperatures from -20°C to +80°C, this actuator is suitable for applications in industrial, manufacturing, HVAC, water treatment, and other commercial systems.

The actuator directly mounts on valves to achieve perfect shaft alignment and features positive orientation with ball valves. It is also easily removable for manual operation, increasing maintenance convenience. The product has passed stringent 100,000 cycle life tests and operates with a 60% duty cycle, promising durability and reliable functionality.

Supports one port for valve operation. Maximum opening time is 25 seconds for controlled actuation. Maximum closing time is 20 seconds ensuring quick response. Operates on 24V supply voltage with 10W motor power consumption.

Torque output up to 5 Nm (44 in-lb) suitable for quarter turn valves up to 1.25 inches. Compact design fits restricted spaces with corrosion resistant plastic housing. Protection class IP65 comparable to NEMA 4X for robust environmental resistance.

Visual position indicator and micro-switches for open-close signals included. Handles working temperatures from -20°C to +80°C. Direct mount on valve ensures perfect shaft alignment and easy manual operation. Successfully passed 100,000 cycle life tests to ensure durability.
