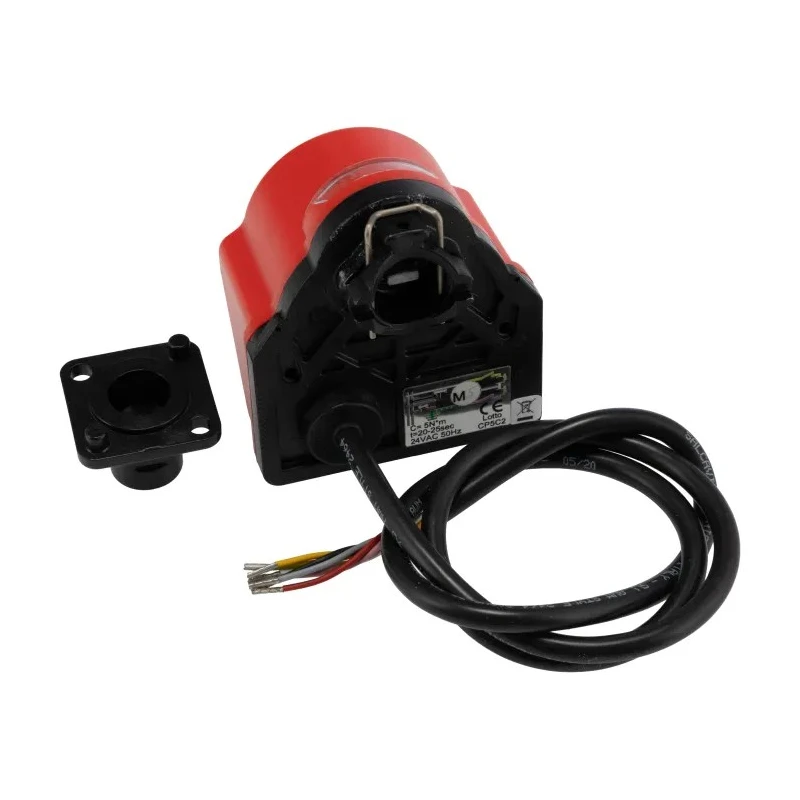

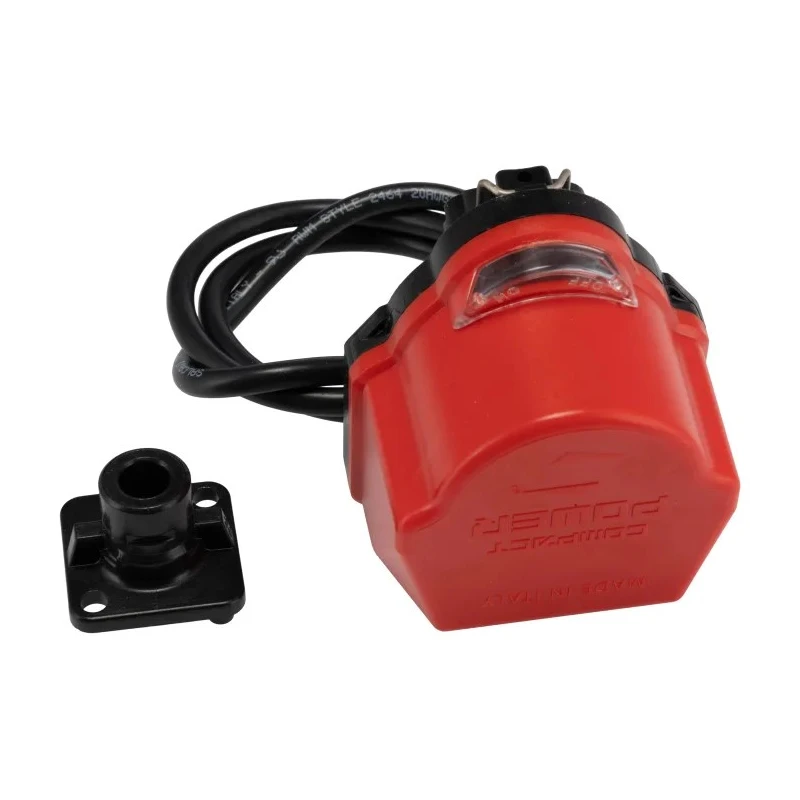

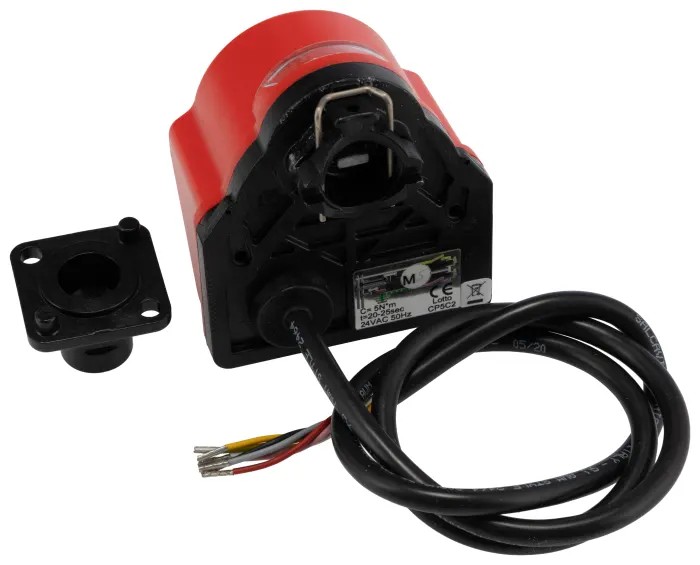

RS PRO Electric 1 Port Valve Actuator 24V Supply Voltage with 5 Nm Torque Output 812-5214

RS PRO 812-5214 1 Port Valve Actuator is an electric actuator designed for quarter turn valves up to 1.25 inch size, operating at 24V supply voltage. This actuator offers precise and reliable valve control with compact dimensions ideal for installation in restricted spaces.

The device consumes only 10W motor power, delivering torque up to 5 Nm (44 in-lb), making it suitable for industrial applications requiring robust actuation. Engineered with a corrosion-resistant plastic housing and rated IP65 (comparable to NEMA 4X), it ensures protection against dust and water ingress.

It features micro-switches for open-close signaling capable of passing currents up to 1A, enabling integration with control systems. The actuator has a visual position indicator for easy valve position monitoring and supports direct mounting for perfect shaft alignment to minimize installation complexities.

Operating temperature ranges from -20°C to +80°C, making it versatile for various industrial environments including fluid power systems, plumbing, pipeline valve automation, and HVAC systems.

With demonstrated durability through more than 100,000 cycle tests and a duty cycle of 60%, the RS PRO 812-5214 actuator ensures long-term reliable operation. The actuator is easily removable for manual override during maintenance or emergency conditions.

Supports single port valve actuation with precise quarter turn operation. Operates on 24V supply voltage with low motor power consumption of 10W. Delivers torque output up to 5 Nm (44 in-lb) for reliable valve control. Compact design fits restricted spaces and enables direct mounting for perfect shaft alignment.

Durable corrosion-resistant plastic housing with IP65 / NEMA 4X protection class. Visual position indicator for easy valve status verification. Micro-switches provide open-close signal outputs capable of handling up to 1A current.

Operating temperature range from -20°C to +80°C suitable for industrial environments. Passed over 100,000 cycle life tests ensuring high reliability and long duty cycle of 60%. Easily removable actuator for manual operation when required.

This actuator is ideal for industrial, manufacturing, HVAC, plumbing, and water treatment applications where automated valve control is required with compact and robust design. Explore the collection of Valve Actuators in the Industrial Valves category at EnvMart for reliable industrial solutions.
