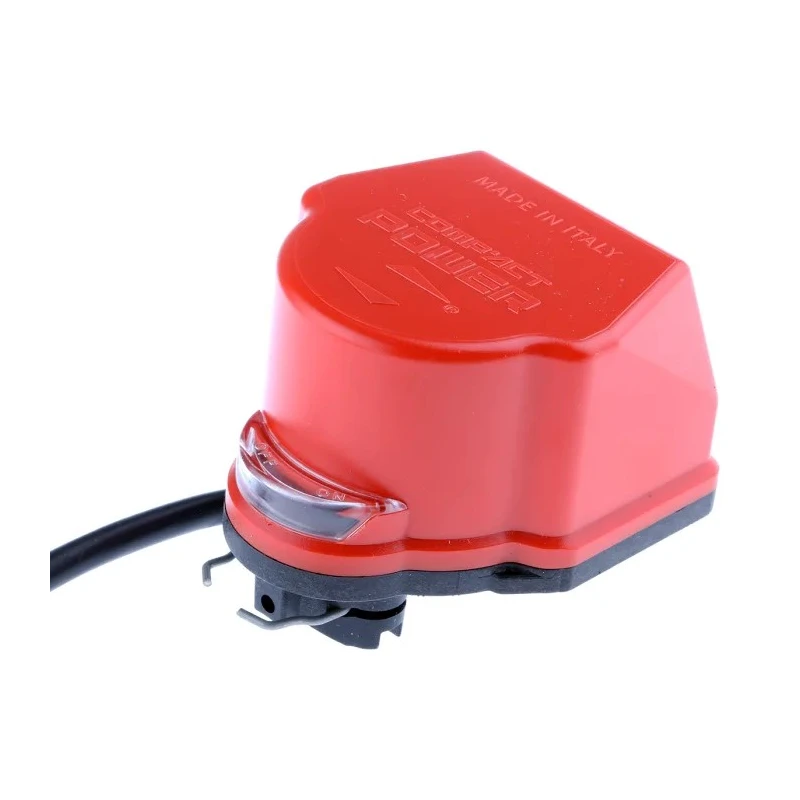

RS PRO Valve Actuator 1 Port Electric Quarter Turn 230V Supply Voltage 10W Motor Power 5 Nm Torque IP65 Model 812-5208

RS PRO 812-5208 valve actuator is an electric quarter turn actuator designed for industrial valve automation. Operating at 230V supply voltage with a 10 watt motor, this actuator provides a torque output up to 5 Nm, making it suitable for valves up to 1.25 inch size. Its compact package enables installation in restricted spaces, while the IP65 protection class provides resistance against dust and water ingress, suitable for various industrial environments.

The actuator features micro-switches for accurate open-close position signaling, capable of handling up to 1 ampere current. Its corrosion resistant plastic housing enhances durability under harsh conditions. With a maximum opening time of 25 seconds and closing time of 20 seconds, it ensures timely valve operation for fluid control applications.

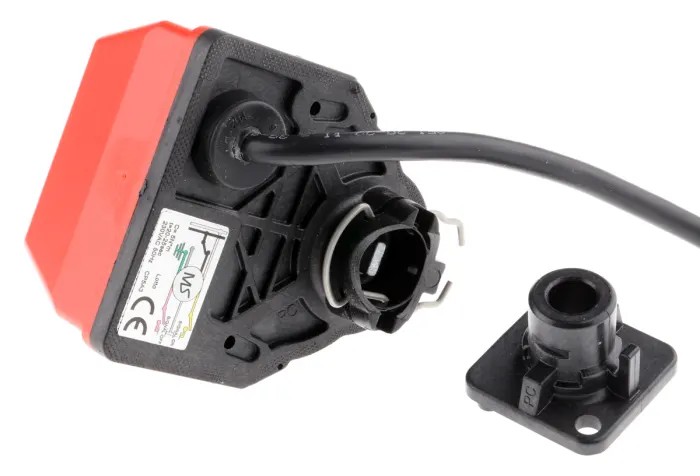

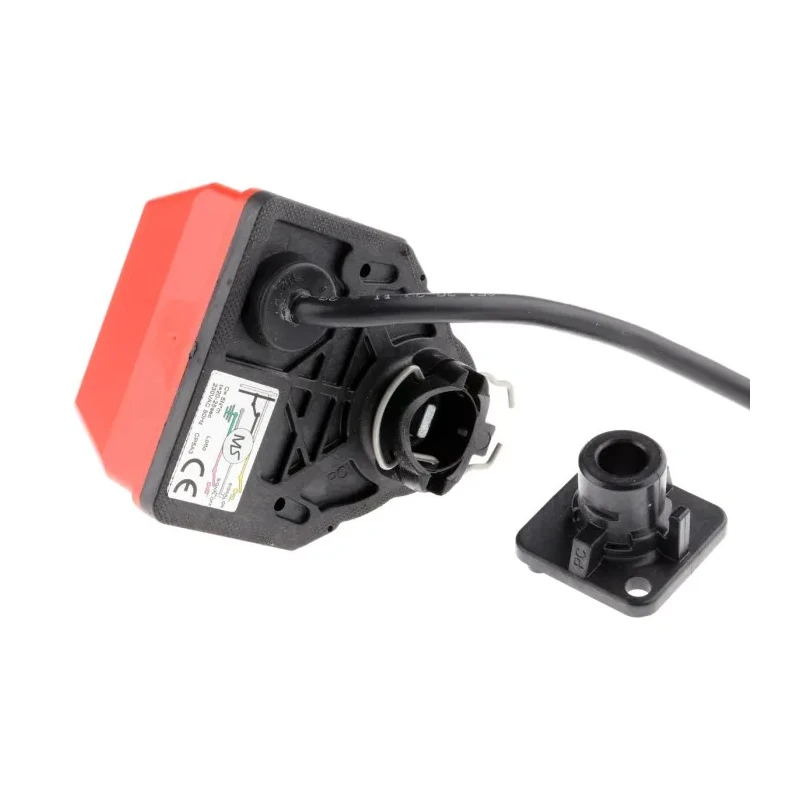

Designed for direct mounting on valves, this actuator guarantees perfect shaft alignment and implements a positive orientation between the ball valve and actuator. Manual operation is facilitated by its easy removal design and includes a visual position indicator for precise operational feedback.

Engineered to withstand temperatures from -20°C to +80°C, it is well suited for varied industrial uses including fluid power systems, HVAC, manufacturing, and water treatment plants. The actuator also passed rigorous testing, completing over 100,000 cycles with a duty cycle rating of 60% to ensure long operational life.

This actuator is manufactured in Italy and represents a reliable choice for automation professionals requiring a robust, electric valve actuator. Package contains one RS PRO 1 port valve actuator compliant with indicated specifications.

Operates with a 10W motor power and outputs torque up to 5 Nm. Compact design suitable for restricted spaces with IP65 protection. Maximum opening time of 25 seconds and closing time of 20 seconds. Equipped with micro-switches for open-close signaling capable of passing up to 1A.

Corrosion resistant plastic housing built for durability and reliability. Operates effectively within temperature range -20°C to +80°C. Direct mounting on valve ensures perfect shaft alignment and easy manual operation. Visual position indicator for precise operational feedback.

Successfully passed 100,000 cycle life tests with a 60% duty cycle rating. Explore more high-quality Valve Actuators and automation solutions in the Industrial Valves category at EnvMart.
