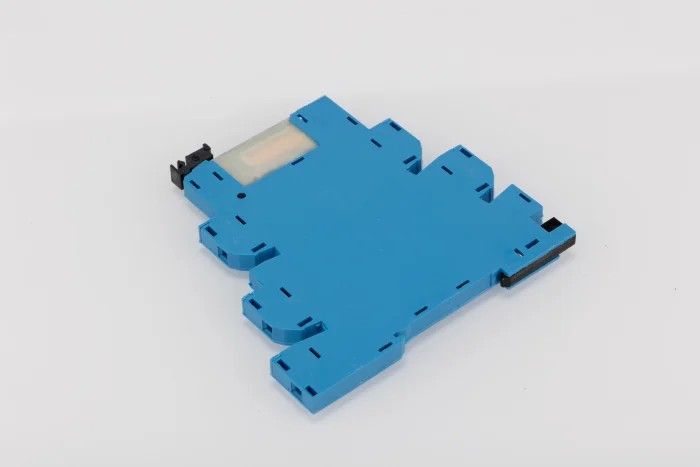

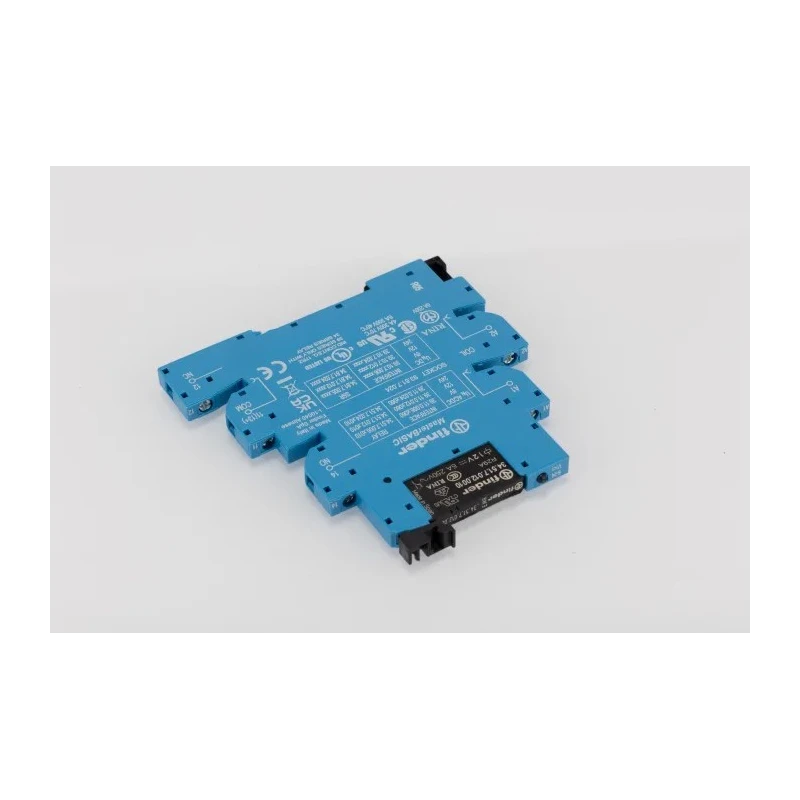

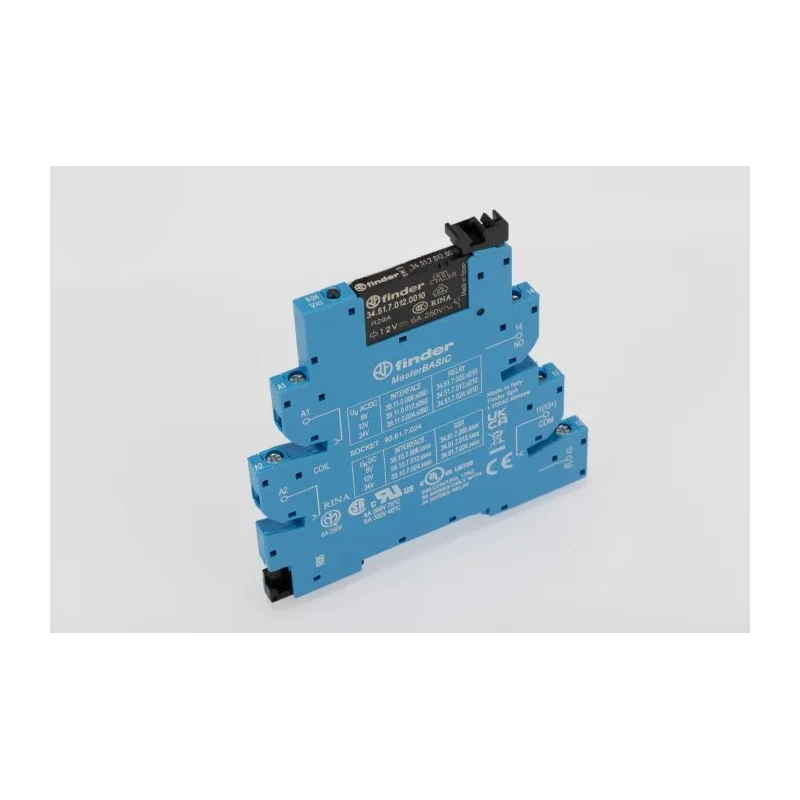

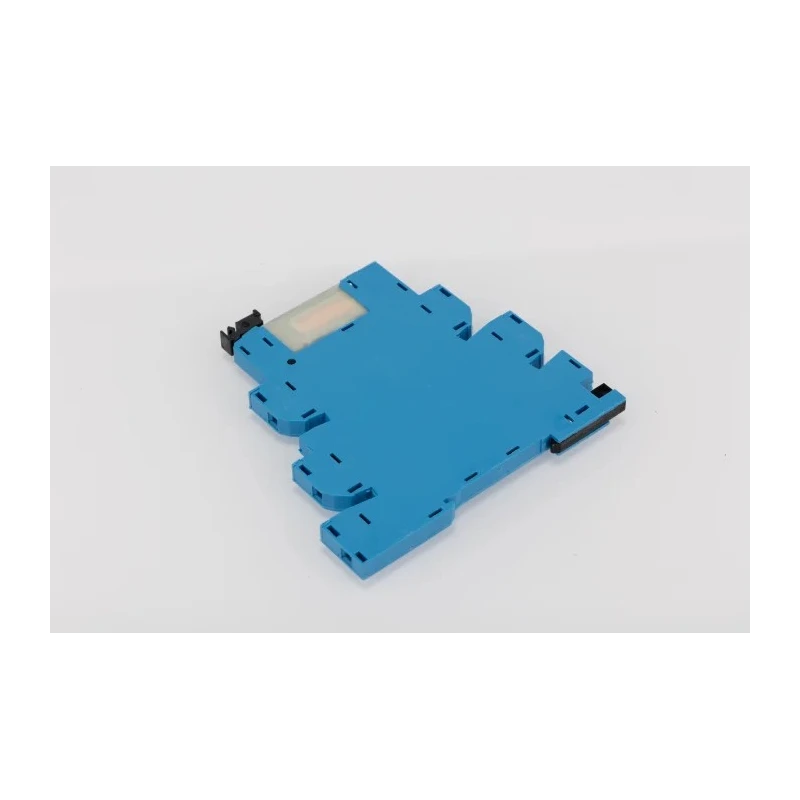

Finder 39 Series Interface Relay, DIN Rail Mount, 12V AC/DC Coil, SPDT Contact, 15mA Coil Current 39.11.0.012.0060

Finder 39.11.0.012.0060 is an electromechanical interface relay from the 39 Series designed for industrial automation and control applications. It features a DIN rail mount configuration with a narrow profile width of 6.2mm, enabling compact panel installations. The relay operates on a 12V AC/DC coil voltage with a low coil current of 15mA, optimized for energy efficiency and effective switching.

Equipped with a single pole double throw (SPDT) contact configuration, this relay supports a switching current rating of 6A and is capable of operating under a broad voltage spectrum including up to 250V AC and 12V DC switching voltages. The contact material is silver alloy, known for its superior conductivity and durability, enhancing long-term reliability.

The device incorporates integral coil indication and protection circuits to safeguard against overloads, ensuring enhanced operational safety. It also features a screw terminal type for robust electrical connections and easy installation on standard DIN rails. The relay is certified to CE and EAC standards and designed to perform reliably across a temperature range from -40°C up to 70°C, making it versatile for varying industrial environments.

This interface relay is ideal for application in a variety of industrial settings such as control panels, electrical distribution systems, traffic light controls, bottling plants, packaging machinery, hoists, cranes, labeling machines, and carousel warehouses. Its mechanical life expectancy reaches up to 10 million cycles with an electrical life of approximately 60,000 cycles at rated load, reflecting its durable construction for long-term automation needs.

Compact design for space-saving DIN rail installations. Supports switching current up to 6A with SPDT contact configuration. Durable silver alloy contacts and reliable screw terminals. Wide operational temperature range from -40°C to 70°C.

Integral coil indication and protection for safety. Suitable for various automation and industrial control applications.

For professionals seeking dependable and compact Interface Relays for automation and control solutions, the Finder 39 Series offers a proven choice. Explore more relays and components within the Finder product range at EnvMart.
