Alpha Wire Ecogen Ecocable 3 Cores 0.56mm² 20 AWG Screened Control Cable 600V 30m 77116 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 77116 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable |
| Outside diameter | 5mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.197 inch (5.00 mm) |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Cable CSA | 0.56mm² |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/28 |
Key Features
- The cable is made with tin copper stranded conductors for effective conductivity.
- The grey modified polyphenylene ether (mPPE) jacket provides excellent mechanical strength and abrasion resistance.
- It operates at 600V voltage with a temperature range of -50°C to 105°C.
- The construction includes an aluminium/polyester foil shield for moderate electromagnetic interference protection.
- This eco-friendly cable is halogen-free, recyclable, lighter and thinner than PVC alternatives.
- Designed for industrial automation and control applications requiring durable control cables.
- Complies with CE, CSA, and UL standards but does not have hazardous area certification.
- Nominal outside diameter is 5mm with jacket thickness of 0.81mm for compact installation.
Product Description
Alpha Wire 77116 SL005 Ecogen Ecocable is a screened control cable with 3 cores, each conductor measuring 0.56mm² (20 AWG). It features a grey modified polyphenylene ether (mPPE) jacket that offers superior mechanical strength, abrasion resistance, and environmental benefits such as halogen-free and recyclability.
Operating at 600V and supporting a temperature range from -50°C to 105°C, this cable is designed for demanding industrial automation, instrumentation, and power control applications. The tin copper stranded conductors ensure reliable electrical performance and flexibility in installation.

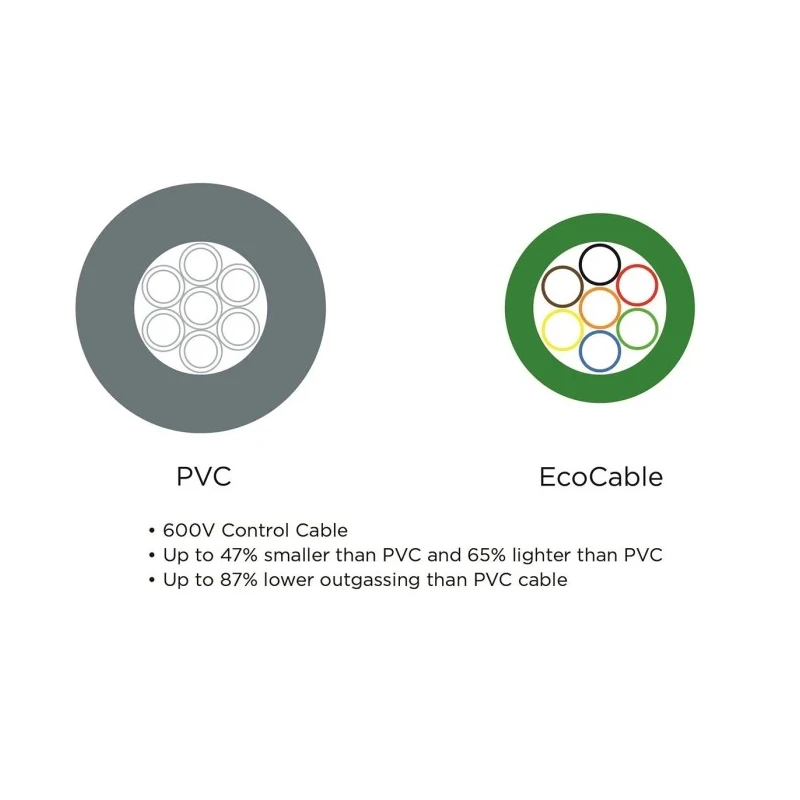

The cable includes an aluminium/polyester foil shield that provides protection from electromagnetic interference, maintaining signal integrity in complex control systems. Its nominal outside diameter is 5mm with a jacket thickness of 0.81mm, allowing it to be smaller and lighter compared to equivalent PVC cables, facilitating easier handling and installation.
Alpha Wire Ecogen Ecocable is compliant with CE, CSA, and UL standards, ensuring it meets international quality and safety requirements. It is ideal for use in applications requiring a halogen-free cable with excellent abrasion resistance, mechanical strength, and low outgassing properties.
Typical uses include industrial automation machinery, control panels, instrumentation wiring, and any environment where durability and environmental safety are paramount. The cable's design ensures it supports constant mechanical flexing and long flex life, important in automated and moving machinery applications.

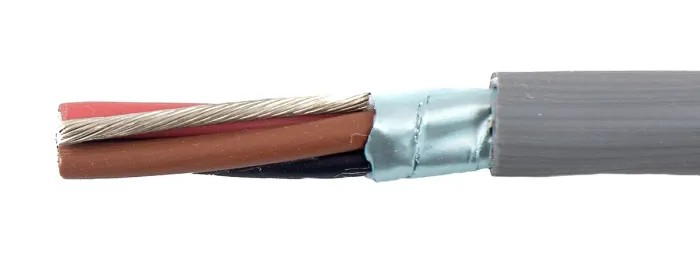

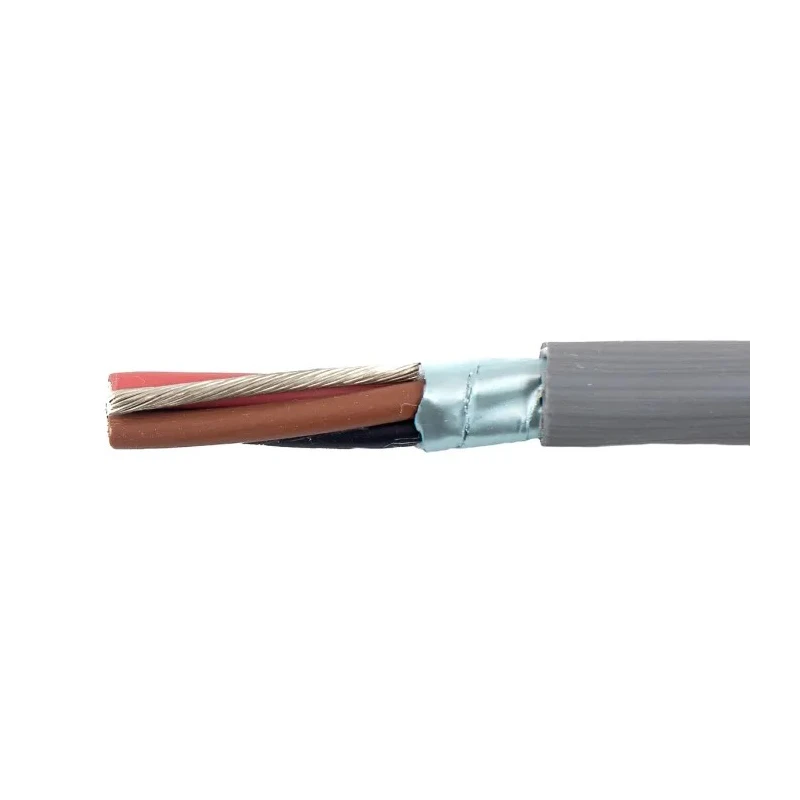

The cable features 3 black, brown, and red coloured conductors. Constructed with a screened foil shield to reduce electromagnetic interference. Environmentally safer due to its halogen-free and recyclable materials. Excellent thermal performance and mechanical durability for industrial use.
Compliant with UL AWM 21915 rating for 600 V and 105°C operation. Explore EnvMart's comprehensive category of Control Cables for more industrial and automation wiring solutions from top brands like Alpha Wire.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a voltage rating of 600V.
The cable supports a temperature range from -50°C to 105°C.
It features 3 cores, each with a conductor size of 0.56mm² (20 AWG).
The conductors are made of tin copper stranded wire, ensuring effective conductivity.
The nominal outside diameter is 5mm.
It has a grey modified polyphenylene ether (mPPE) jacket, which provides mechanical strength and abrasion resistance.
Yes, it complies with CE, CSA, and UL standards.
The cable is halogen-free, making it safer for the environment.
The jacket thickness is 0.81mm (0.032 inch).
It is designed for industrial automation, instrumentation, and power control applications.
It includes an aluminium/polyester foil shield to provide moderate protection from electromagnetic interference.
The cable length is 30m.
