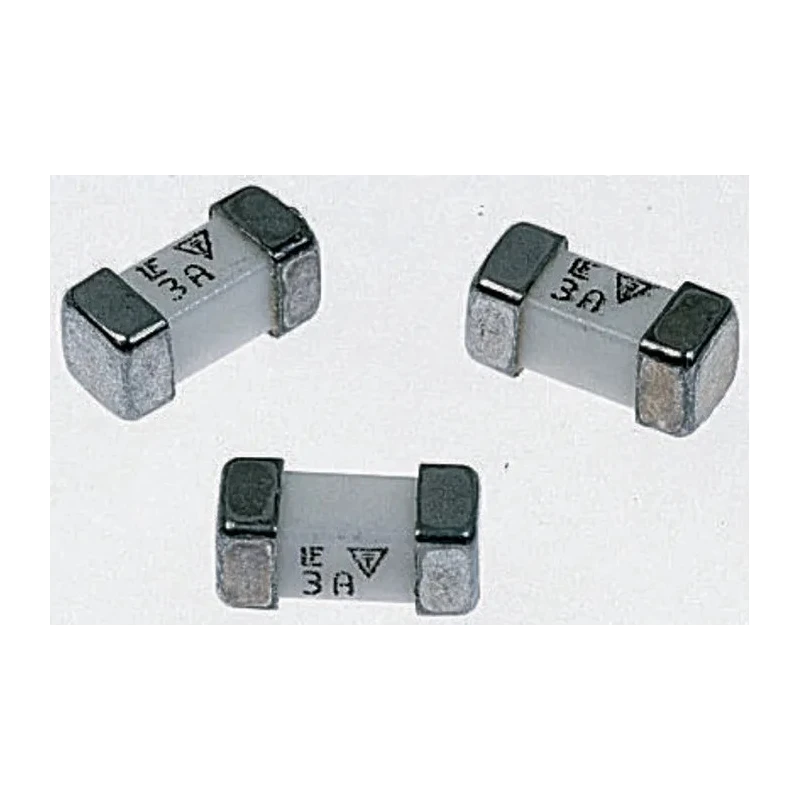

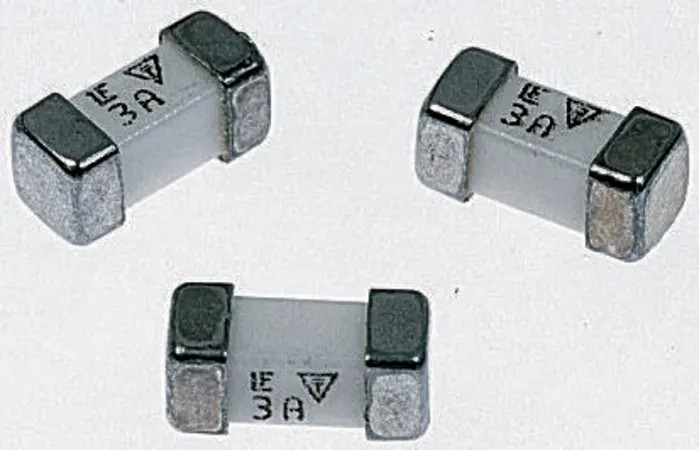

Littelfuse Non-Resettable Fuse 15A 65V Ceramic Body Super Fast Acting FF 0451015.MRL
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 65V |
| Brand | Littelfuse |
| Body Material | Ceramic |
| Height | 2.69mm |
| Model | 0451015.MRL |
| Depth | 6.1mm |
| Width | 2.69mm |
| Current Rating | 15A |
| Series | 451 |
| Maximum Operating Temperature | -55°C |
| Resistance | 0.06Ω |
| Package Type | Reel |
| Minimum Operating Temperature | 125°C |
| Breaking Capacity | 50A |
| Terminal Material | Gold Plated, Silver Plated, Tin Lead Plated |
| Standards/Approvals | RoHS, CSA, CE, UL 248-1 |
| Fuse Characteristics | Super Fast Acting |
Key Features
- Constructed with a durable ceramic body for enhanced safety.
- Super fast acting FF fuse characteristic for sensitive circuit applications.
- Breaking capacity rated at 50 amperes for effective overload handling.
- Operating temperature range from -55°C to 125°C ensures versatility in environments.
- Gold, silver, and tin lead plated terminals guarantee excellent connectivity and corrosion resistance.
- Compliance with RoHS, CSA, CE, and UL 248-1 standards ensures quality and safety.
- Packaged on reel for easy automated assembly and installation.
Product Description
Littelfuse 0451015.MRL Non-Resettable Fuse is a super fast acting fuse rated at 15A and 65V, designed with a compact ceramic body for secondary side circuit over-current protection in electronics and electrical assemblies.
These NANO2 series fuses feature a wire-in-air square shape surface mount design, ideal for protecting sensitive electronics including alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, and medical apparatus.
The fuse operates reliably within a temperature range from -55°C to 125°C, providing stable performance under varying environmental conditions. Its breaking capacity of 50A and extremely low resistance of 0.06 ohms ensure effective and quick interruption of overcurrent to protect other circuit components.
Terminals are gold plated, silver plated, and tin lead plated to guarantee uniform electrical contact and corrosion resistance for long service life. Compliant with international standards RoHS, CSA, CE, and UL 248-1, the 451 series NANO2 fuses meet stringent regulatory requirements and certifications.
Constructed with a durable ceramic body for enhanced safety. Compact size enables space-saving circuit designs. Super fast acting characteristic suitable for protecting high-value silicon ICs. Breaking capacity of 50A ensures reliable circuit protection.
Wide operating temperature range from -55°C to 125°C. Terminals plated with gold, silver, and tin lead for excellent electrical conductivity. Suitable for automated assembly on reel packaging. Ideal for use in industrial, laboratory, manufacturing, and commercial electronics applications.
This fuse is available in reels for efficient insertion in manufacturing processes and enhances production efficiency. The Littelfuse brand is renowned for quality and reliability in electrical protection components. Browse other circuit protection devices and fuses in the Electronics & Electricals category on EnvMart for comprehensive selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Littelfuse 0451015.MRL has a current rating of 15A.
This model can handle a maximum voltage of 65V.
The breaking capacity of this fuse is rated at 50A.
The terminals are plated with gold, silver, and tin lead for enhanced electrical connectivity and corrosion resistance.
It operates within a temperature range from -55°C to 125°C.

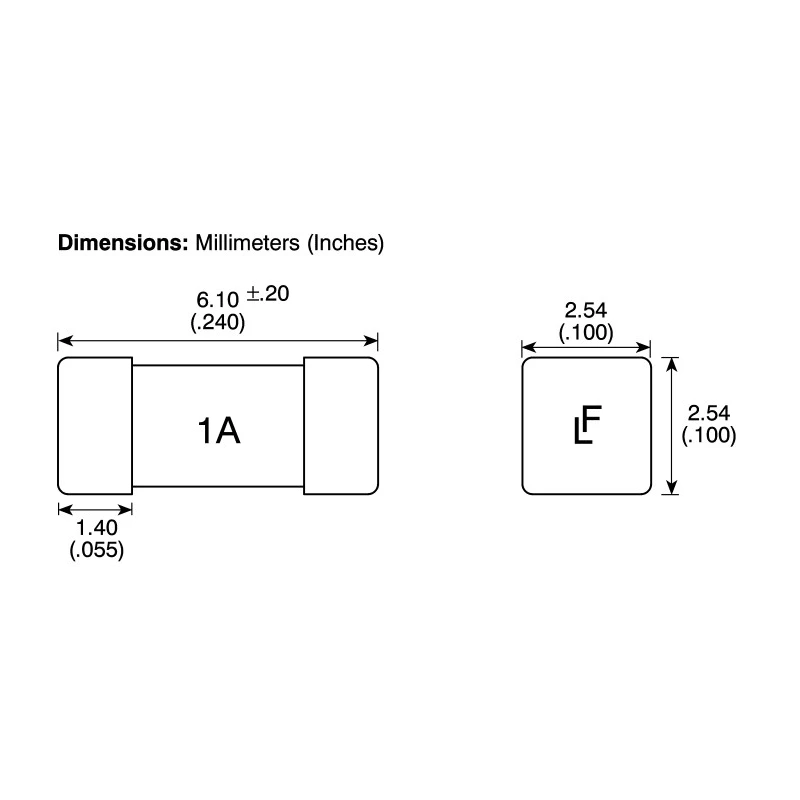

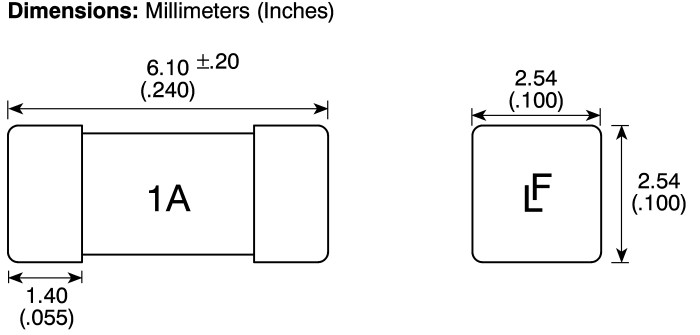

The dimensions of the fuse are 2.69mm in height, 6.1mm in depth, and 2.69mm in width.
This model is packaged on a reel, making it suitable for automated assembly.
It complies with RoHS, CSA, CE, and UL 248-1 standards.
The resistance of this fuse is 0.06 ohms.
This fuse has a super fast acting characteristic, making it suitable for sensitive circuit applications.
It is ideal for protecting sensitive electronics, including alarm systems, audio/visual equipment, computer boards, and medical apparatus.
The country of origin for this fuse is India.
