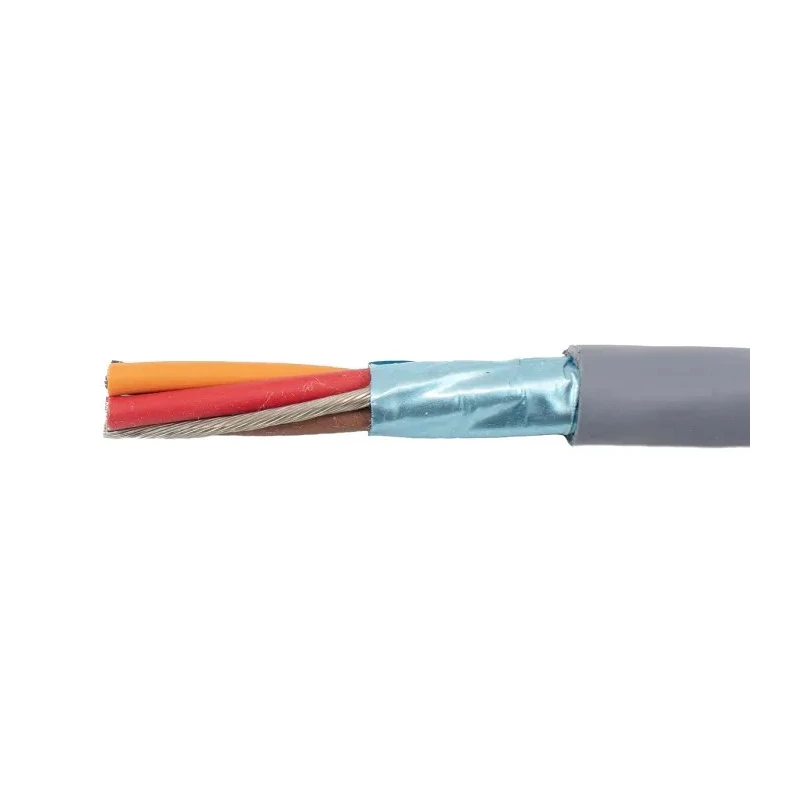

Alpha Wire Ecogen Ecocable Control Cable 4 Cores 0.28mm² 24 AWG Screened 600V 30m Grey Modified Polyphenylene 77104 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 77104 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable |
| Outside diameter | 4.55mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.179 inch (4.55 mm) |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 24AWG |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.2mm |
| Size of Strands | 0.2mm |
| Cable CSA | 0.28mm² |
| Conductors | 4, Black, Brown, Red, Orange |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/32 |
Key Features
- The cable features a grey modified polyphenylene ether jacket, providing excellent durability and environmental resistance.
- Supports a voltage rating of 600 V, suitable for automation and instrumentation uses.
- Operates reliably in temperatures ranging from -50°C to 105°C, ensuring performance in harsh environments.
- The screened foil shield reduces electromagnetic interference for accurate signal transmission.
- Halogen-free construction enhances safety and environmental friendliness.
- The stranded conductor with 7 strands of 0.2mm ensures mechanical flexibility.

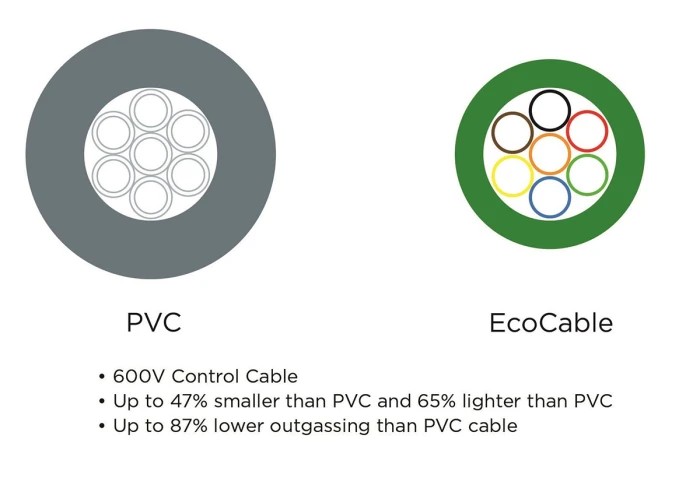

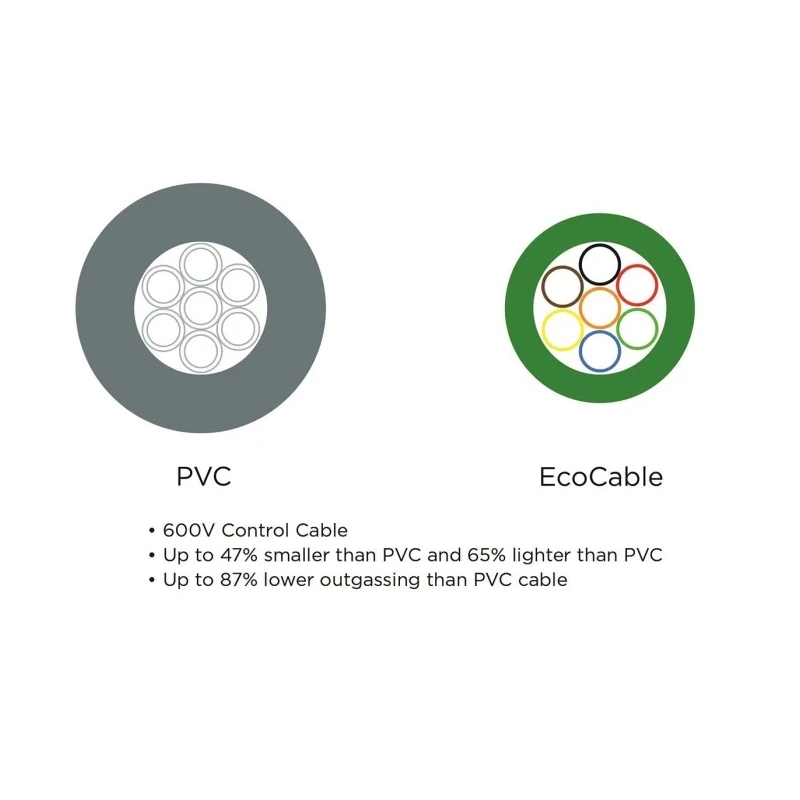

- Lightweight and thinner than conventional PVC cables due to mPPE materials.
- Approved to UL, CSA, and CE standards for industrial control applications.
Product Description
Alpha Wire 77104 SL005 Ecogen Ecocable Control Cable is a high-performance multi-conductor cable designed specifically for industrial automation, instrumentation, and control applications. It features 4 cores of 0.28mm² (24 AWG) tin copper wire that are stranded for enhanced flexibility and screened with an aluminum/polyester foil shield to reduce electromagnetic interference (EMI).
The cable's jacket is made of modified polyphenylene ether (mPPE), a thermoplastic that provides excellent mechanical strength, abrasion resistance, and outstanding environmental durability. It has a nominal diameter of 4.55 mm and a jacket thickness of 0.81 mm, making it both thinner and lighter than typical PVC cables, which simplifies cable handling and installation.
The Ecogen Ecocable is halogen-free and contains no phthalates, ensuring enhanced safety by reducing toxic gas emissions in case of fire and supporting environmentally friendly recycling practices. The cable operates reliably under a wide temperature range from -50°C to 105°C, making it suitable for harsh industrial environments.
This cable complies with rigorous international standards including UL AWM 21915, CSA, and CE certifications, ensuring quality and safety in electrical power and industrial control systems. Its 600 V voltage rating provides robust performance in control circuits and automated machinery control within manufacturing, HVAC, water treatment, and other industrial sectors.
Alpha Wire Ecogen Ecocable Control Cable's design supports constant flexing and mechanical stress, suitable for applications requiring long flex life and durability. It is an ideal choice for use in NFPA 79 compliant machinery to safeguard against electrical hazards.
The cable contains 4 color-coded conductors: Black, Brown, Red, and Orange for easy identification. The conductor strands are composed of 7 strands of 0.2 mm diameter each, improving flexibility and mechanical reliability.
The foil shield consists of aluminum/polyester layers that provide moderate resistance to electromagnetic interference. Compatible with a wide range of industrial automation equipment and control panels. The slim and lightweight design reduces installation effort and cable tray space requirements.
Choose Alpha Wire Ecogen Ecocable Control Cable 77104 SL005 for a high-quality, environmentally conscious, and durable control cable solution in industrial and automation systems. Explore more Control Cable solutions and industrial wiring products on EnvMart for your electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable supports a voltage rating of 600V, making it suitable for various industrial control applications.
It operates reliably at a maximum temperature of 105°C, ensuring performance in high-temperature environments.
This control cable features 4 cores, which are color-coded for easy identification: Black, Brown, Red, and Orange.
The cable jacket is made of modified polyphenylene ether (mPPE), and the conductors are composed of stranded tin copper wire.
The nominal diameter of this cable is 4.55 mm, which contributes to its lightweight and flexible design.
Yes, the cable is halogen-free, enhancing safety by reducing toxic gas emissions in case of fire.
It is approved to UL, CSA, and CE standards, ensuring quality and safety in electrical power and control systems.
The cable is 30 meters long, providing ample length for various installation needs.
The insulation thickness is 0.010 inches (0.25 mm), providing adequate protection for the conductors.
The cable can operate at a minimum temperature of -50°C, making it suitable for harsh environments.
This model features a screened foil shield made of aluminum/polyester layers, which helps reduce electromagnetic interference (EMI).
The conductors are stranded with 7 strands of 0.2 mm each, enhancing flexibility and mechanical reliability.
