Alpha Wire Ecogen Ecocable Screened Control Cable 3 Cores 0.81mm² 18 AWG 600V 30 m Grey Modified Polyphenylene 77126 SL005

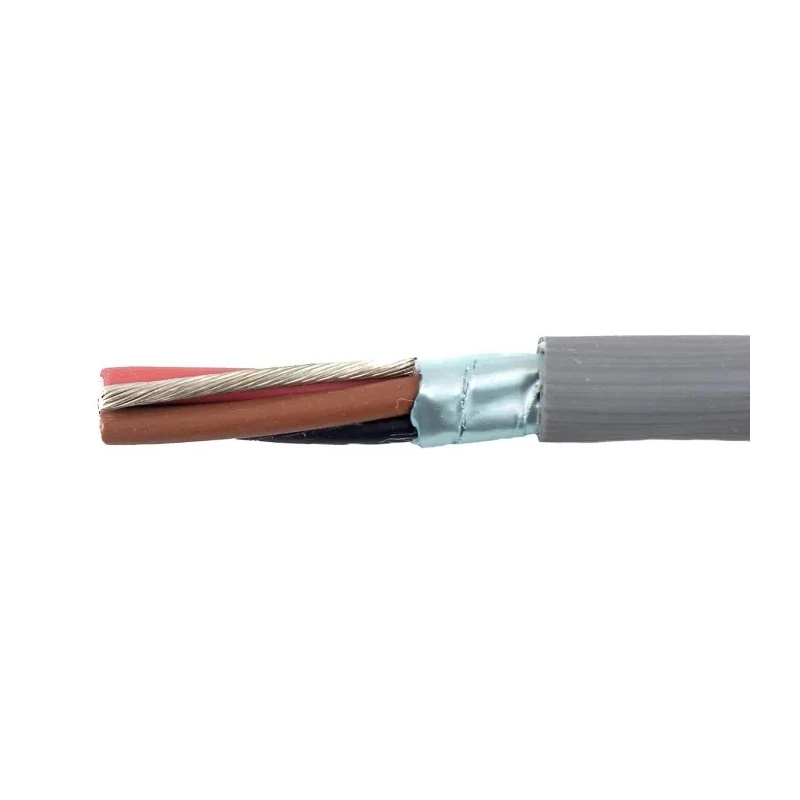

Alpha Wire 77126 SL005 Ecogen Ecocable screened control cable is a high-performance multi-conductor cable engineered for demanding electrical control and instrumentation applications. This 3-core cable features conductors made from stranded tin copper wire, each with a cross-sectional area of 0.81mm² (18 AWG), ensuring efficient and reliable signal transmission. The nominal overall diameter of the cable is 5.51 mm, with a jacket thickness of 0.81 mm, providing a compact and flexible profile suitable for varied installation environments.

The cable is sheathed with a grey modified polyphenylene ether (mPPE) jacket - a thermoplastic known for its excellent dielectric properties and mechanical strength. The mPPE jacket offers superior resistance to abrasion and reduces outgassing compared to conventional PVC cables. It is halogen-free, free from phthalates, fully recyclable, and supports environmentally friendly installations, making it ideal for sustainable industrial practices.

Designed to operate reliably in extreme temperature conditions, this Alpha Wire control cable performs in a temperature range from -50°C up to 105°C. The foil shield comprising an aluminum/polyester layer provides effective protection against electromagnetic interference (EMI), preserving signal integrity in electrically noisy environments. This makes it highly suitable for automation systems, instrumentation, and control panels where accurate transmission and safety compliance are critical.

The cable includes three color-coded conductors: black, brown, and red, facilitating easy identification during installation. Its stranded construction (16 strands of 0.25 mm diameter each) offers enhanced flexibility and longevity in dynamic applications requiring frequent flexing or movement. This product complies with stringent industry standards including UL AWM 21915 (600 V), CE, and CSA approvals, assuring high quality and safety standards are met.

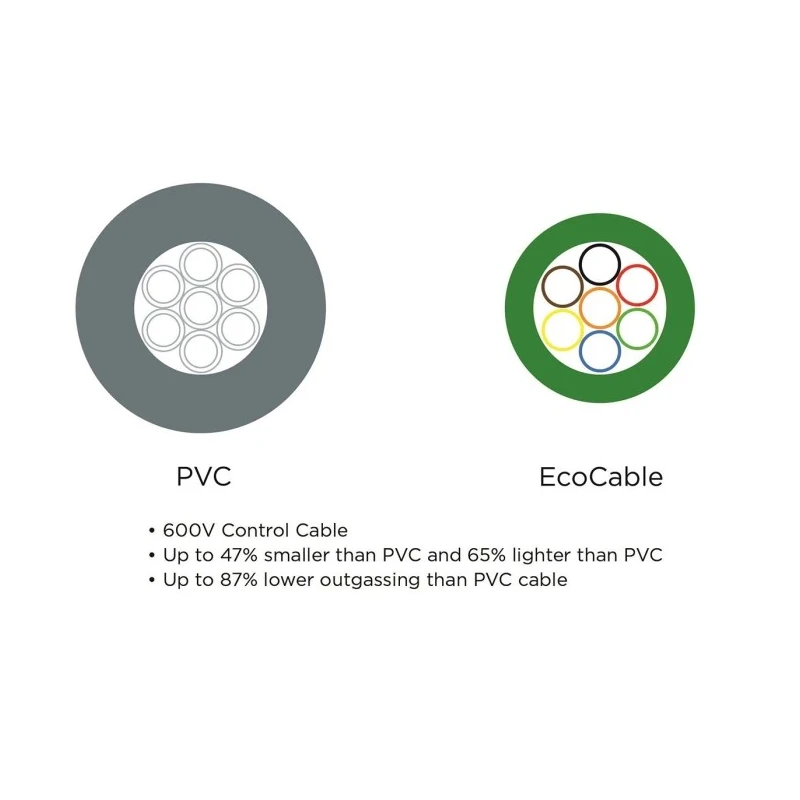

Alpha Wire Ecogen Ecocable is designed for industrial, manufacturing, automation, and instrumentation sectors, and is also compliant with NFPA 79 requirements for machine safety. Its lighter and smaller form factor compared to traditional PVC cables allows for easier handling and reduces installation time and costs. The recyclable mPPE jacket supports efforts toward greener, safer work environments while delivering dependable electrical performance.

Constructed with stranded tin copper wire for high conductivity. Rated for 600 V applications with UL, CE, and CSA approvals. Features a halogen-free, recyclable modified polyphenylene ether jacket. Foil shielded for protection against electromagnetic interference.

Operates reliably between -50°C and 105°C. Nominal cable diameter 5.51 mm, jacket thickness 0.81 mm. Includes 3 color-coded conductors: black, brown, and red. Suitable for control, instrumentation, and automation systems.

Flexible stranded conductor design enhances durability and flex life. Supports environmentally friendly installation with reduced outgassing. Explore our range of industrial Control Cables and wires at EnvMart for dependable performance in all your electrical automation needs.
