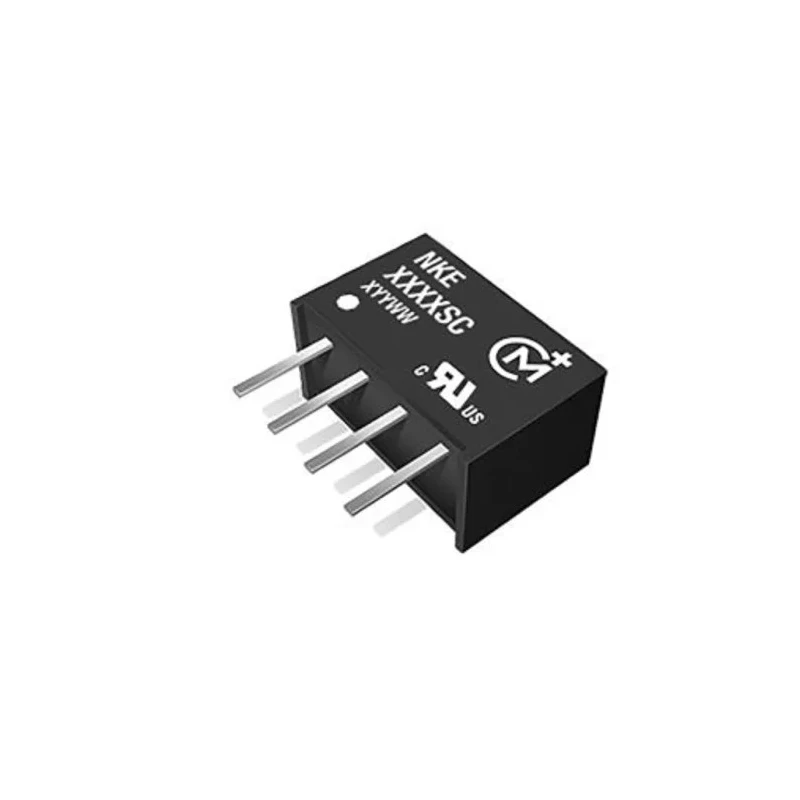

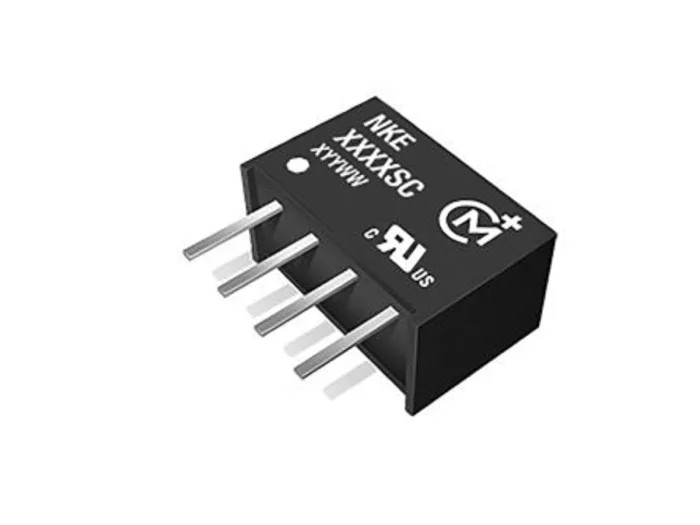

Murata Power Solutions DC/DC Converter 5V Output, 13.2V Max Input, 10.8V Min Input, 1W Power, Through Hole Mount NKE1205SC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NKE DC/DC Converter, 5V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 72% |
| Length | 11.48mm |
| Model | NKE1205SC |
| Depth | 7.46mm |
| Gross Weight | 1.09g |
| Width | 7.46mm |
| Mount Type | Through Hole |
| Series | NKE |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3981000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 10.8V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 10.8/13.2 V |
| Isolation Voltage | 3kV dc |
| Output Current 2 | 200mA |
Key Features
- High isolation voltage of 3kV dc ensures reliable operation.
- Single output design suitable for compact power supply applications.
- Fully encapsulated SIP package with UL 94V-0 material for safety.
- Operating temperature range from -40°C to 85°C provides robust performance.
- 72% efficiency minimizes power loss during operation.
- Low ripple and noise of 100mV peak-to-peak enhances output quality.
- Mean time between failures (MTBF) of 3,981,000 hours ensures durability.
- Lightweight at 1.09 grams for easy PCB integration.
Product Description
Murata Power Solutions NKE1205SC DC/DC Converter is a high-performance, fully encapsulated isolated converter providing a regulated 5V DC output from a 10.8V to 13.2V DC input voltage range. Its through hole SIP package design with UL 94V-0 material offers robustness and flame resistance for industrial and electronic applications.
This converter delivers 1 watt of output power with an efficiency of approximately 72%, making it suitable for efficient power supply designs. It features a single output and high isolation voltage of 3kV DC to protect sensitive electronics from voltage surges and noise interference.
Designed to operate reliably between -40°C and 85°C, this model supports demanding temperature environments such as industrial, telecommunications, and medical equipment. The low ripple and noise specification of 100mV peak-to-peak ensures clean and stable power delivery.
Measuring just 11.48mm in length and 7.46mm in width and depth, and weighing only 1.09 grams, it is ideal for compact electronic circuits requiring DC/DC voltage step-down or isolation.
The NKE series is RoHS compliant and meets UL 60950 safety standards. Its high MTBF rating of 3,981,000 hours guarantees long operational life supporting industrial, laboratory, and manufacturing equipment.
High isolation voltage of 3kV DC protects circuitry. Single output with 5V regulated voltage. Through hole SIP package with UL 94V-0 material. Wide operating temperature range from -40°C to 85°C. 72% efficiency reduces heat generation and power loss.
Low output ripple and noise at 100mV peak-to-peak. Compact size and very lightweight for space-sensitive designs. RoHS compliant and UL 60950 approved.
This DC/DC converter suits a wide variety of industrial, telecommunications, electronics manufacturing, and laboratory power conversion needs. Discover further Murata Power Solutions products and DC/DC Converters in the EnvMart industrial electrical category for reliable power conversion solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 5V DC.
The NKE1205SC operates with an input voltage range of 10.8V to 13.2V DC.
It delivers a maximum output power of 1 watt.
This converter has an efficiency of approximately 72%, which helps minimize power loss during operation.
The NKE1205SC measures 11.48mm in length, 7.46mm in width, and 7.46mm in depth.
It features a high isolation voltage of 3kV DC, ensuring reliable operation and protection for sensitive electronics.
The operating temperature range is from -40°C to 85°C, making it suitable for various demanding environments.
This model weighs only 1.09 grams, facilitating easy integration into compact electronic circuits.
It has a low ripple and noise specification of 100mV peak-to-peak, ensuring clean output power.
This unit features a through hole mounting type, suitable for various PCB applications.
It is RoHS compliant and meets UL 60950 safety standards, ensuring it is suitable for industrial applications.
The NKE1205SC has a mean time between failures (MTBF) of 3,981,000 hours, indicating a long operational life.
