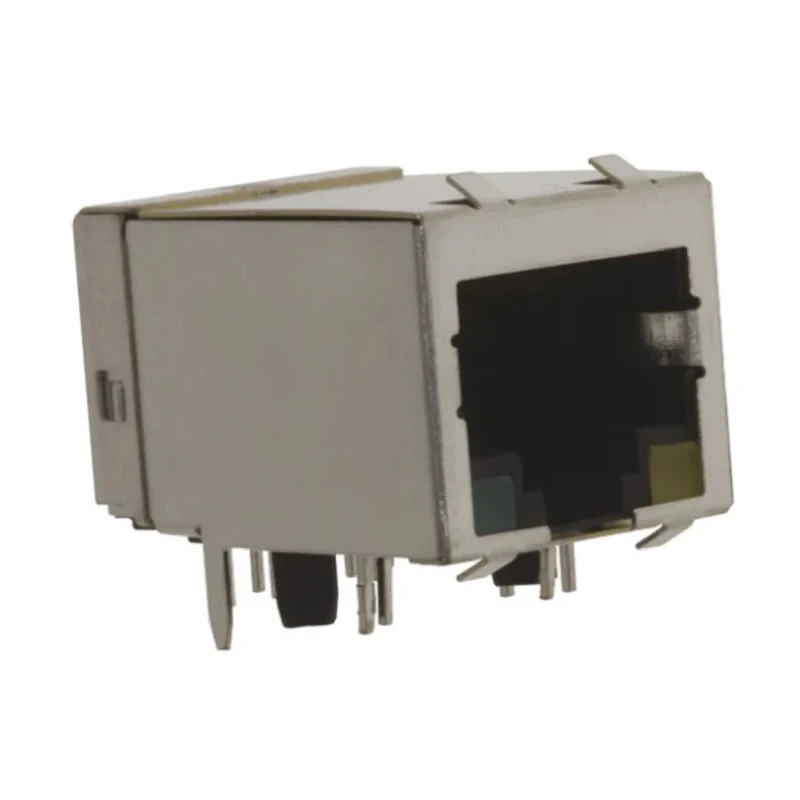

TE Connectivity Cat3 Shielded RJ45 Connector Female Through Hole 1 Port 8 Way Right Angle RJ45
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Length | 21.34mm |
| Model | RJ45 |
| Depth | 16mm |
| Connector Type | Modular Jack |
| Number Of Ways | 8 |
| Width | 15.85mm |
| Mount Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Series | 5569564 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Shielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ45 |
Key Features
- Cat3 LAN category supports voice and data transmission.
- Shielded design for EMI/RFI protection.
- Right angle orientation with through hole mount for space efficient PCB assembly.
- Gold over nickel plated phosphor bronze contacts enhance conductivity and durability.
- Integrated LEDs provide line status indication.
- Operating temperature range from -40°C to 85°C ensures reliable performance.
- Constructed with UL 94V-0 flame retardant polyester housings for safety.
- Single port with 8 ways to support diverse connectivity needs.
Product Description
TE Connectivity RJ45 Cat3 Shielded RJ45 Connector Female Through Hole 8 Way Right Angle RJ45 connector offers a reliable solution for Ethernet connectivity at Cat3 LAN category. Designed for use in electronic components and network telecom systems, this connector integrates shielding to protect against electromagnetic and radio frequency interference, enhancing signal integrity.
The housing is made from UL 94V-0 flame retardant polyester, providing safety and durability, while the gold over nickel plating on phosphor bronze contacts ensures excellent conductivity and corrosion resistance. Its right angle orientation and through hole mounting enable efficient PCB space usage in compact electronic designs.
This connector features 1 port with 8 ways and includes built-in LEDs for line status monitoring, eliminating the need for separate indicators, saving system space and complexity. Its operating temperature range from -40°C to 85°C allows performance in diverse environments.
Applications encompass voice and data networks, including telephones, routers, servers, communication equipment, and wireless base stations. The connector meets FCC part 68 compliance as supported by Telecommunications Industry Association (TIA-1096-A).
Cat3 LAN category supports voice and data transmission. Shielded design for EMI/RFI protection. Right angle, through hole mount optimizes PCB layout. Durable gold over nickel plated phosphor bronze contacts. Integrated LEDs for line status indication.
UL 94V-0 flame retardant housing enhances safety. Operating temperature range from -40°C to 85°C. Single port with 8 ways for versatile connectivity. Ideal for communications, computing, and networking equipment. Explore more Ethernet Connectors and TE Connectivity products on EnvMart for your networking and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a right angle orientation, which allows for efficient use of PCB space in compact electronic designs.
The operating temperature range for this connector is from -40°C to 85°C, ensuring reliable performance in diverse environments.
It has 1 port with 8 ways, supporting versatile connectivity needs for various applications.
This connector is shielded to protect against electromagnetic and radio frequency interference, enhancing signal integrity.
The contacts are made of phosphor bronze and are plated with gold over nickel to enhance conductivity and corrosion resistance.
It features a through hole mount, which is suitable for PCB assembly.
Yes, it includes integrated LEDs for line status indication, eliminating the need for separate indicators.
The dimensions are as follows: length is 21.34mm, width is 15.85mm, and depth is 16mm.
The termination type for this model is solder, which is common for secure connections in electronic applications.
This connector supports Cat3 LAN category, which is suitable for voice and data transmission.
The housing is constructed with UL 94V-0 flame retardant polyester, enhancing safety in electronic applications.
It is suitable for applications in voice and data networks, including telephones, routers, servers, and communication equipment.
