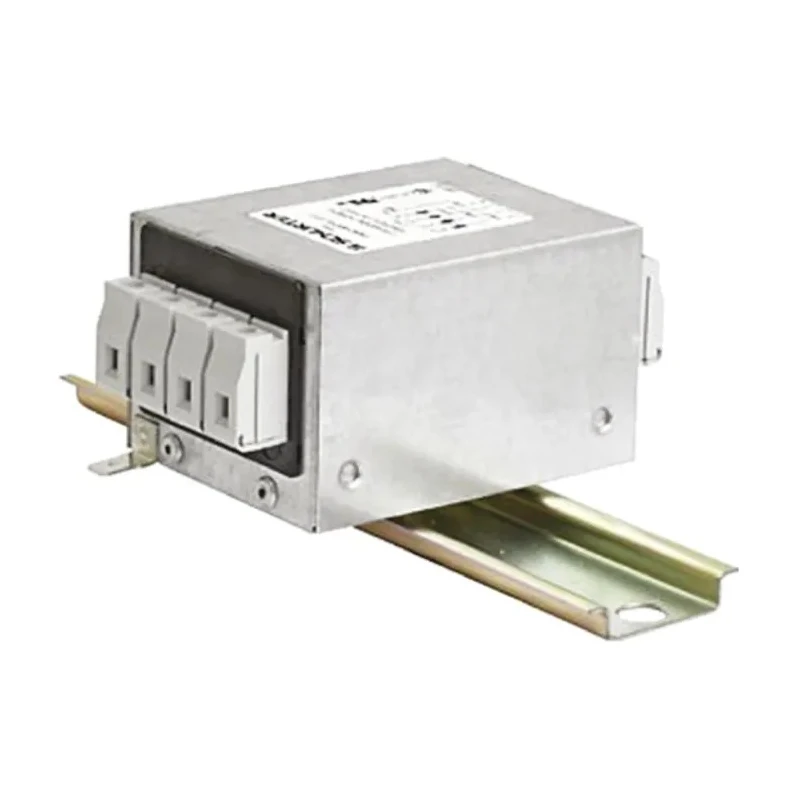

Schurter Single Stage Metal Cased 3 Phase DIN Rail RFI Filter 20A 480V AC 50Hz/60Hz FMAD-MRYB-2010
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Schurter |
| Height | 48mm |
| Length | 102mm |
| Model | FMAD-MRYB-2010 |
| Depth | 61mm |
| Mount Type | DIN Rail |
| Operating Frequency | 50, 60Hz |
| Series | FMAC RAIL |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 3.6mΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 20A |
| Number of Phases | 3 |
| Leakage Current | 500μA |
| Maximum Voltage | 480V ac |
| Inductance | 150μH |
| Termination Style | Screw |
| Power Loss | 0.08W |
Key Features
- Mounts on a standard DIN rail for easy installation.
- Features screw termination style for secure connections.
- Designed with a capacitance of 100nF to reduce electromagnetic interference.
- Operates reliably across a temperature range of -25°C to 100°C.
- Leakage current is limited to 500μA ensuring safety compliance.
- Low power loss of 0.08W enhances energy efficiency.
- Inductance value of 150μH supports effective filtering.
- Resistance is 3.6mΩ aiding minimal voltage drop.
Product Description
Schurter FMAD-MRYB-2010 is a single stage metal cased DIN rail mounting RFI filter designed for three-phase systems with neutral, supporting currents up to 20 amperes and operating voltages up to 480V AC. It is engineered to function across both 50Hz and 60Hz frequencies, making it suitable for various industrial, commercial, and manufacturing electrical installations.
This filter is constructed to provide effective electromagnetic interference suppression in power line applications, reducing noise and ensuring stable operation of connected equipment. The screw termination style facilitates secure and reliable electrical connections, while the DIN rail mount type allows easy integration within electrical panels and enclosures.
With a capacitance of 100nF and an inductance of 150μH, the filter achieves standard attenuation, conforming to IEC/EN60950 equipment safety standards. Its compact dimensions of 102mm length, 48mm height, and 61mm depth allow for space-efficient installation in electrical setups. The device has a leakage current of 500μA and low resistance of 3.6mΩ, minimizing power losses, which are limited to 0.08W during operation.
Designed to operate reliably within a temperature range of -25°C to 100°C, this filter is ideal for demanding industrial environments including manufacturing plants, power distribution systems, HVAC electrical systems, and other applications requiring robust EMI filtering.
Mounts on standard DIN rails for convenient electrical panel integration. Supports three-phase plus neutral electrical systems. Ensures EMI suppression for sensitive electronic and electrical equipment. Complies with IEC/EN60950 safety requirements.
Compact design saves installation space in control cabinets. Suitable for use in industrial, laboratory, and commercial settings. Manufactured in Romania ensuring high quality standards.
Explore the full range of Schurter EMI/RFI power line filters and components for industrial and electronic equipment at EnvMart for reliable electromagnetic compatibility solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 20A.
It operates at a maximum voltage of 480V AC.
This filter supports operating frequencies of both 50Hz and 60Hz.
The dimensions are 102mm in length, 48mm in height, and 61mm in depth.
It features a screw termination style for secure electrical connections.
The capacitance value is 100nF, which helps reduce electromagnetic interference.
The inductance value is 150μH, supporting effective filtering.
The leakage current is limited to 500μA, ensuring safety compliance.
It operates reliably within a temperature range of -25°C to 100°C.
This unit mounts on a standard DIN rail, facilitating easy installation.
The power loss is limited to 0.08W, enhancing energy efficiency.
It is suitable for industrial, commercial, and manufacturing electrical installations requiring EMI suppression.
