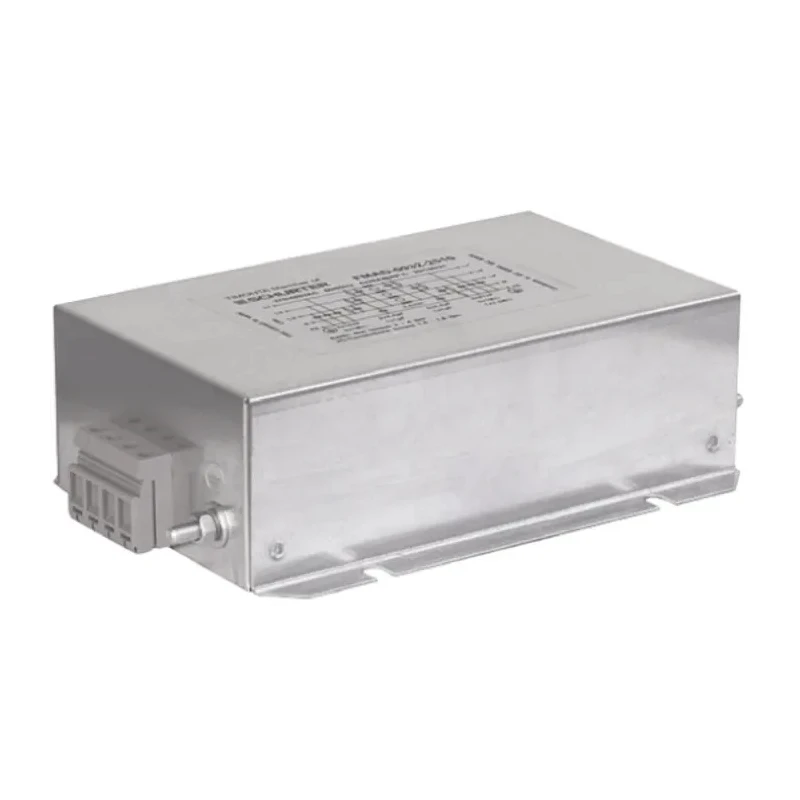

Schurter Single Stage Metal Cased Chassis Mount 3 Phase Screw RFI Filter 36A 480V AC 50/60Hz FMAD-0934-3610

Schurter FMAD-0934-3610 is a single stage metal cased chassis mount RFI filter designed for three-phase electrical systems. It operates at 36A maximum current with a maximum voltage of 480V AC and supports operation at frequencies of 50Hz and 60Hz. The filter features a screw mount type and screw termination style ensuring stable installation and reliable connection in industrial environments.

The filter's electrical characteristics include a capacitance of 4.4μF and an inductance of 1.8mH. Its leakage current is limited to 5mA to enhance safety and efficiency. Operating temperature ranges from -25°C up to 100°C enable usage in a wide range of environmental conditions. Power loss is rated at 11.5W to maintain performance without excessive heat generation.

The compact metal chassis measures 250mm in length, 151mm in depth, and 66mm in height to fit into various industrial equipment cabinets. With a resistance of 4.6mΩ, the filter maintains system efficiency by minimizing energy loss. The product has no specific standards or approvals listed, but is qualified for use in equipment complying with IEC/EN60950 standards, commonly applied in industrial and commercial power line filter applications.

This RFI filter is ideal for industrial, manufacturing, HVAC, and electronic applications requiring power line noise suppression and protection. Its robust design and precise electrical characteristics make it suitable for installations demanding reliable EMI filtering in three-phase power systems.

Package contents include one Schurter FMAD single stage screw mount 3 phase RFI filter. Schurter is recognized for durable, performance-optimized EMI filtering solutions.

For users seeking high-quality EMI protection components compatible with IEC standards, this filter provides excellent attenuation and performance reliability in demanding industrial installations.

Browse more EMI Filters and Power Line Filters at EnvMart for a complete range of electrical noise suppression components optimized for industrial and commercial use. Designed for high attenuation with a voltage rating of 275 to 480Vac at 50/60Hz.

Features screw mount type and screw termination style for secure installation. Incorporates a capacitance of 4.4μF and inductance of 1.8mH for effective filtering. Operates reliably between -25°C to 100°C temperature range.

Leakage current is low at 5mA ensuring energy efficiency. Compact metal chassis with dimensions 250mm length, 151mm depth, and 66mm height. Power loss is minimal at 11.5W during operation. Resistance of 4.6mΩ ensures minimal voltage drop and high efficiency.

Compliant for use in equipment according to IEC/EN60950 industrial standards.
