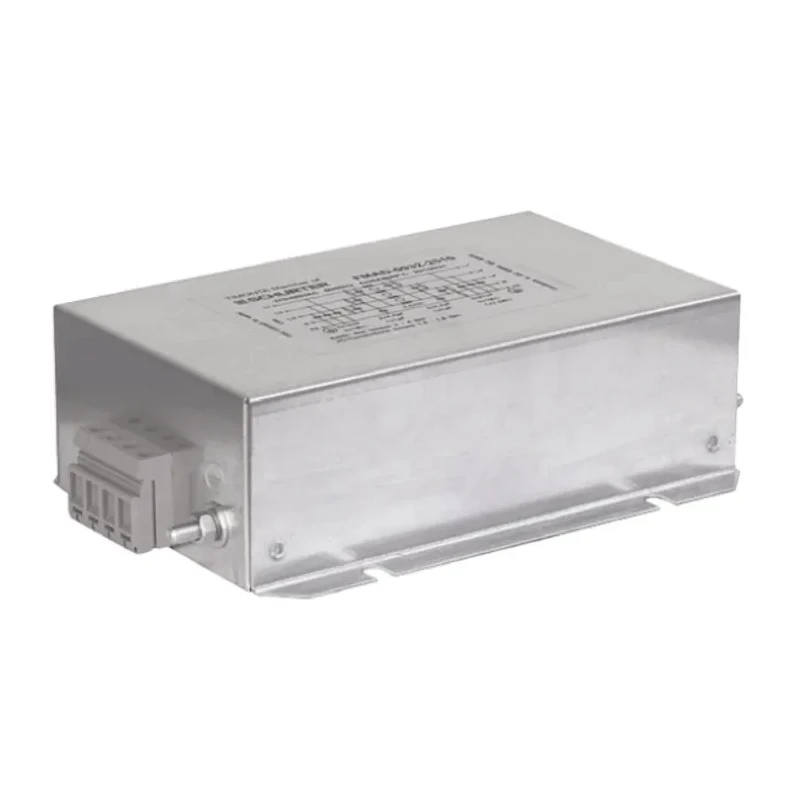

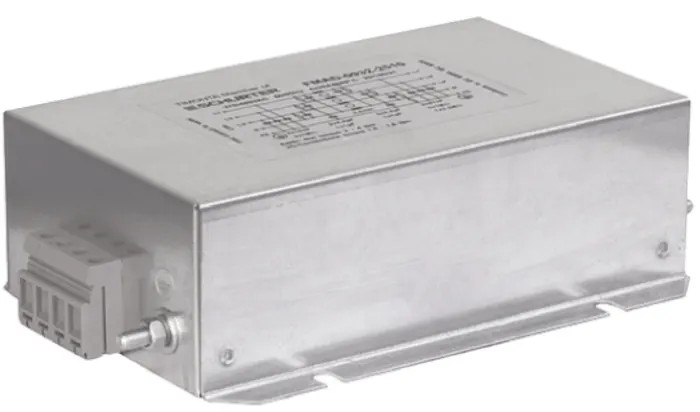

Schurter 16A 480V AC 50/60Hz 3-Phase Screw Mount RFI Filter FMAD-0931-1610
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 61mm |
| Length | 217mm |
| Model | FMAD-0931-1610 |
| Depth | 116mm |
| Mount Type | Screw |
| Operating Frequency | 50, 60Hz |
| Series | FMAD |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 15mΩ |
| Capacitance | 100nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 16A |
| Number of Phases | 3 |
| Leakage Current | 5mA |
| Maximum Voltage | 480V ac |
| Inductance | 5mH |
| Termination Style | Screw |
| Power Loss | 15.4W |
Key Features
- Single stage metal cased chassis mount with screw termination.
- Suitable for voltages ranging from 275 to 480 V AC at 50/60 Hz frequency.
- Capacitance of 100nF and inductance of 5mH with a leakage current of 5mA.
- Compact dimensions of 217mm length, 116mm depth, and 61mm height.
- Designed to operate between -25°C and 100°C for reliable performance.
- Power loss is low at 15.4W ensuring efficient operation in power line filtering.
- Resistant to 15 mΩ resistance to maintain effective EMI suppression.
- Qualified for equipment use in compliance with IEC/EN60950 standards.
Product Description
Schurter FMAD-0931-1610 is a high-quality single-stage 3-phase RFI filter with screw mount type suitable for industrial and electronic power line filtering applications. It supports maximum currents of 16A and operates at voltages up to 480V AC across 50 and 60Hz frequencies, making it ideal for diverse power systems.
The filter features a robust metal casing with chassis mount design, ensuring durability and ease of installation via screw terminations. Its electrical characteristics include a capacitance of 100nF and inductance of 5mH, combined with a low leakage current of 5mA, providing effective electromagnetic interference suppression.
This RFI filter measures 217mm in length, 116mm depth, and 61mm height, fitting typical industrial enclosure spaces. It is rated to operate within a temperature range from -25°C to 100°C, suitable for harsh environmental conditions in manufacturing, industrial machinery, and power supply protection.
Power loss is minimized at only 15.4W, contributing to efficient system operation and reduced heat generation. The filter's resistance of 15 milliohms supports stable performance in demanding EMI-sensitive environments.
Certified to comply with IEC/EN60950, this filter meets critical safety and quality standards required for electronic equipment protection in various industrial, laboratory, and commercial settings.
Single stage metal cased chassis mount with screw termination. Supports 16A maximum current and 480V AC voltage rating. Capacitance of 100nF and inductance of 5mH for effective EMI filtering. Operating temperature range from -25°C to 100°C.
Dimensions: 217mm length, 116mm depth, 61mm height for compact installation. Low power loss of 15.4W and resistance of 15 milliohms. IEC/EN60950 compliance ensures safety and reliability.
This Schurter FMAD series RFI filter is widely used in industrial tools, power connectors, electronic components, and power line filter applications. It is ideal for systems requiring high attenuation EMI protection to ensure stable operation and compliance with electromagnetic compatibility regulations.
Explore more Schurter EMI and power line filtering solutions to match diverse industrial and commercial needs at EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 16A.
It operates at voltages up to 480V AC.
The filter has a capacitance of 100nF and an inductance of 5mH.
It is designed to operate between -25°C and 100°C.
This filter measures 217mm in length, 116mm in depth, and 61mm in height.
The power loss is low at 15.4W, ensuring efficient operation.
It features a screw mount type for installation.
The leakage current for this model is rated at 5mA.
It has a resistance of 15 milliohms, which helps maintain effective EMI suppression.
It is qualified for equipment use in compliance with IEC/EN60950 standards.
It provides effective electromagnetic interference suppression due to its electrical characteristics.
