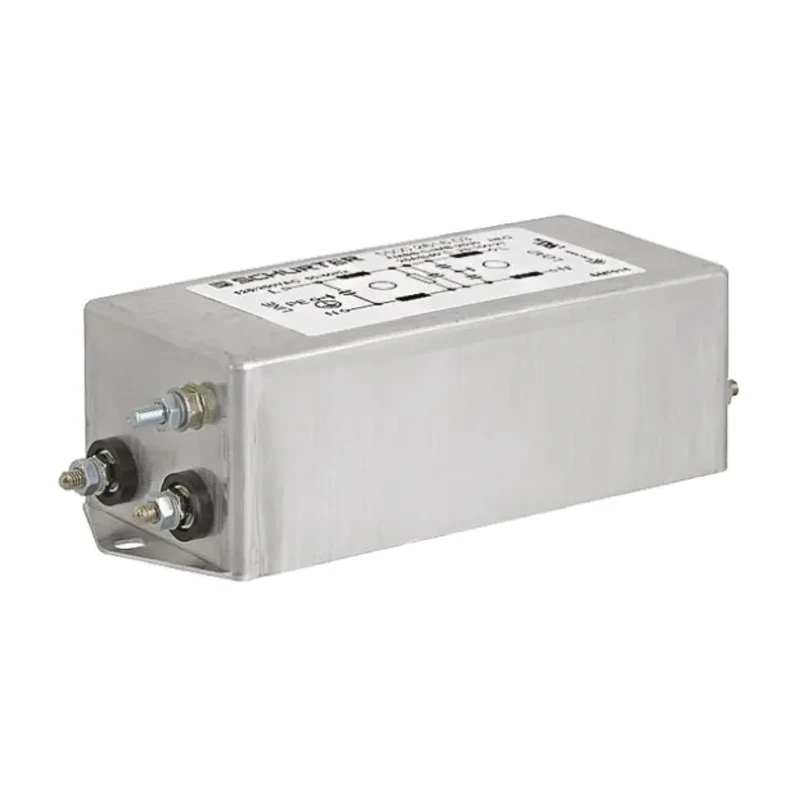

Schurter FMBB NEO RFI Filter 10A 250V AC 50Hz/60Hz Screw Mount Tab 1 Phase 5500.2603.01

Schurter 5500.2603.01 is a high-performance FMBB NEO Series RFI filter designed for industrial applications including frequency converters and UPS systems. It is engineered to attenuate both symmetrical and asymmetrical radio frequency interference within the range of 100 kHz to 300 MHz, ensuring clean power supply and equipment protection.

The filter features a chassis mount design with a rugged metal housing, suitable for harsh environments. It is optimized for 10A maximum current and supports an operating voltage of 250V AC at 50 Hz and 60 Hz frequencies.

The screw mount with tab termination style facilitates easy and reliable installation in power line filtering systems. Its two-stage single-phase configuration enhances broad-band attenuation effectiveness.

Technical details include a capacitance of 470nF and inductance of 800 microhenries, providing excellent suppression of electromagnetic interference. The device limits leakage current to 500 microamperes for safety consideration.

With compact dimensions of 90 mm length, 51 mm depth, and 31 mm height, it is engineered to fit tight enclosures. The product withstands operating temperatures ranging from -25°C minimum to 100°C maximum, ensuring durability under varying conditions.

The low resistance of 12.9 milliohms and power loss of 2.6 watts contribute to efficient energy performance. It is certified to meet UL1283 standards, reflecting compliance with recognized safety and performance benchmarks.

This RFI filter is ideal for industrial, manufacturing, HVAC, and power conditioning applications requiring effective noise suppression and equipment protection. The product supports single-phase power lines and is part of the FMBB NEO series known for broadband attenuation capability.

This two-stage single-phase broad band attenuation filter reduces RFI noise effectively. Mount type is screw with tab termination providing secure installation. Operates at frequencies of 50 Hz and 60 Hz. Compact metal chassis housing with dimensions 90mm length, 51mm depth, and 31mm height.

Capacitance of 470nF and inductance of 800μH for superior filtering performance. Leakage current limited to 500μA ensuring safety and compliance. Designed to withstand operating temperatures from -25°C to 100°C. Resistance of only 12.9mΩ and power loss of 2.6W optimizing efficiency.

Meets UL1283 standard for safety and electromagnetic compatibility. Explore more power line filters and EMI protection components on EnvMart to find the right solution for your industrial electrical needs.
