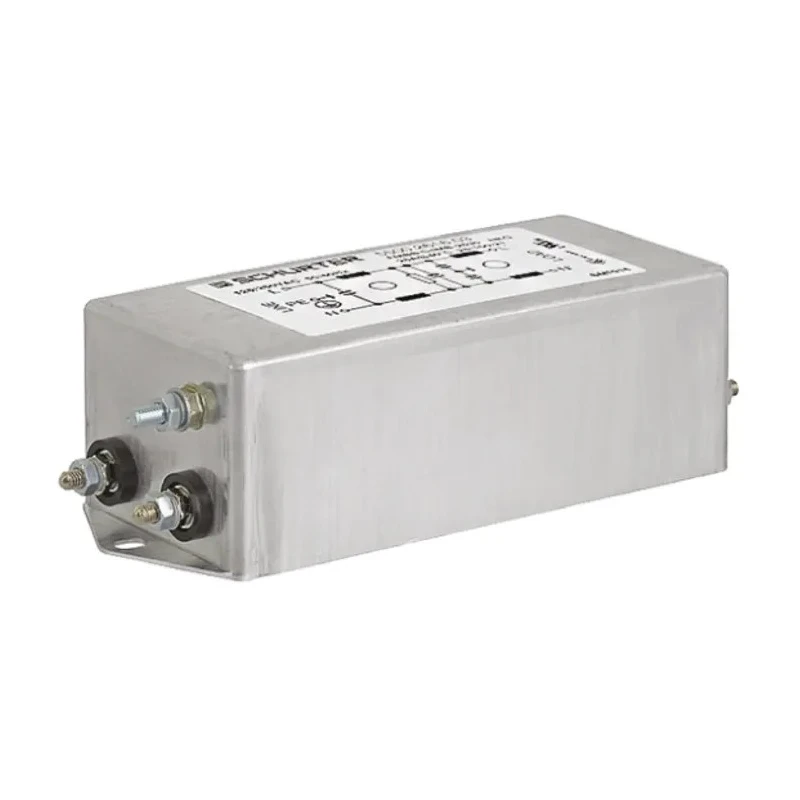

Schurter FMBB NEO 6A 250V AC 50Hz 60Hz Screw Mount RFI Filter Tab Termination 1 Phase 2 Stages 5500.2602.01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 31mm |
| Length | 77mm |
| Depth | 46mm |
| Mount Type | Screw |
| Operating Frequency | 50, 60Hz |
| Series | FMBB NEO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 26.2mΩ |
| Capacitance | 220nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 6A |
| Number of Phases | 1 |
| Leakage Current | 500μA |
| Maximum Voltage | 250V ac |
| Inductance | 970μH |
| Standards/Approvals | UL 1283 |
| Termination Style | Tab |
| Power Loss | 1.9W |
Key Features
- Designed to suppress symmetrical and asymmetrical interference in the 100kHz to 300MHz range.
- Features a metal housing chassis with tab termination for secure mounting.
- Operates effectively at 50Hz and 60Hz frequencies.
- Capacitance of 220nF and inductance of 970μH ensure high attenuation.
- Wide operating temperature range from -25°C to 100°C.
- Rated maximum current of 6A and maximum voltage of 250V AC.
- Low leakage current of 500μA guarantees energy efficiency.
- Resistance value of 26.2mΩ with power loss of 1.9W.
Product Description
Schurter 5500.2602.01 FMBB NEO Series is a high-performance, two-stage single-phase RFI filter designed for industrial applications such as frequency converters and UPS systems. This screw mount filter in a robust metal chassis effectively suppresses both symmetrical and asymmetrical interference in the frequency range of 100kHz to 300MHz, ensuring system stability and compliance with EMC requirements.
The filter operates at standard 50Hz and 60Hz frequencies with a maximum current rating of 6A and a maximum voltage of 250V AC. Its capacitive value of 220nF paired with an inductance of 970μH provides broad band attenuation. The leakage current is minimal at 500μA, ensuring efficient power use.
Designed for durability, it operates over a wide temperature range from -25°C up to 100°C. The unit features a screw mount type and tab-style terminations for secure and reliable installation. The physical dimensions of the filter are 77mm in length, 46mm in depth, and 31mm in height, making it compact for various industrial setups.
The filter’s resistance is 26.2 milliohms with a power loss of 1.9W, underscoring its energy-efficient design. It meets UL 1283 certification standards, confirming its safety and quality. This RFI filter is qualified for use in equipment according to IEC/EN 60950 standards, making it suitable for industrial and commercial environments requiring electromagnetic interference suppression.
Suppression effective against symmetrical and asymmetrical interferences from 100kHz to 300MHz. Robust metal housing for industrial durability. Screw mount installation with tab termination. Wide operating temperature from -25°C to 100°C.
Compliant with IEC/EN 60950 and UL 1283 standards. Low leakage current and energy-efficient operation. Compact dimensions facilitate versatile mounting options. Ideal for frequency converters, UPS systems, and industrial electronic equipment.
This Schurter FMBB NEO 6A 250V AC RFI Filter is essential for industrial applications demanding robust EMI/RFI protection. Explore more power line filters and EMI protection solutions at EnvMart to support your electrical component needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 6A.
It supports a maximum voltage of 250V AC.
This filter operates effectively at standard frequencies of 50Hz and 60Hz.
The dimensions are 77mm in length, 46mm in depth, and 31mm in height.
The capacitance value is 220nF.
It effectively suppresses both symmetrical and asymmetrical interference in the frequency range of 100kHz to 300MHz.
The inductance value is 970μH.
This filter uses a screw mount type for installation.
The resistance value is 26.2mΩ.
The power loss is 1.9W.
It operates within a temperature range of -25°C to 100°C.
It meets UL 1283 certification standards and is compliant with IEC/EN 60950 standards.
