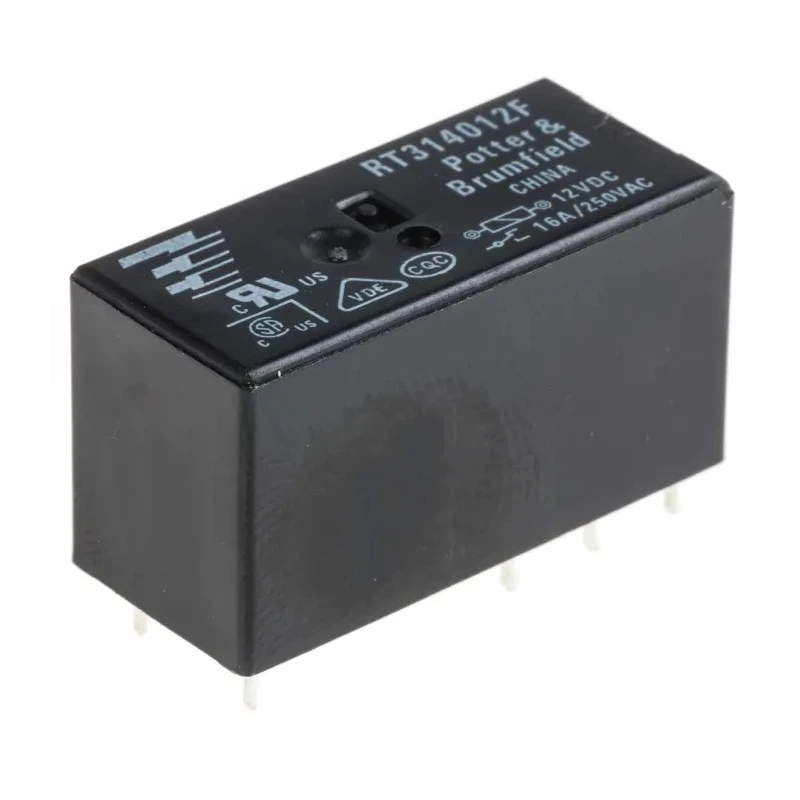

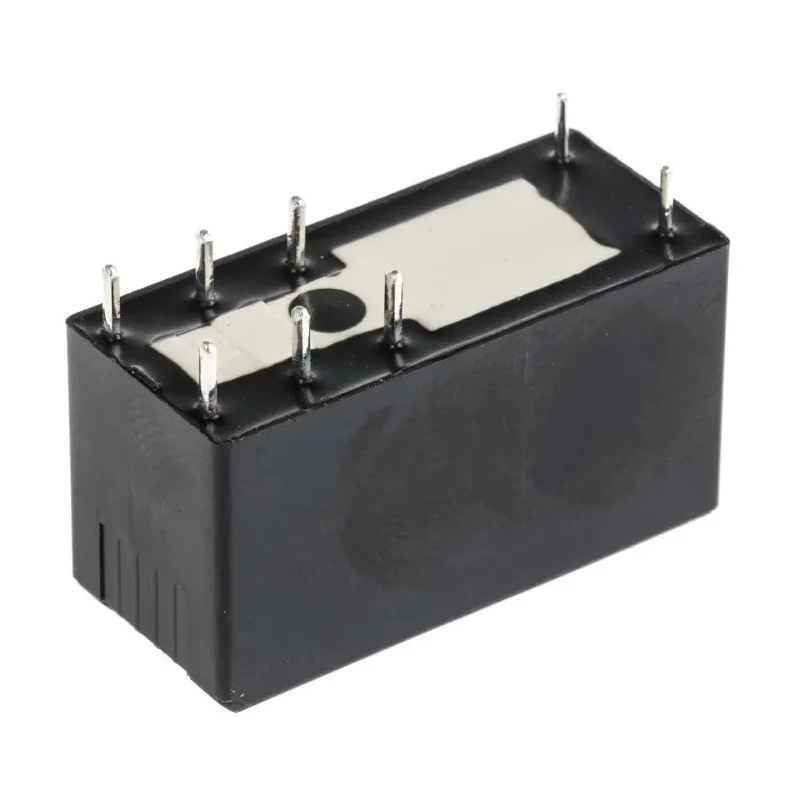

TE Connectivity Socket Power Relay 12V dc Coil 16A Switching Current SPDT RT314012F
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314012F |
| Width | 12.7mm |
| Mount Type | Socket |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, UL, UR |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
| Switching Power | 400mW |
Key Features
- The relay operates on a 12V dc coil voltage for efficient power control.
- Single-Pole Double-Throw (SPDT) contact configuration allows versatile switching.
- Supports a maximum switching current of 16A ensuring robust performance.
- Socket mount type with through-hole terminal design for secure PCB installation.
- Wide operating temperature range from -45°C to 70°C suitable for varied environments.
- Silver alloy contact material enhances electrical conductivity and longevity.
- Complies with CSA, UL, and UR standards for quality and safety assurance.
- Coil resistance of 360 ohms and coil power rating of 400mW ensure stable operation.
Product Description
TE Connectivity RT314012F is a high-quality Socket Power Relay designed for industrial and commercial applications requiring reliable switching capabilities. Featuring a 12V dc coil voltage and a Single-Pole Double-Throw (SPDT) contact configuration, this relay supports a switching current up to 16A, making it suitable for various electrical control systems.
The relay belongs to the RT1 series, known for through-hole socket mounting and flux proof pinning with 3.5mm spacing. The device offers robust performance with operating temperature ranging from -45°C to 70°C, making it adaptable to harsh environments encountered in automation, interfacing, security lighting, and heating systems.
Compact in size with precise dimensions (29mm length, 12.7mm width, 15.7mm height), this relay ensures easy PCB integration while its silver alloy contacts provide excellent conductivity and durability. Certified under CSA, UL, and UR standards, the RT314012F guarantees quality and safety compliance required in critical industrial controls.
The coil resistance is 360 ohms with a coil power rating of 400mW, optimizing energy consumption during operation. The relay operates on a 12V dc coil voltage for efficient power control. Single-Pole Double-Throw (SPDT) contact configuration allows versatile switching.
Supports a maximum switching current of 16A ensuring robust performance. Socket mount type with through-hole terminal design for secure PCB installation. Wide operating temperature range from -45°C to 70°C suitable for varied environments.
Compact dimensions: length 29mm, width 12.7mm, height 15.7mm for space-saving integration. Silver alloy contact material enhances electrical conductivity and longevity. Complies with CSA, UL, and UR standards for quality and safety assurance.
Coil resistance of 360 ohms and coil power rating of 400mW ensure stable operation. Discover more industrial relays and power control devices from TE Connectivity by browsing the comprehensive EnvMart catalogue for relays and contactors.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates on a 12V dc coil voltage, which allows for efficient power control.
This model supports a maximum switching current of 16A, making it suitable for various electrical control systems.
It features a Single-Pole Double-Throw (SPDT) contact configuration, allowing for versatile switching capabilities.
The relay has a wide operating temperature range from -45°C to 70°C, which makes it adaptable to harsh environments.
This relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, facilitating easy PCB integration.
It is designed for socket mounting with a through-hole terminal design, ensuring secure installation on PCBs.
The coil resistance is 360 ohms, which helps ensure stable operation during use.
The contact material is silver alloy, which enhances electrical conductivity and longevity.
It complies with CSA, UL, and UR standards, ensuring quality and safety assurance.
The coil power rating is 400mW, optimizing energy consumption during operation.
The relay supports a switching power of 400mW, which is suitable for various applications.
This relay belongs to the RT1 series, known for its reliable performance in industrial applications.
