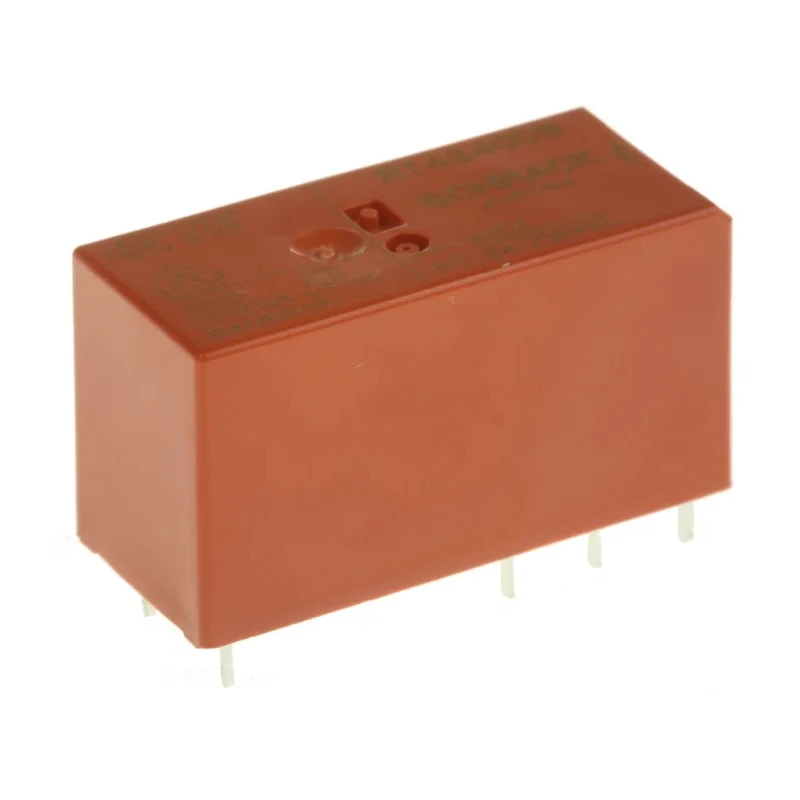

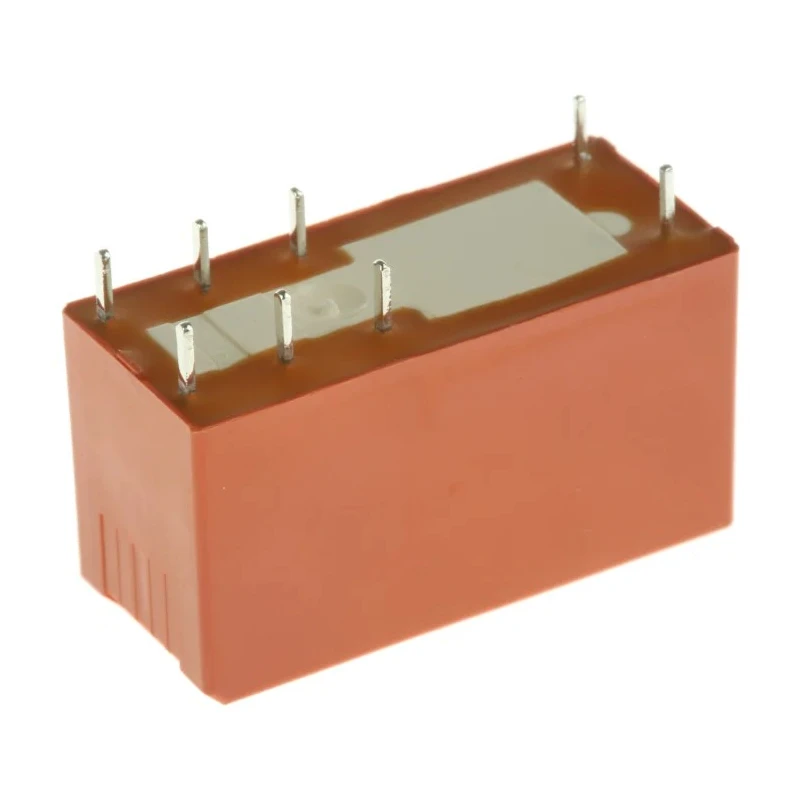

TE Connectivity PCB Power Relay 9V dc Coil 8A Switching Current DPDT RT424009
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424009 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | CQC, REACH, RoHS, UL, VDE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1724Brand: TE ConnectivityManufacturers Part No.: RT424009Distrelec Article No.: 301-67-825 |
| Coil Resistance | 200Ω |
| Coil Voltage | 9V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Operates with a coil voltage of 9V dc and coil resistance of 200 ohms.

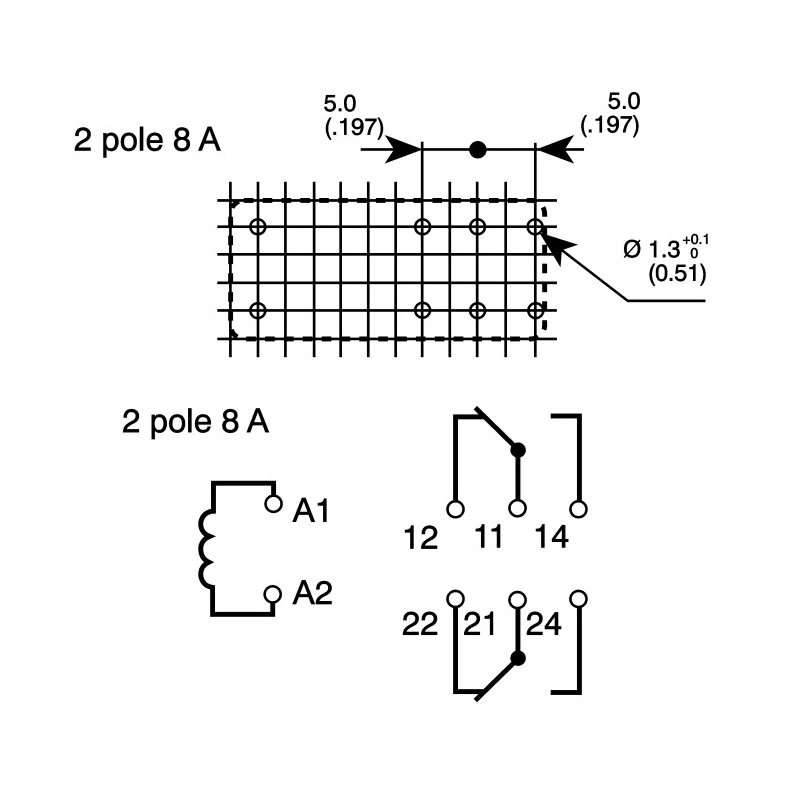

- Double Pole Double Throw (DPDT) contact configuration.
- Suitable for PCB mounting with solder terminal type.
- Rated switching current of 8A with switching power of 2kVA.
- Operates reliably between -40°C and 85°C ambient temperature.
- Contact material made from high conductivity silver alloy.
- Low coil power consumption of 400mW supports energy efficiency.
- Complies with CQC, REACH, RoHS, UL, and VDE international standards.
Product Description
TE Connectivity RT424009 is a robust PCB power relay featuring a 9V dc coil and a switching current rating of 8A with a DPDT contact configuration. It is designed primarily for interface applications, automation systems, domestic equipment, security lighting, and heating system controls across industrial, manufacturing, and commercial sectors.
This relay belongs to the RT2 series, which incorporates through-hole mounting and 5mm pinning to provide reliable and flux-proof operation. The relay's contact material consists of a silver alloy, guaranteeing excellent conductivity and long service life. It operates efficiently at coil power of 400mW and supports AC switching voltage up to 400V, accommodating demanding electrical load scenarios.
Size-wise, the relay measures 29mm in length, 12.7mm in width, and a height of 15.7mm, making it suitable for compact PCB designs. The device operates reliably over a broad ambient temperature range from -40°C to 85°C, providing excellent performance stability in harsh environments.
The RT424009 meets international safety and environmental standards including CQC, REACH, RoHS, UL, and VDE certifications, confirming its quality and compliance for global markets. It is well suited for use in industrial automation, manufacturing machinery, HVAC systems, and electrical equipment control panels.
Operates with a coil voltage of 9V dc and a coil resistance of 200 ohms. Double Pole Double Throw (DPDT) contact configuration for versatile switching. PCB mount with solder terminal types for secure and stable installation.
Rated switching current of 8A with switching power of 2kVA. Compact footprint ideal for tight PCB layouts. Wide operating temperature from -40°C to 85°C. Silver alloy contact material for high conductivity and durability.
Low coil power consumption at 400mW keeps energy usage efficient. Certified to multiple safety and environmental standards: CQC, REACH, RoHS, UL, and VDE. Package includes one RT424009 PCB power relay ready for integration into electronic and electrical control systems.
Explore more Power Relays and electrical components in the Electronics & Electricals category at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 9V DC.
It has a rated switching current of 8A.
This relay features a Double Pole Double Throw (DPDT) contact configuration.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
The coil resistance is 200 ohms.
The maximum operating temperature is 85°C.
It complies with CQC, REACH, RoHS, UL, and VDE standards.
The coil power consumption is 400mW.
The switching power rating is 2kVA.
This model supports PCB mounting with solder terminal types.
The minimum operating temperature is -40°C.
It is suitable for interface applications, automation systems, domestic equipment, and HVAC systems.
