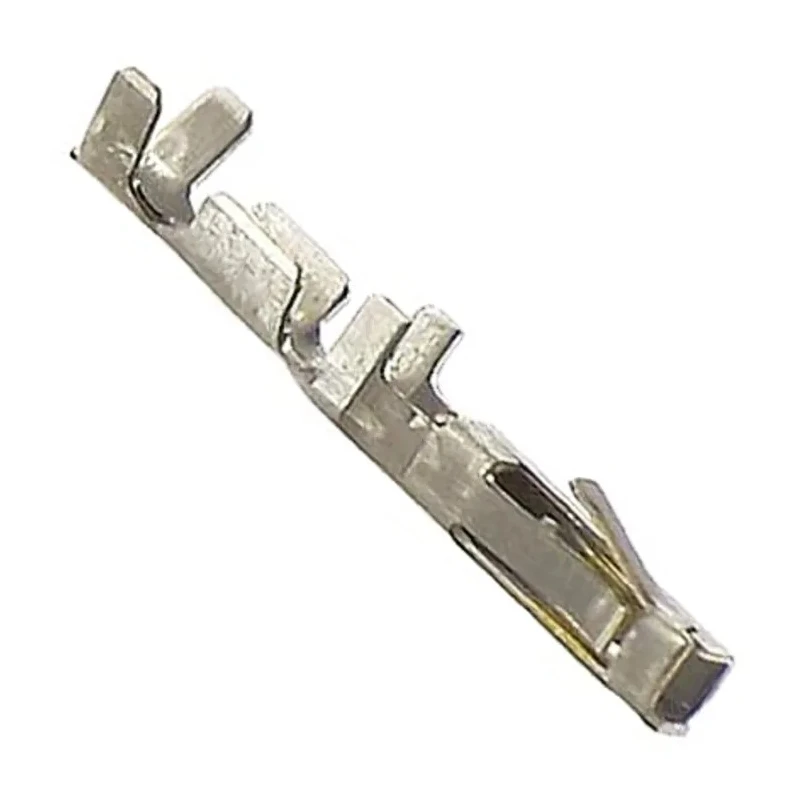

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 5A Current, 30-26 AWG Wire Size 1-794611-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Micro MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | lance mechanism for secure retention in housing |
| For Use With | Micro MATE-N-LOK Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- This crimp terminal is designed for Micro MATE-N-LOK connector housings ensuring reliable wire-to-wire and wire-to-board connections.
- Contact material is phosphor bronze plated with gold for enhanced conductivity and corrosion resistance.
- The terminal features a dual beam contact design to ensure strong electrical connections.
- A locking lance mechanism provides secure retention within the connector housing for long-term stability.
- It supports wires with cross-sectional areas ranging from 0.05 mm² to 0.1 mm².
- The terminal can withstand operating temperatures from -40°C to 105°C.
- Termination is by crimp process ensuring consistent connection quality.
- This component is ideal for use in industrial, consumer electronics, and LED lighting applications due to its low profile and reliable electrical performance.
Product Description
TE Connectivity 1-794611-1 Micro MATE-N-LOK Series Female Crimp Terminal is engineered for high reliability in electronic and industrial connector applications. Rated for a maximum current of 5 amperes, this terminal supports wire sizes from 30 AWG to 26 AWG (0.05 mm² to 0.1 mm²) ensuring versatile connectivity for various wiring needs.
The terminal is fabricated from phosphor bronze material and plated with gold to enhance corrosion resistance and electrical conductivity. This ensures a durable connection with a maximum contact resistance of 20 milliohms, suitable for precision electrical applications.
A dual beam contact design provides secure and consistent electrical contact, while the locking lance mechanism offers firm retention within the Micro MATE-N-LOK connector housings, preventing terminal backout or loosening during operation.
The crimp termination process ensures rapid and reliable wire preparation and installation, reducing assembly time and maintaining connection integrity over life cycles. Dual beam contact design for superior electrical reliability.
Gold-plated phosphor bronze contact material provides resilience against corrosion. Locking lance mechanism ensures secure retention within the housing. Compatible with wire sizes from 30 AWG to 26 AWG. Rated for 5A maximum current suitable for various industrial and consumer applications.
Operating temperature from -40°C to 105°C enabling use in diverse environments. Designed for Micro MATE-N-LOK connector housings facilitating easy integration. Ideal for wire-to-wire and wire-to-board connections in electronic assemblies.
For engineers and designers using Micro MATE-N-LOK connector systems, this crimp terminal enhances circuit reliability and assembly efficiency. EnvMart offers this component to support industrial, laboratory, electronics manufacturing, and commercial HVAC applications.
Explore more products in our Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 5 amperes.
This terminal supports wire sizes ranging from 30 AWG to 26 AWG, which corresponds to cross-sectional areas of 0.05 mm² to 0.1 mm².
The operating temperature range for this crimp terminal is from -40°C to 105°C.
The contacts in this terminal are made from phosphor bronze and are plated with gold to enhance conductivity and corrosion resistance.
This terminal features a lance mechanism that provides secure retention within the Micro MATE-N-LOK connector housing, preventing terminal backout or loosening during operation.
This model uses a crimp termination process, ensuring a consistent and reliable connection quality.
The maximum contact resistance for this terminal is 20 milliohms.
This crimp terminal is suitable for use in industrial, consumer electronics, and LED lighting applications due to its reliable electrical performance.
The dual beam contact design ensures secure and consistent electrical contact, enhancing circuit reliability.
This crimp terminal is manufactured in India.
This terminal is designed for use with Micro MATE-N-LOK connector housings, facilitating easy integration.
The gold plating on the contacts enhances corrosion resistance and electrical conductivity, ensuring a durable connection.
