Phoenix Contact FKC 2.5/4-ST-5.08 Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 1 Row, 320 V, 12 A 1873074

Free Delivery in India | Lowest Global Shipping Charges

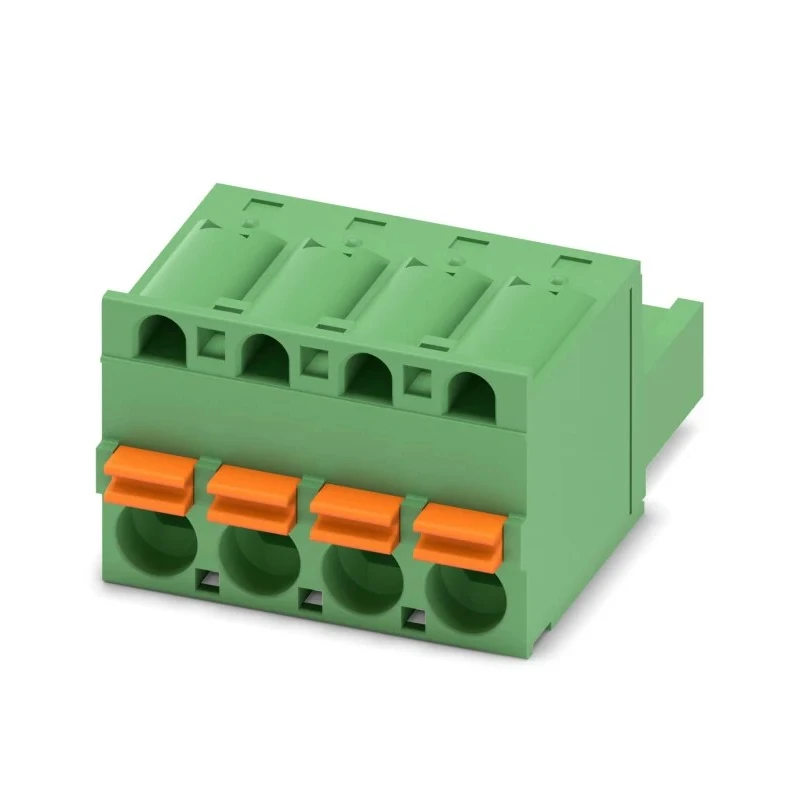

Phoenix Contact FKC 2.5/4-ST-5.08 Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 1 Row, 320 V, 12 A 1873074

Name: Phoenix Contact FKC 2.5/4-ST-5.08 Series Pluggable Terminal Block, 4-Contact, 5.08 mm Pitch, 1 Row, 320 V, 12 A 1873074
Brand: PHOENIX CONTACT
SKU: 369267
Price: 4.31 USD
Availability: InStock



Category Pluggable Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Straight
Current	12A
Length	25.73mm
Model	1873074
Depth	15mm
Width	20.94mm
Housing Material	Polyamide
Series	FKC 2.5/4-ST-5.08
Number of Rows	1
Pitch	5.08mm
Number of Contacts	4
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Push-in Spring
For ferrules see stock numbers	804-6912 and 804-6916
For ferrule crimping pliers see stock number	803-4405

Key Features

Constructed with green polyamide housing providing excellent insulation.
Supports wire sizes from 0.2 mm² to 2.5 mm² or 24 AWG to 12 AWG.
Features push-in spring cage connections for tool-less installation and reliable contact force.
Single row terminal block with straight orientation ensures easy PCB mounting.
Suitable for industrial and electronic applications requiring secure and fast wire connections.
Certified for flame resistance with UL 94 V-0 rating ensuring safety under fire exposure.
Designed for use in computers, TVs, industrial equipment, and other electronic devices.

Product Description

Phoenix Contact 1873074 is a 4-contact Pluggable Terminal Block from the FKC 2.5/4-ST-5.08 series, designed for industrial and electronic applications requiring reliable PCB wiring connections. The terminal block supports a voltage rating of 320 V and a current capacity of 12 A. Its push-in spring cage connection technology enables easy, tool-less wire insertion and secure contacts, increasing maintenance efficiency.

The housing is made of green polyamide material, providing robust electrical insulation and resistance to impact. The product meets UL 94 V-0 flame resistance standards, making it safe for demanding environmental conditions. It features a single row layout with a 5.08 mm pitch and a straight orientation that facilitates straightforward PCB mounting and wiring organization.

This terminal block supports wire cross sections ranging from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG), accommodating a broad variety of wiring needs. Measuring 25.73 mm in length, 20.94 mm in width, and 15 mm in depth, the device is compact and space-efficient, ideal for use in computers, television sets, industrial machinery, and other electrical equipment where dense packing is required.

Green polyamide housing offers excellent insulation and mechanical durability. Push-in spring cage connection allows fast, maintenance-friendly wiring. Rated for 320 V and 12 A ensuring safe operational limits. Single row design with 5.08 mm pitch for standard PCB integration.

Compatible with wire sizes 0.2 mm² to 2.5 mm² or 24 AWG to 12 AWG. Certified UL 94 V-0 flame resistance enhances circuit safety. Compact dimensions support high-density electronic assemblies.

This terminal block series supports integration into industrial automation, manufacturing equipment, and consumer electronics, providing reliable and secure connections for a range of power and signal circuits. Its tool-less push-in design contributes to faster assembly and reduces wiring errors. For additional wiring accessories, refer to compatible ferrules and crimping pliers with stock numbers 804-6912, 804-6916, and 803-4405 respectively.

Explore more terminal blocks and connectors at EnvMart for reliable electronics assembly solutions.
