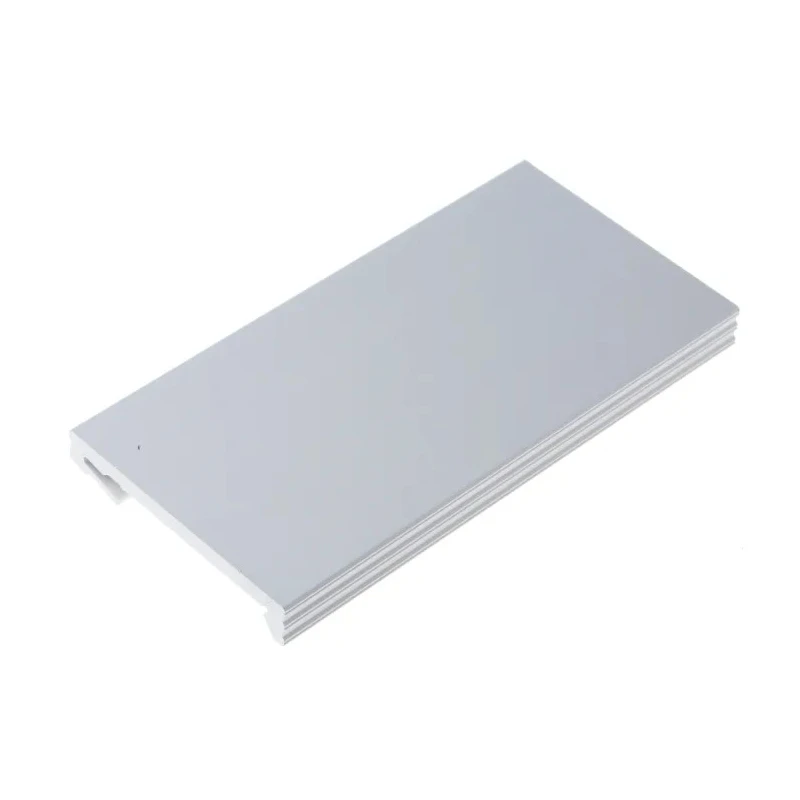

Fischer Elektronik Heatsink Mounting Clip for Use with DIN Rail KL 35 100

Fischer Elektronik KL 35 100 is a heatsink mounting clip specifically engineered for use with DIN Rail systems, offering a reliable solution for fastening heatsinks in electrical and electronic assemblies.

This mounting clip is engineered to fit standard 35 mm rail terminals, accommodating rail material thicknesses ranging from 1 mm up to 2.3 mm, in compliance with DIN EN 50 022 regulations. The material used is natural aluminium, providing excellent strength while maintaining a lightweight profile and resistance to corrosion.

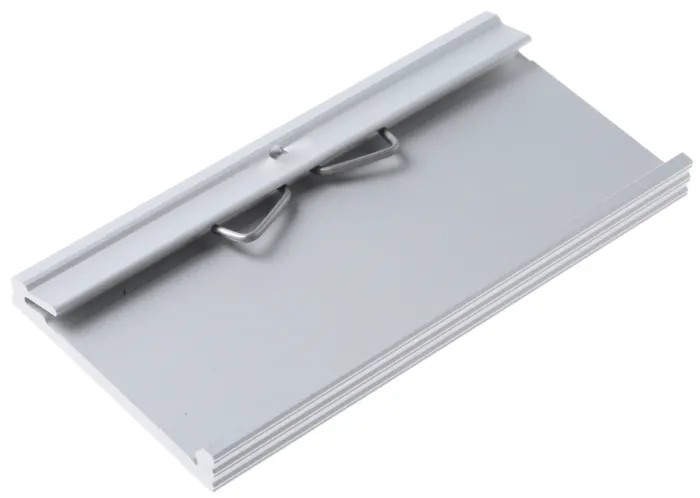

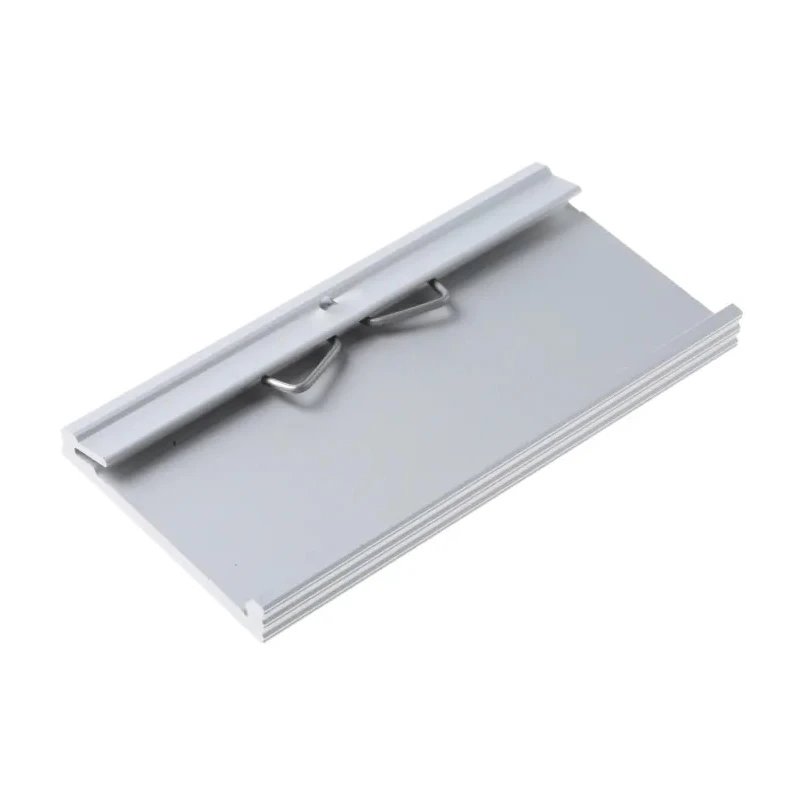

The clip features a solid and universal clamp design that offers stable extrusion and integrated spring action. This ensures that once installed, the heatsink remains firmly secured under various operating conditions. The "snap open" mechanism expedites installation and removal processes, reducing labor time during assembly and maintenance.

Designed for industrial electrical, electronics, and HVAC applications, these mounting clips are ideal for securing heatsinks in power supply units, thermal management systems, and control panels. Their compliance with RoHS standards confirms their environmentally responsible manufacturing process.

The clip fits universal 35 mm rail terminals with material strengths from 1 to 2.3 mm. Constructed from natural colour aluminium for durability and corrosion resistance. Features a stable extrusion profile with integrated spring action for firm mounting.

Snap open design enables easy and quick assembly without tools. Compliant with DIN EN 50 022 standards ensuring reliability in electrical installations. RoHS certified, meeting environmental compliance standards. Fischer Elektronik provides a trusted range of heat dissipation and mounting solutions used across electronics manufacturing, industrial automation, and electrical installations.
