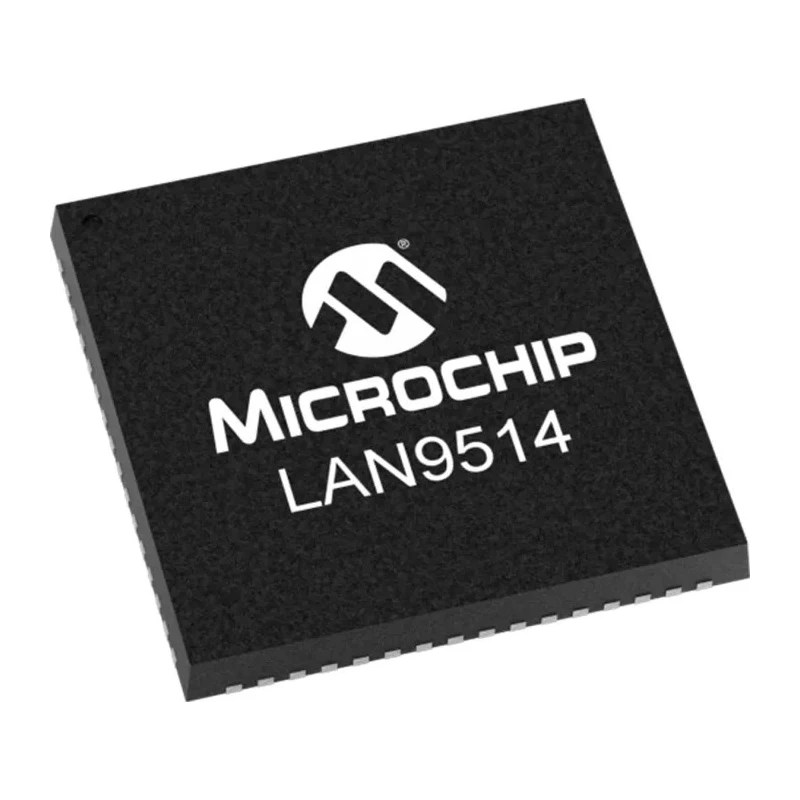

Microchip 64-Pin QFN Ethernet Controller 3.3 V 480 Mbps USB Full Duplex/Half Duplex LAN9514-JZX

Free Delivery in India | Lowest Global Shipping Charges

Microchip 64-Pin QFN Ethernet Controller 3.3 V 480 Mbps USB Full Duplex/Half Duplex LAN9514-JZX

Name: Microchip 64-Pin QFN Ethernet Controller 3.3 V 480 Mbps USB Full Duplex/Half Duplex LAN9514-JZX
Brand: Microchip
SKU: 368099
Price: 9.43 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1mm
Length	9mm
Model	LAN9514-JZX
Width	9mm
Mount Type	Surface
Maximum Operating Temperature	70°C
Package Type	QFN
Minimum Operating Temperature	0°C
Communication Mode	Full Duplex/Half Duplex
Interface Type	USB
Pin Count	64
Maximum Supply Voltage	3.3V
Supply Current	74mA
Maximum Data Rate	480Mbps
Standard Supported	IEEE 802.3u

Key Features

Operates at a maximum supply voltage of 3.3 V.
Features a 64-pin QFN package for surface mount applications.
Supports IEEE 802.3u Ethernet standard for reliable network communication.
Operating temperature range from 0°C to 70°C ensures durability.
Compact dimensions of 9mm x 9mm x 1mm for space-efficient designs.
Low supply current of 74 mA optimizes power consumption.
Compatible with USB 2.0 host systems providing fast USB to Ethernet bridging.
Suitable for industrial, commercial, and embedded networking applications.

Product Description

Microchip LAN9514-JZX is a 64-Pin QFN package Ethernet controller featuring USB interface and supporting data rates up to 480 Mbps. Designed for full duplex and half duplex communication modes, it operates reliably within a 3.3 V supply voltage environment. This device supports IEEE 802.3u Ethernet standards, making it a versatile choice for modern networking solutions.

The controller is optimized for surface mount technology with compact dimensions of 9 mm in length and width and 1 mm in height. Its low supply current of 74 mA ensures efficient performance in power-sensitive applications. Operating temperature range from 0°C to 70°C makes it suitable for various industrial and commercial environments.

Microchip LAN9514-JZX is ideal for embedded system designers needing USB-to-Ethernet interface solutions in small form factor devices. The Ethernet controller supports USB 2.0 host connectivity, providing seamless data communication for embedded and consumer electronics.

Operates at a maximum supply voltage of 3.3 V for stable performance. 64-pin QFN package enables surface mounting for compact PCB designs. Supports IEEE 802.3u standard, ensuring compatibility with Ethernet networks. Operating temperature between 0°C and 70°C suits a wide range of applications.

Compact size of 9 x 9 x 1 mm minimizes space usage on circuit boards. Low current consumption of 74 mA aids in power-efficient designs. Supports both full duplex and half duplex communication modes. Enables USB 2.0 hub and 10/100 Ethernet controller integration.

This Ethernet controller is commonly used in networking equipment, embedded systems, industrial automation, and commercial devices requiring reliable USB to Ethernet connectivity. Its robust design and compliance with Ethernet standards ensure dependable network performance.

Explore the complete range of semiconductor Ethernet Interface Ics in EnvMart's comprehensive catalog, including USB Interface ICs and Ethernet controllers from leading manufacturers such as Microchip.
