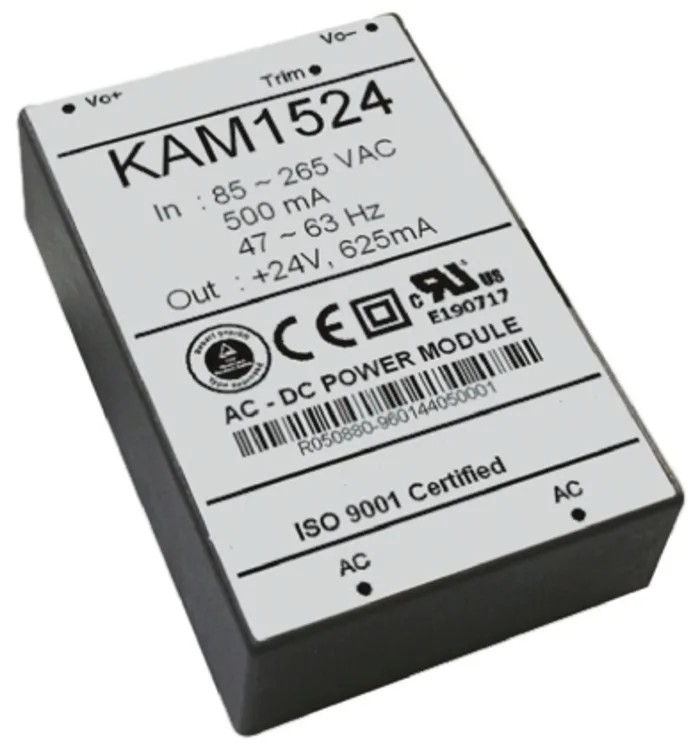

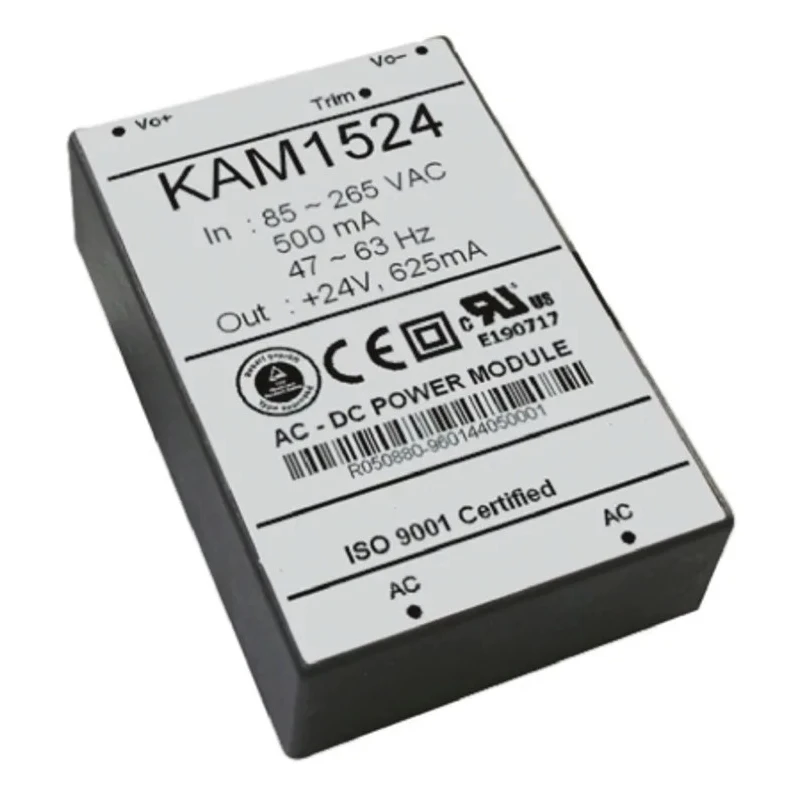

RS PRO Switching Power Supply 24V DC, 15W, 625mA Output Current, PCB Mount KAM15 Series 771-9436

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Switching Power Supply 24V DC, 15W, 625mA Output Current, PCB Mount KAM15 Series 771-9436

Name: RS PRO Switching Power Supply 24V DC, 15W, 625mA Output Current, PCB Mount KAM15 Series 771-9436
Brand: RS PRO
SKU: 367926
Price: 20.22 USD
Availability: InStock



Category Switching Power Supply Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Power	15W
Efficiency	82%
Length	76.2mm
Model	771-9436
Depth	22.8mm
Gross Weight	160g
Width	50.8mm
Mount Type	PCB
Series	RS PRO
Maximum Operating Temperature	71°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Standards/Approvals	EN 62368, EN 60335, CISPR32/EN 55032, UL 62368, IEC 62368, UL 94 V-0
Maximum Output Voltage	24V dc
SMPS Output Current	625mA
Minimum Input Voltage	85V ac

Key Features

Universal input voltage range from 85V AC to 265V AC for versatile applications.
Maximum output voltage of 24V DC with an output current of 625mA.
Compact dimensions measuring 76.2mm length, 50.8mm width, and 22.8mm depth suitable for small spaces.
Operation temperature range from -40°C to 71°C ensures high reliability in various environments.
Encapsulated design improves durability and safety in industrial conditions.
High efficiency of up to 82% helps reduce power losses.
Compliant with international standards including EN 62368, UL 62368, CISPR32, IEC 62368, and UL 94 V-0 flammability rating.
Short circuit protected and equipped with internal input filter for enhanced safety.

Product Description

RS PRO 771-9436 Switching Power Supply is a reliable 15W PCB mount power supply designed to deliver a stable 24V DC output at 625mA. It features a universal AC input voltage range from 85V AC to 265V AC and supports a maximum input voltage of 370V and 264V DC. The encapsulated KAM15 series unit is compact with dimensions 76.2mm (L) x 50.8mm (W) x 22.8mm (D), allowing installation in space-constrained environments.

This switching power supply offers high efficiency (82%) to minimize energy loss and includes built-in short circuit protection and an internal PI input filter for enhanced operational safety. Rated for operation in temperatures ranging from -40°C to 71°C, it is robust for industrial applications.

Manufactured according to rigorous international standards such as EN 62368, UL 62368, IEC 62368, CISPR32/EN 55032, and UL 94 V-0, this unit ensures compliance and safety for electronics and power equipment. It is suitable for a wide range of industrial uses including factory automation systems, off-site testing and measurement, and communication systems.

Universal Input Range 85 to 265 VAC for broad compatibility. Single output channel delivering 24V DC at 625mA. Compact PCB mount encapsulated case design. Short circuit protection and internal input filtering. High efficiency up to 82% reduces power consumption.

Temperature operating range from -40°C to 71°C. Compliant with major safety and electromagnetic standards. Lightweight at 160g for easy installation.

This Switching Power Supply is an excellent choice for electronics manufacturers and industrial integrators seeking dependable power solutions compliant with global standards. Browse the Electronics & Electricals category for more power supplies and transformers available on EnvMart.
