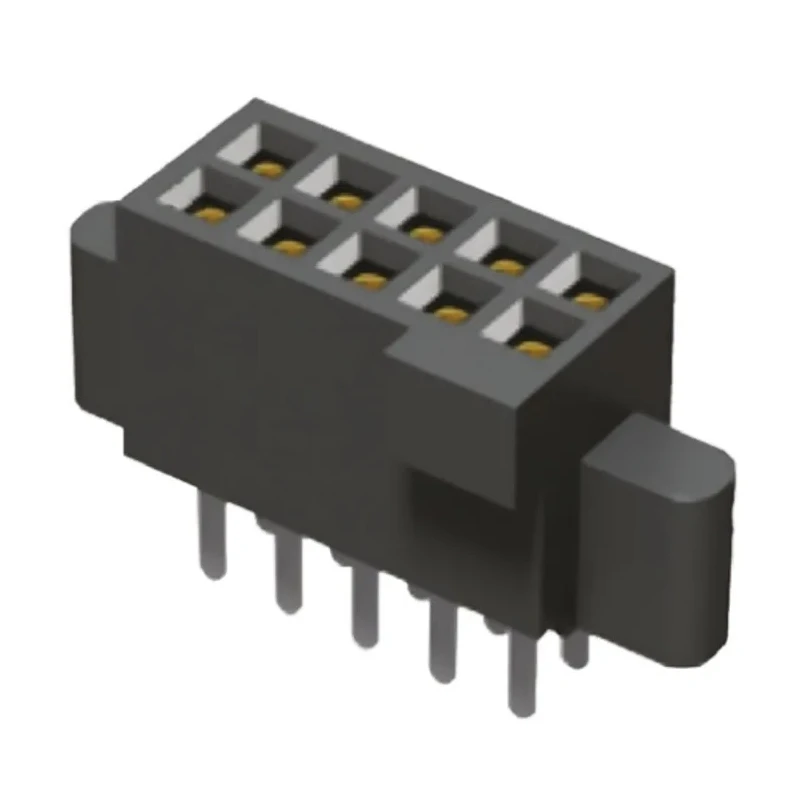

Samtec SFM Series Straight Through Hole PCB Socket 40-Contact 2 Row 1.27 mm Pitch Solder SFM-120-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 12A |
| Model | SFM-120-01-L-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SFM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board, Cable |
| Stacking Height | 12mm |
Key Features
- Constructed with Liquid Crystal Polymer housing for durability.
- Contacts fabricated from beryllium copper alloy with gold plating for excellent conductivity.
- Designed for through-hole mounting with straight orientation.
- Supports a current rating of 12A and voltage up to 350V.
- Operating temperature range from -55°C to 125°C ensuring performance in various environments.
- Stacking height measures 12 mm suitable for compact PCB designs.
- Connector system supports board-to-board and cable connections.
- 40 contacts arranged in 2 rows with a 1.27 mm pitch for precise alignment.
Product Description
Samtec SFM-120-01-L-D is a high-quality straight through hole PCB socket from the SFM Series, designed for reliable board-to-board connections with 40 contacts arranged in two rows at a 1.27 mm pitch.
The socket features a durable Liquid Crystal Polymer housing material and contacts made from a beryllium copper alloy plated with gold to ensure excellent electrical conductivity and corrosion resistance.
It is designed for through-hole mounting with straight orientation, supporting a current capacity of 12A and voltage rating of 350V, suitable for demanding electronic applications.
The operating temperature range of -55°C to 125°C makes it reliable in harsh industrial, laboratory, manufacturing, and electronics environments. The stacking height of 12 mm allows for compact PCB assembly, while the connector system supports both board-to-board and cable connectivity configurations.
The SFM Series sockets are compatible with TFM Series headers, FTS Series micro terminal strips, and FTSH Series micro headers, providing versatile integration options. Constructed with Liquid Crystal Polymer housing for durability.
Contacts fabricated from beryllium copper alloy with gold plating for excellent conductivity. Designed for through-hole mounting with straight orientation. Supports 12A current and 350V voltage ratings. Operating temperature range from -55°C to 125°C for versatile use.
Stacking height of 12 mm suits compact PCB designs. Connector system compatible with board-to-board and cable connections. 40 contacts in 2 rows with 1.27 mm pitch for precise electrical alignment.
This product is ideal for electronics manufacturing, industrial automation, test and measurement equipment, and other professional applications requiring reliable PCB Socket connectors.
Explore a wide range of electronic components and connectors from Samtec and other brands on EnvMart to support your electronics projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 12A and a voltage rating of 350V, making it suitable for demanding electronic applications.
The operating temperature range for this socket is from -55°C to 125°C, ensuring reliable performance in various environments.
It features a Liquid Crystal Polymer housing for durability and contacts made from beryllium copper alloy with gold plating for excellent conductivity.
This socket is designed for through-hole mounting with a straight orientation, allowing for easy integration into PCB designs.
The stacking height of this model is 12 mm, making it suitable for compact PCB designs.
The SFM-120-01-L-D has 40 contacts arranged in 2 rows with a 1.27 mm pitch for precise alignment.
This connector system supports both board-to-board and cable connections, providing versatile integration options.
Yes, it is compatible with TFM Series headers, FTS Series micro terminal strips, and FTSH Series micro headers.
This model features female contacts, which are standard for PCB socket applications.
The contact pitch for the SFM-120-01-L-D is 1.27 mm, allowing for precise electrical alignment.
The country of origin for this PCB socket is India.
This socket uses solder termination, which is common for secure connections on PCBs.
