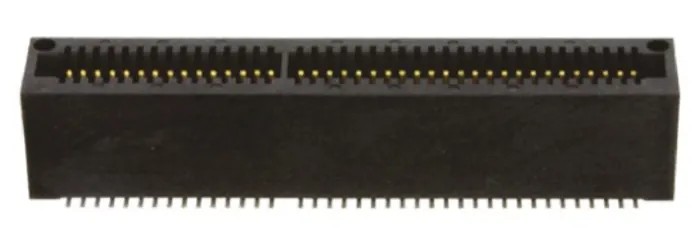

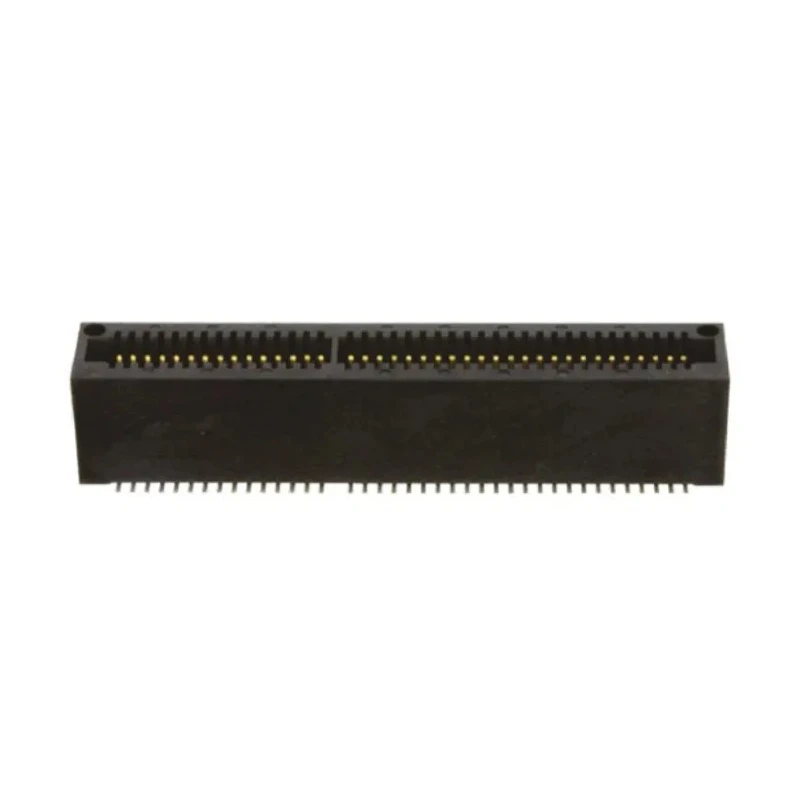

Samtec MEC1 Series Straight Edge Connector Female, Surface Mount, 60 Contacts, 1 mm Pitch, 2 Row, Solder Termination

Samtec MEC1 MEC1-130-02-L-D-A series Straight Edge Connector Female is a high-quality surface mount PCB edge connector designed for industrial and electronic applications. This connector offers 60 gold-plated contacts arranged in 2 rows with a precise 1 mm pitch, ensuring reliable signal transmission and power handling up to 2A and voltage endurance of 300V ac.

Built with a liquid crystal polymer housing, this connector demonstrates excellent durability and thermal stability with an operating temperature range between -55°C to 125°C. The contact pins are crafted from beryllium copper alloy and plated with gold over nickel to provide low contact resistance and corrosion resistance, enhancing long-term reliability.

It is specifically designed to accept edge cards with a thickness of 1.6 mm and utilizes a solder termination style for secure PCB mounting. The straight orientation and double-row configuration optimize PCB real estate while ensuring robust electrical connections. The MEC1 series connectors also include polarization features to prevent incorrect insertion and promote safety in complex electronic assemblies.

Typical applications include electronics manufacturing, industrial control systems, communication equipment, and other demanding environments where dependable edge card connectors are critical. This connector series offers compatibility with various edge card solutions, making it a versatile choice for engineers and designers.

The connector features a straight orientation for efficient board layout. It supports a current rating of 2A and voltage rating of 300V ac. The body is made of liquid crystal polymer housing for durability and heat resistance.

Contact material is beryllium copper alloy with gold over nickel plating for excellent conductivity. Designed for 1.6mm thick edge card with a two-row configuration. Operating temperature range from -55°C to 125°C ensures performance in harsh environments.

Solder termination type allows secure and stable attachment to the PCB. Fully polarized design prevents incorrect mating and ensures correct alignment. Explore more connectors and electronic components within the Edge Connectors category on EnvMart for comprehensive industrial solutions.
