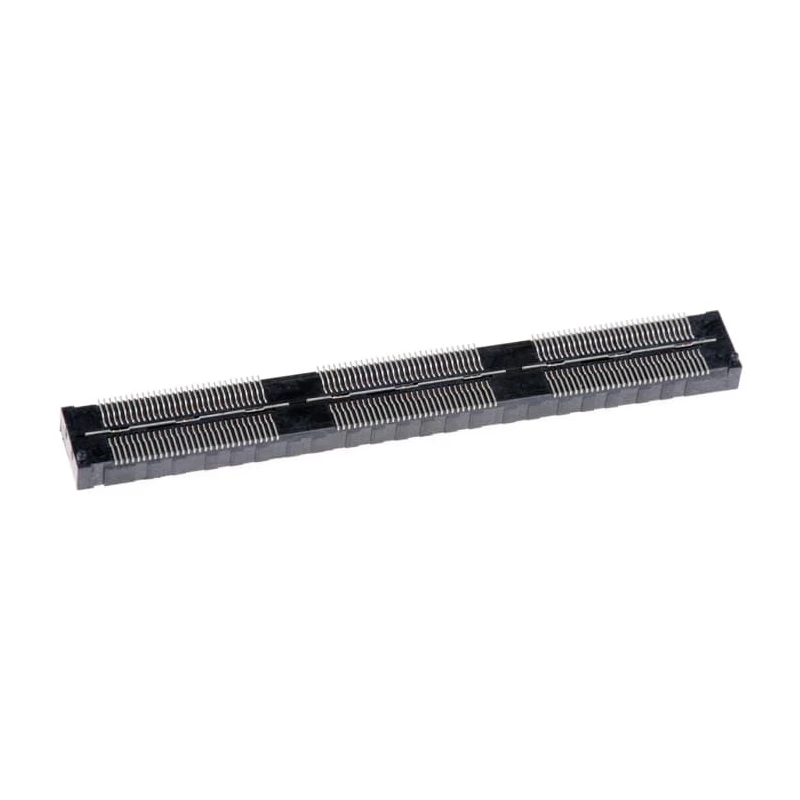

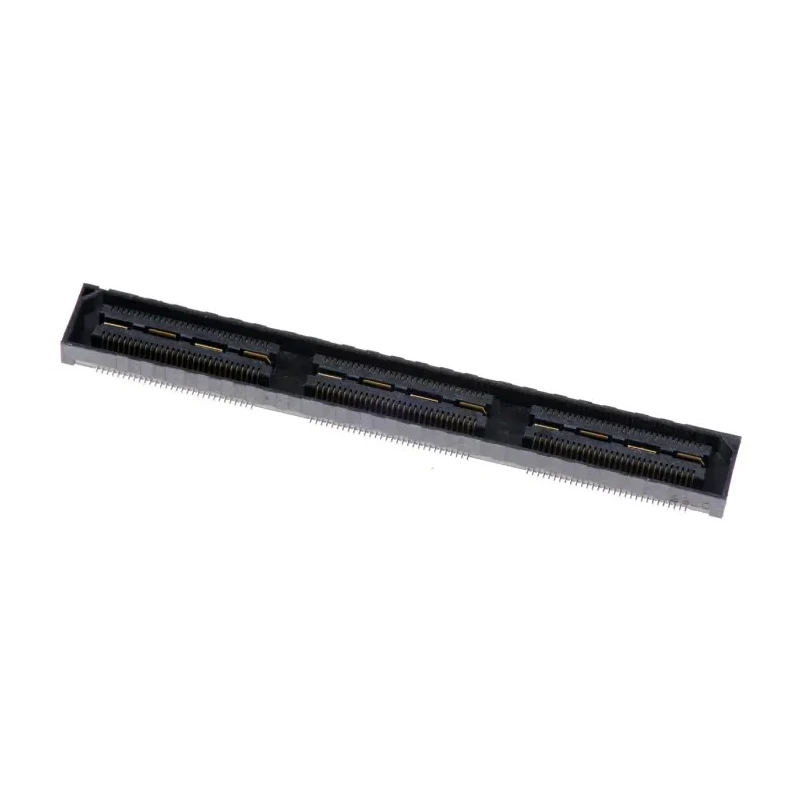

Samtec QSH Series Straight Surface PCB Socket 180-Contact 2 Row 0.5 mm Pitch Solder QSH-090-01-L-D-A-TR

Samtec QSH-090-01-L-D-A-TR is a Straight Surface Mount PCB Socket designed for board-to-board connections in high-speed electronic applications. Featuring 180 contacts arranged across 2 rows with a precise 0.5 mm pitch, this socket supports currents up to 12A and voltage ratings of 125V. The housing material is Liquid Crystal Polymer, providing excellent mechanical strength and thermal stability.

Contacts are crafted from bronze and finished with 0.25 µm gold plating to ensure superior electrical conductivity and long-term corrosion resistance. The socket incorporates alignment pins to facilitate accurate mating with corresponding QTH Series headers, creating a stack height of 5 mm when connected, suitable for compact assemblies.

The solder termination type guarantees reliable surface mount attachment onto PCBs, making it ideal for production environments focusing on high performance and consistency. Operating temperature ranges from -55°C up to 125°C, enabling use in diverse environmental conditions.

Applications for this PCB socket include industrial electronics, telecommunications equipment, computing hardware, and other high-speed data transmission systems requiring robust interconnectivity.

The socket ensures stable and high-speed ground plane connections. 0.5 mm pitch supports miniaturization in modern electronic devices. Gold plating enhances signal integrity and prevents oxidation. Compatible with QTH Series headers (stock number 767-8745) for seamless integration.

The robust design supports demanding industrial operating conditions. Explore more PCB Sockets and electronic components in our Electronics & Electricals category for your industrial and manufacturing needs.
