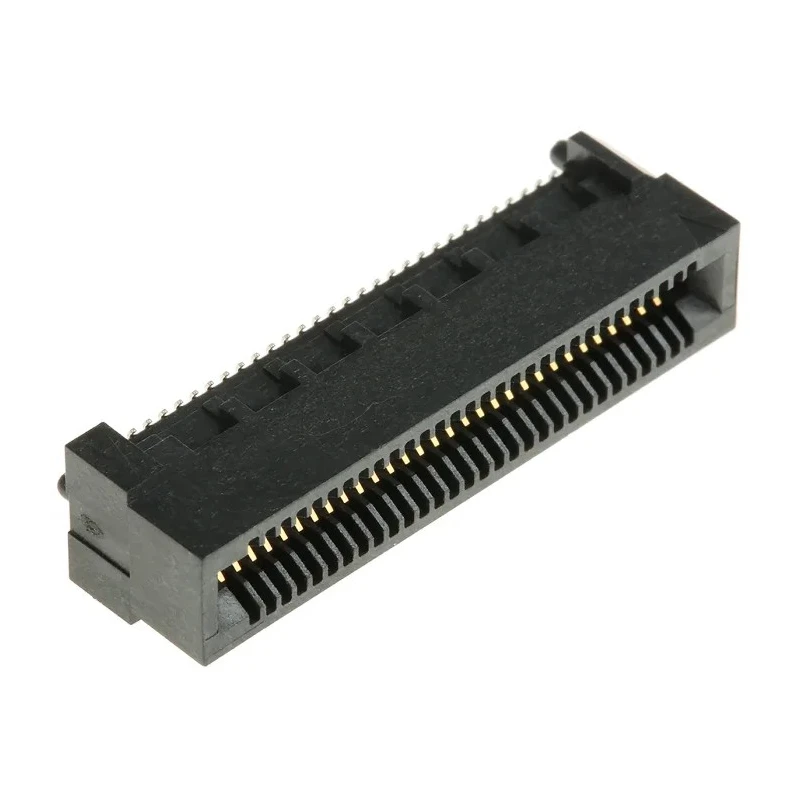

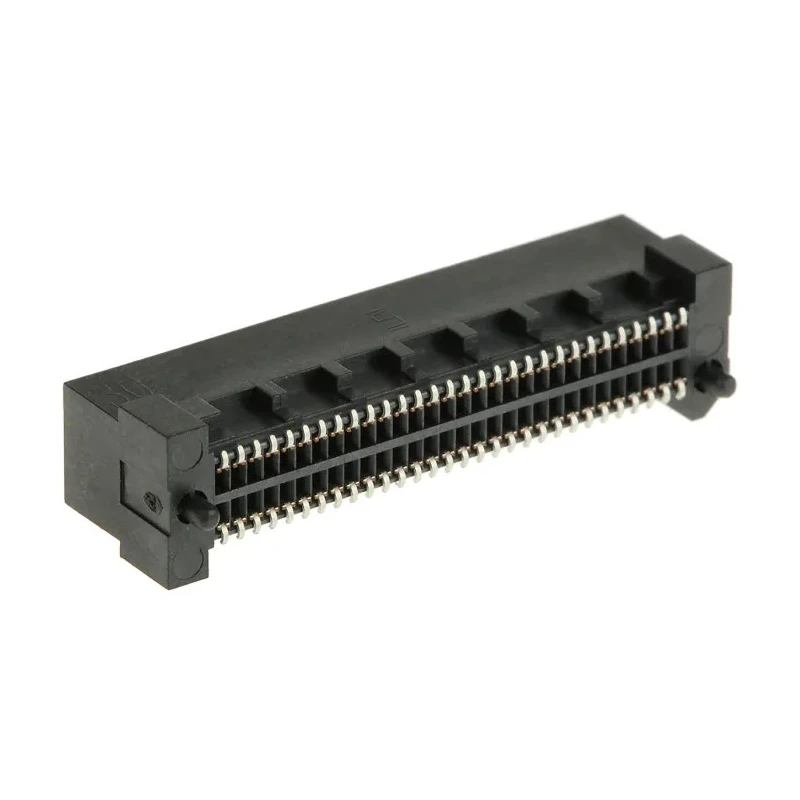

Samtec HSEC8-DV Series Straight Edge Connector Female, Surface Mount, 60 Contacts, 0.8 mm Pitch, 2 Row HSEC8-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.1A |
| Model | HSEC8-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | HSEC8-DV |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
| Card Thickness | 1.6mm |
Key Features
- Designed for 1.6mm thick cards with nominal insertion depth of 3.15mm.
- Features 0.8 mm pitch and 2 rows of contacts for compact connections.
- Contacts plated with 0.25 μm gold over nickel for reliable conductivity.
- Constructed from beryllium copper alloy with liquid crystal polymer housing.
- Operates reliably from -55°C to 125°C with a maximum current of 3.1A and voltage rating of 240V.
- Includes alignment pin in design for precise card positioning.
- Termination type is surface mount to facilitate PCB assembly.
- Suited for PCIe card applications in industrial and electronic equipment.
Product Description
Samtec HSEC8-DV Series Straight Edge Connector (model HSEC8-DV) is a high-quality female edge connector designed for surface mounting on PCBs. This connector supports 60 contacts arranged in 2 rows with a pitch of 0.8 mm, making it ideal for compact card-edge connections requiring high reliability.
Constructed with beryllium copper alloy contacts plated with 0.25 μm gold over nickel, this product ensures excellent electrical conductivity and corrosion resistance. The liquid crystal polymer housing provides mechanical strength while maintaining thermal stability within an operating range of -55°C to 125°C.
The connector is designed to accommodate PCIe cards with a card thickness of 1.6 mm and a nominal insertion depth of 3.15 mm, enabled by an alignment pin that ensures precise and secure card insertion. The maximum current and voltage ratings are 3.1 A and 240 V respectively, suitable for a range of industrial, laboratory, and commercial electronic applications.
Its surface mount termination type facilitates efficient mounting on printed circuit boards in automated manufacturing settings. This edge connector series is widely used in electronic components assemblies, power connectors, and data communication interfaces requiring durable, compact connection solutions.
Designed for 1.6mm thick cards with nominal insertion depth of 3.15 mm. 60 contacts arranged in 2 rows with 0.8 mm pitch. Contacts plated with 0.25 μm gold over nickel for excellent conductivity. Beryllium copper alloy contact material with liquid crystal polymer housing.
Operating temperature range from -55°C to 125°C. Rated for 3.1 A current and 240 V voltage. Surface mount termination for PCB assembly. Includes alignment pin for precise card insertion.
This Samtec HSEC8-DV Series Straight Edge Connector is ideal for electronics manufacturing industries, laboratory equipment, communication devices, and other technical applications where reliable high-density card edge connection is required. Browse the Electronics Components category at EnvMart for more quality connectors and related products.
